• Fully upholstered seat
• Seat basis is 2" of high density foam on a 1" thick assembled frame
• Legs are fabricated from 5/16" plate steel and include a curved profile with a square mounting plate. The bottom of each leg is fitted with a threaded weld nut 1-7/8" black leveling glide.
• Oak post legs: 3-1/2" x 3-1/2" with a 45˚ champher bottom edge. Post are attached via 5/16" - 18 bolt, washer and propeller nut.

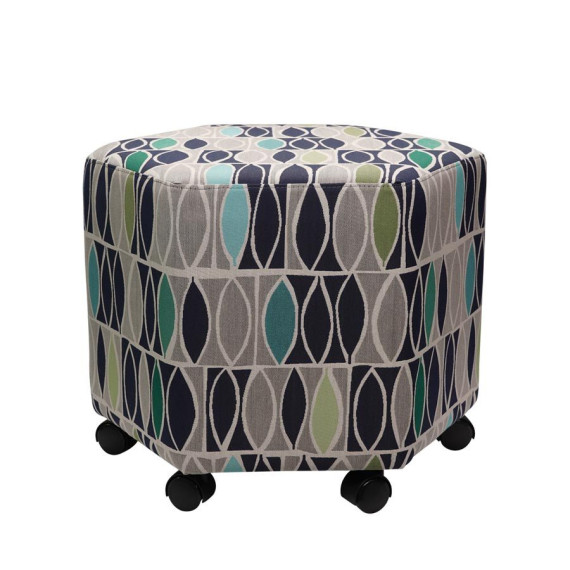

• Casters are mounted to the base with a square mounting plate. FTD-20 models receive (5) 50mm casters, all other models receive 75mm casters.
• Available in round, pentagonal, square, rectangular, crescent and 30˚ curve shapes.
• FTC-30 is designed to conform to the concave side of a Drift curved mobile bookcase, 90˚ Cirrus curved table and Cheesewall Privacy divider.
• FTC-60 is equivalent of (2) FTC-30's (60˚ curve).

Want it with casters or oak post legs? Add the following suffix to the model number...

-4C for four casters
-5C for five casters (pentagon, FTC-60, round, crescent)
-4W for four oak post legs
-5W for five oak post legs (pentagon, FTC-60, round, crescent)

Full Time Ottoman Overall Dimensions
Seat height: All 18"

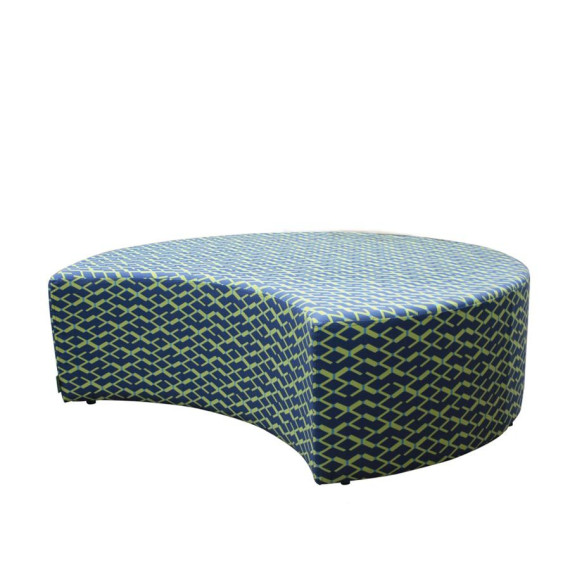

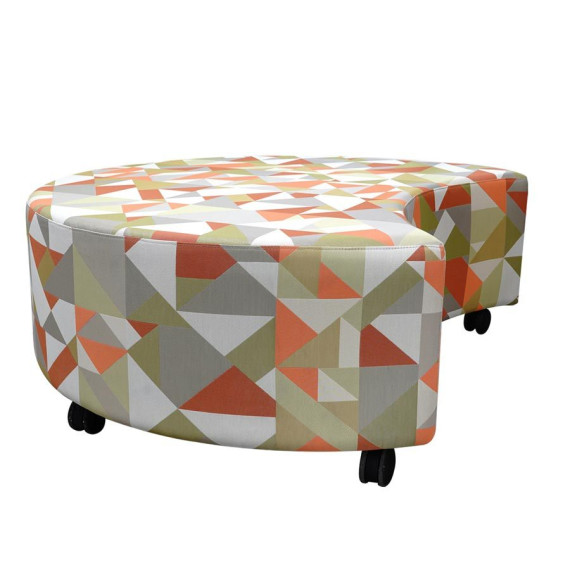

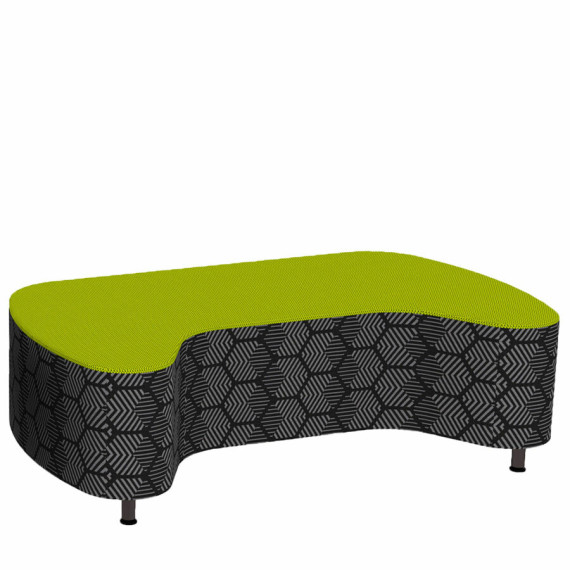

Crescent:

• SCO-0020 - 20" diameter
• SCO-0030 - 30", diameter
• SCO-0036 - 36" diameter

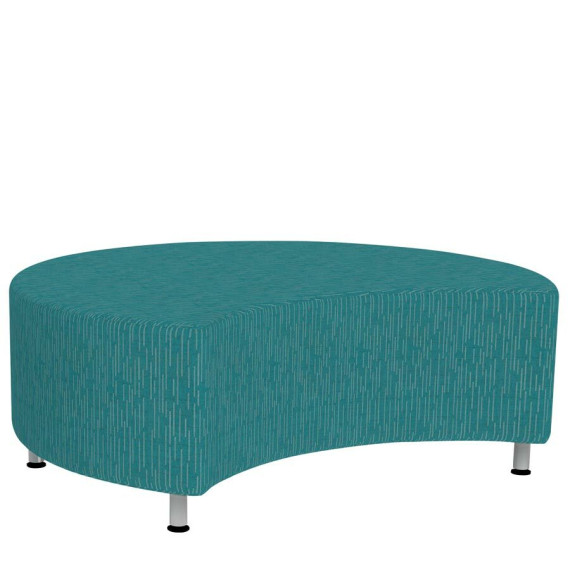

• SCO-0051 - 51" diameter

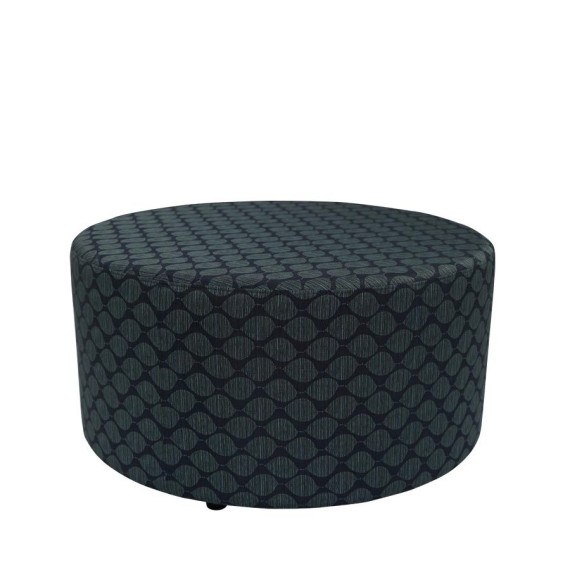

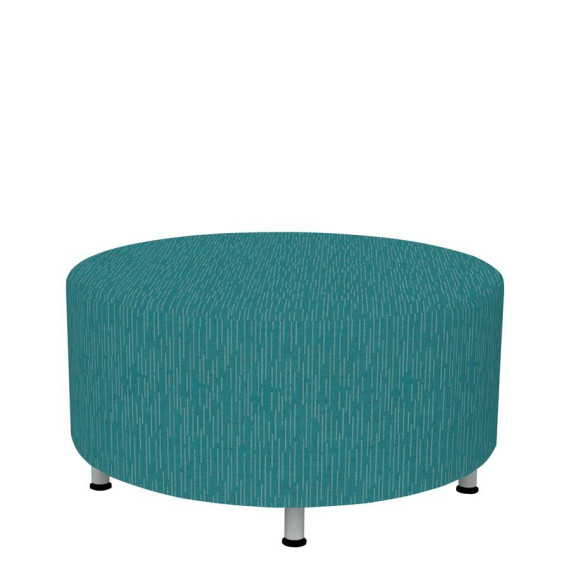

Round:

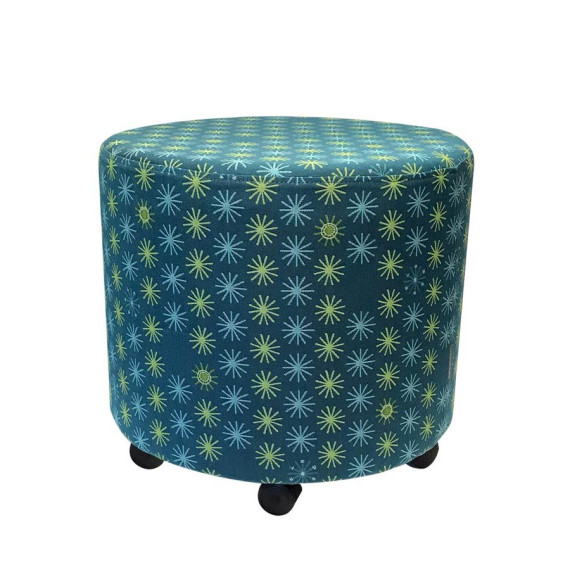

• FTD-20 - 20" diameter
• FTD-30 - 30" diameter
• FTD-36 - 36" diameter

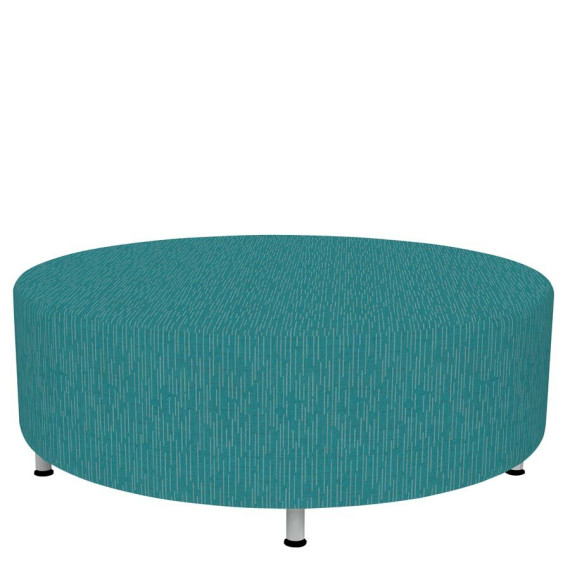

• FTD-51 - 51" diameter

Half Round:

• FTHD-48 - 24"D x 48"W

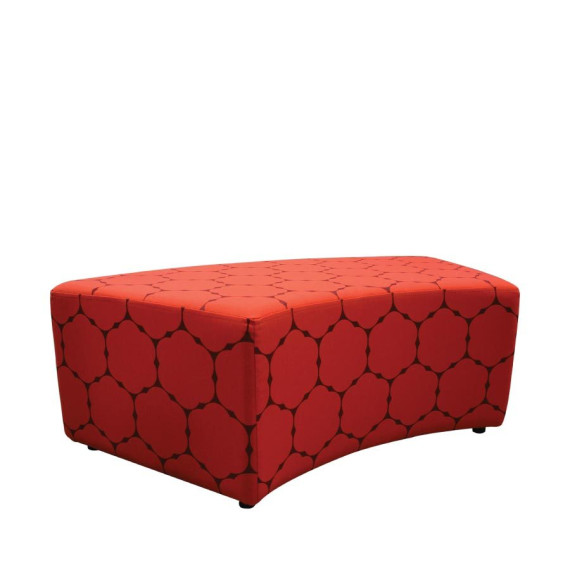

Curve:

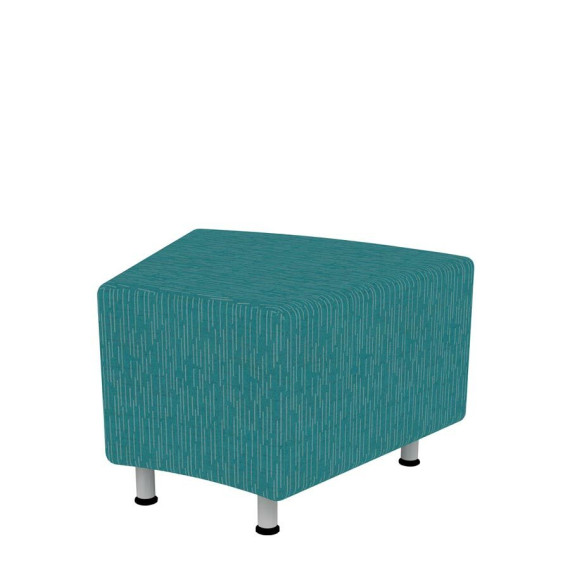

• FTC-30 - 30˚ curve, 54" radius, 24" return - Nests inside curved Drift (2), Cirrus 90 (3) & Cheesewall (3)
• FTC-30-7224 - 30˚ curve, 72" radius, 24" return - Nests inside Cirrus 60 (2), Indy table (2)
• FTC-30-7824 - 30˚ curve, 78" radius, 24" return - Nests outside Cheesewall (3)
• FTC-30-9624 - 30˚ curve, 96" radius, 24" return - Nests outside curved Drift (2)

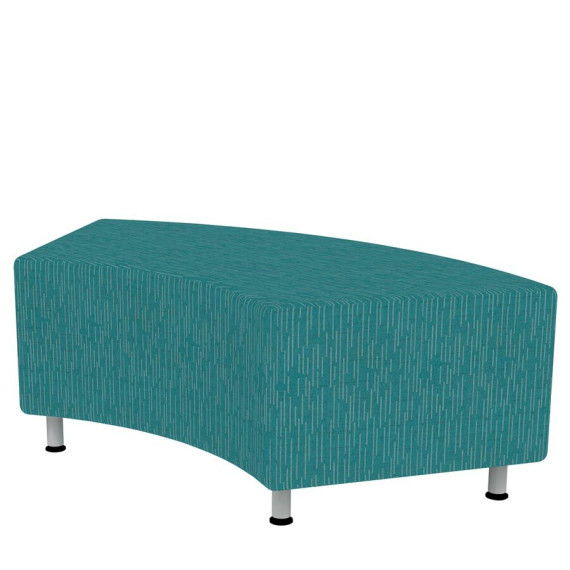

• FTC-60 - 60˚ curve, 54" radius, 24" return- Nests inside curved Drift (1)
• (x) Number of ottomans required for full coverage.

Square:

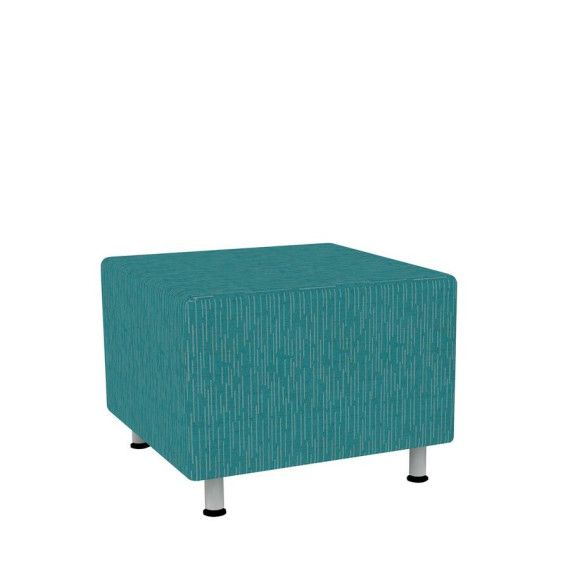

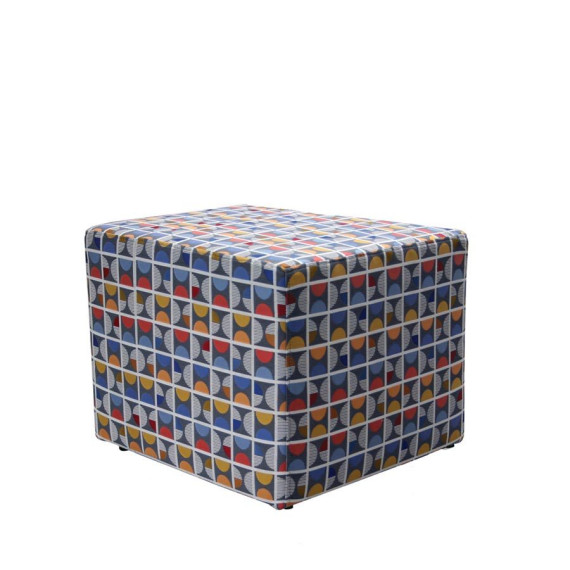

• FTS-2424 - 24" x 24"
• FTS-3636 - 36" x 36"

Pentagon:

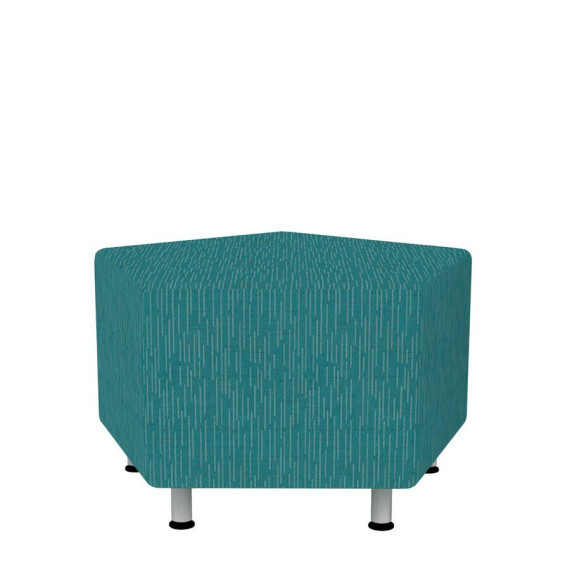

• FTP-18 - 18" returns 28"D x 30"W
• FTP-24 - 24" returns 38"W x 40"L

Rectangle:

• FTR-1836 - 18"D x 36"W
• FTR-2436 - 24"D x 36"W

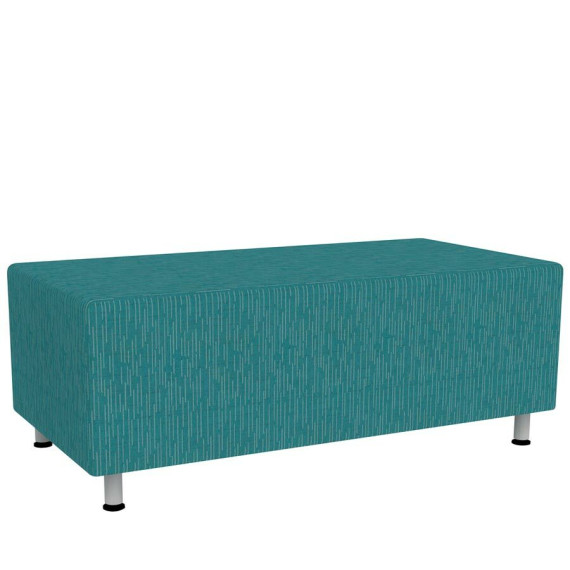

• FTR-2448 - 24"D X 48"W

Connectivity Option

• The "Duet" power unit is the recommended component for adding a connectivity option to your ottomans. The Duet features 1 AC connection and 1 Dual USB port (2 amps each). The panel is mounted through the face plate. Face plate is available in White, Silver and Black. Power cable length is 72" or 120". Connectivity panels can only be mounted on the flat vertical surfaces of Full Time ottomans.

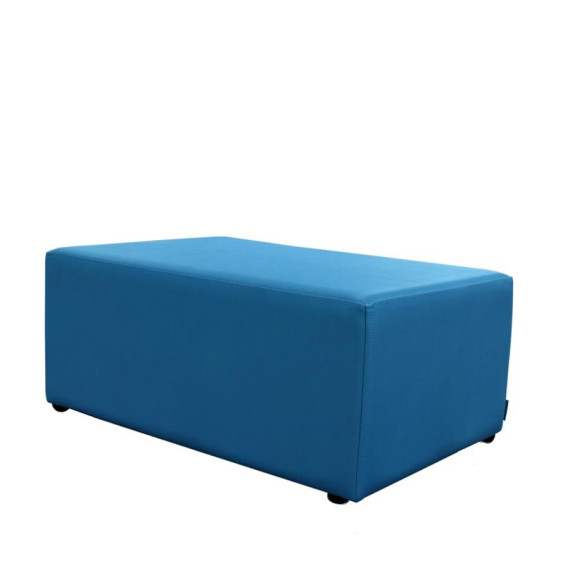

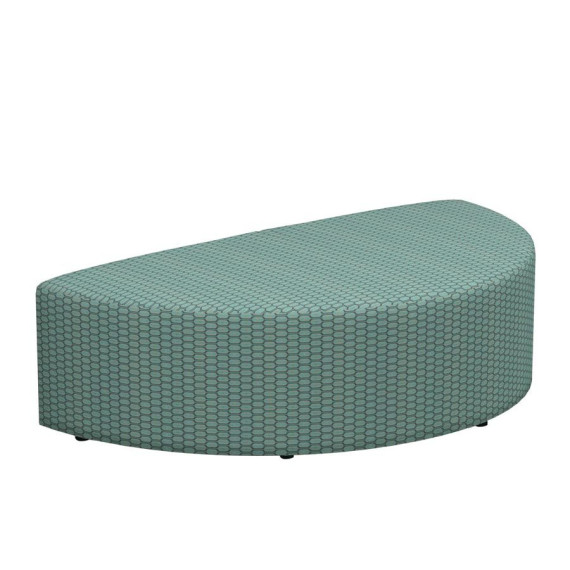

Full Time JR.

• Fully upholstered seat is 16" H.
• Seat basis is 2" of high density foam on a 1" thick assembled frame
• Fitted with ABS self-leveling glides.
• Available in round, pentagonal, square, rectangular, crescent and 30˚ curve shapes.
• FTC-30 is designed to conform to the concave side of a Drift curved mobile bookcase, 90˚ Cirrus curved table and Cheesewall Privacy divider.
• FTC-60 is equivalent of (2) FTC-30's (60˚ curve).

Full Time Halfback

• Full upholstered seat fabricated in square, rectangular and 60-degree curve shapes. Seat height is 18". Seat base is 2" of high density foam. Seat back is 5" at its base and tapers to 3.5" of foam at the top. The seat back on square and rectangular models is built on a 1" thick interior rectangular wooden panel. Seat and back on curved models is joined by two concealed posts.

Overall Dimensions
Seat height: All 16"
Crescent: 20", 30", 36", 51"
Diameters Round: 20", 30", 36", 51"
Diameters Half round: 24"D x 48"W, 28"D x 55"W
Curve: 30˚ curve 25"D x 28"W, 60˚ curve 28"D x 54"W
Square: 36" x 36"
Pentagon: 18" returns 28"D x 30"W, 24" returns 38"W x 40"L
Rectangle: 18"D x 36"W, 24"D x 36"W
Top thickness: 1"

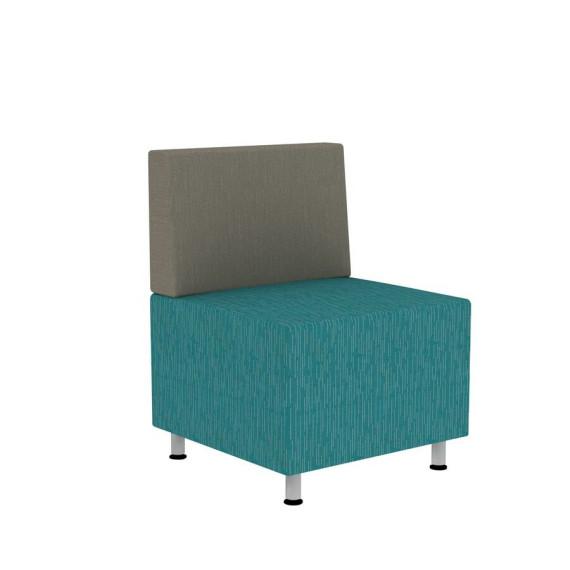

Overall Dimensions for Square Halfbacks
Depth x Width: 24" x 24"
Seat Height: 18", Junior 16"
Overall Height: 33"

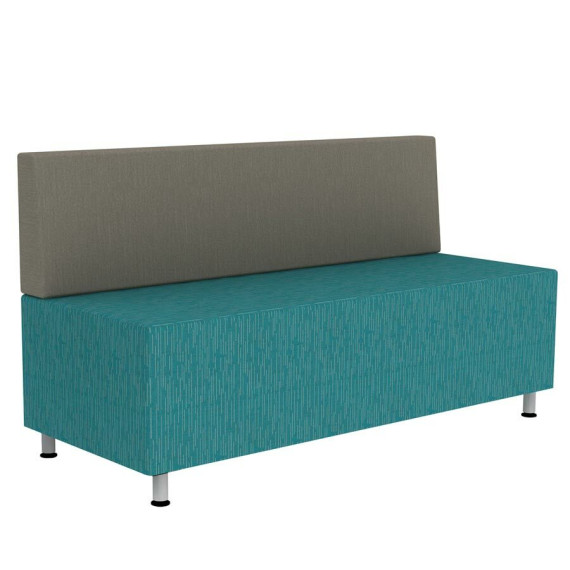

Overall Dimensions for Rectangle Halfbacks
Depth x Width: 24" x 36", 24" x 48", 24" x 60"
Seat Height: 18", Junior 16"
Overall Height: 33"

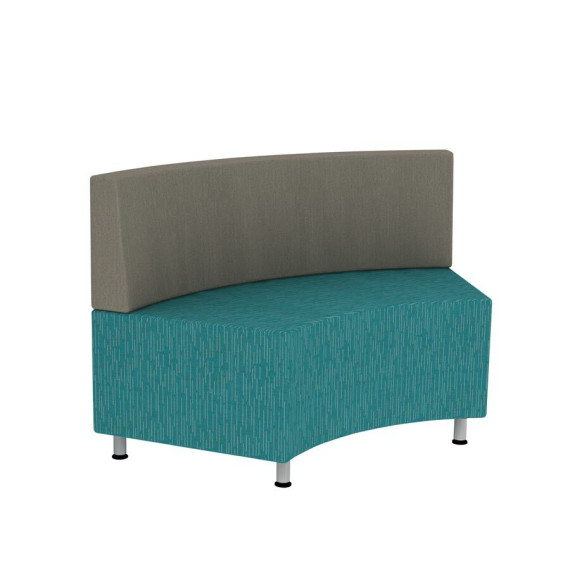

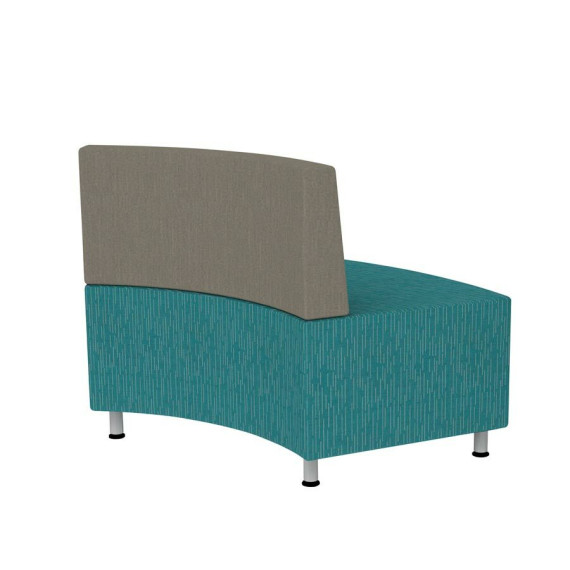

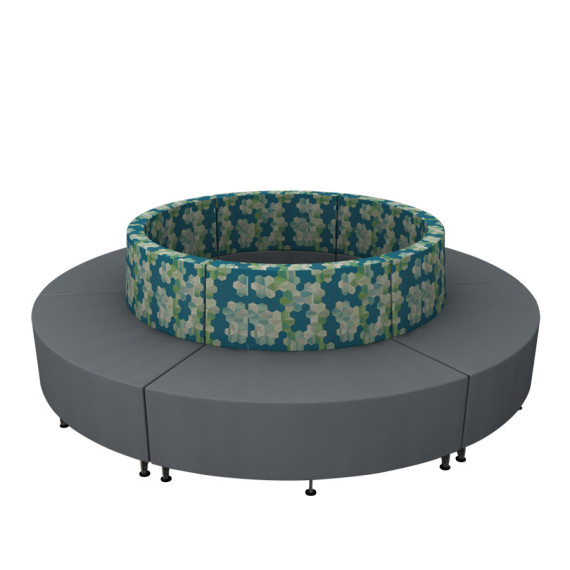

Overall Dimensions for 60-degree Curve Halfbacks
Remember, mathletes...on a curve based on a 60-degree angle, the width of the curve is equal to the radius. That's right! the radius defines one side of an equilateral triangle.
Overall Width x Depth: 54" x 28.2", 72" x 30.6"
Seat height: 18", Junior 16"
Overall Height: 33"

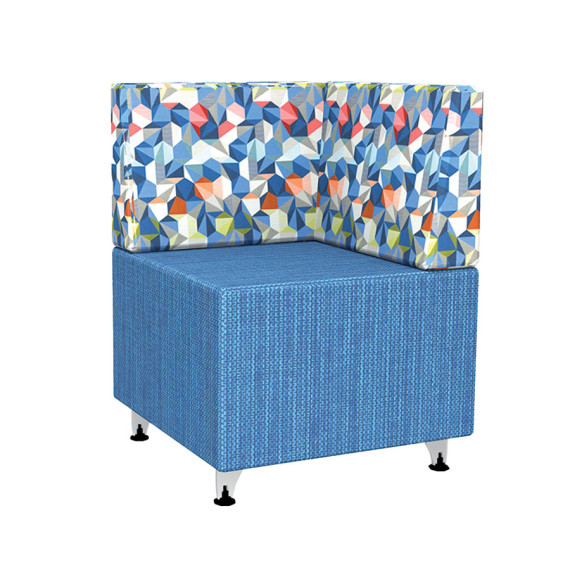

Overall Dimensions for Square Corner Halfbacks
Depth x Width: 24" x 24"
Seat Height: 18", Junior 16"
Overall Height: 33", Junior 31"

Upholstery note: fabric patterns that are horizontal may not line up with adjacent furniture due to the backs being curved and tapered.

Full Time Quarterback

• Seat Quarter Back is a 9” tall fully upholstered seat back.
• Seat back is 6” of high density foam at its base and tapers up to 3.5” of foam at the top. The seat back is built on a 1” thick rectangular wooden panel. Seat and seat back are joined by internal posts. Customer specifies upholstery fabric.

Full Time Quarterback JR.

• Fully upholstered seat is 16" H.
• Seat base is 2" of high density foam on a 1" thick assembled frame
• Fitted with ABS self-leveling glides.

Overall Dimensions
Seat height: 16"
Overall height: 31"
Diameter: 36"
