eWall - mediatechnologies

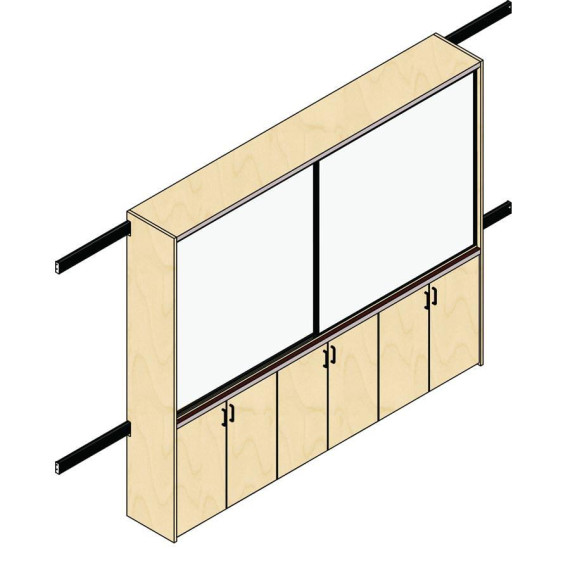

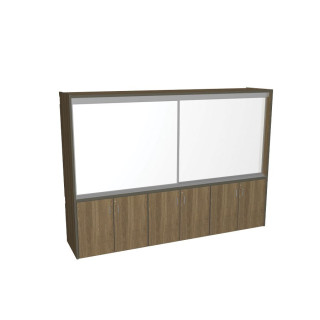

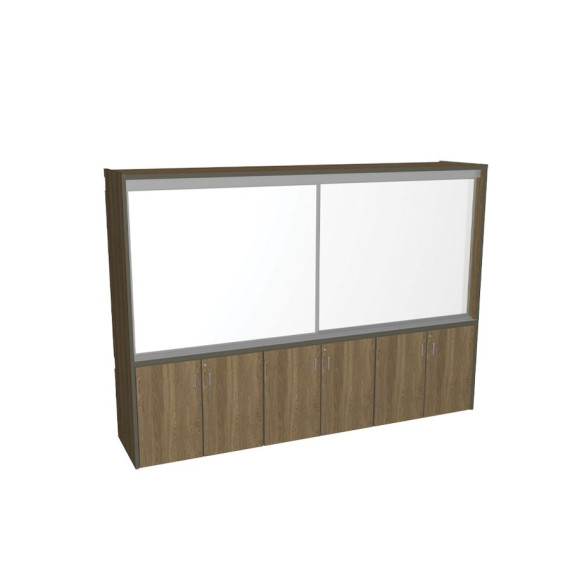

BCS-001 Base cupboard storage with marker boards, upper storage

Add to My Project Board

Log in or create an account to create a project board.

eWall - mediatechnologies

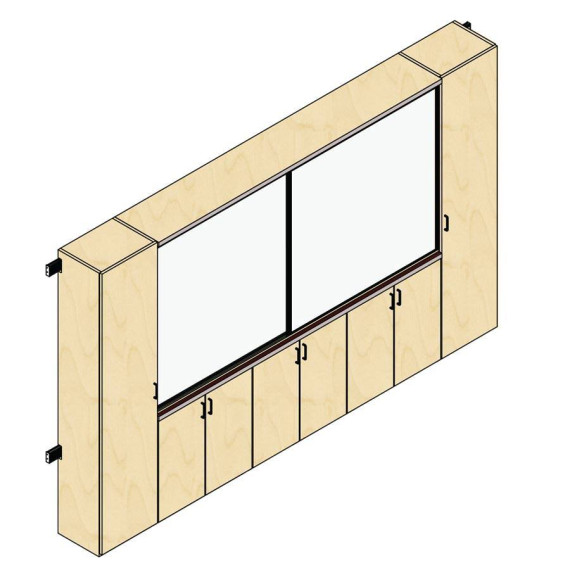

BCS-002 Base cupboard storage with marker boards, upper storage and tall cabinets

Add to My Project Board

Log in or create an account to create a project board.

eWall - mediatechnologies

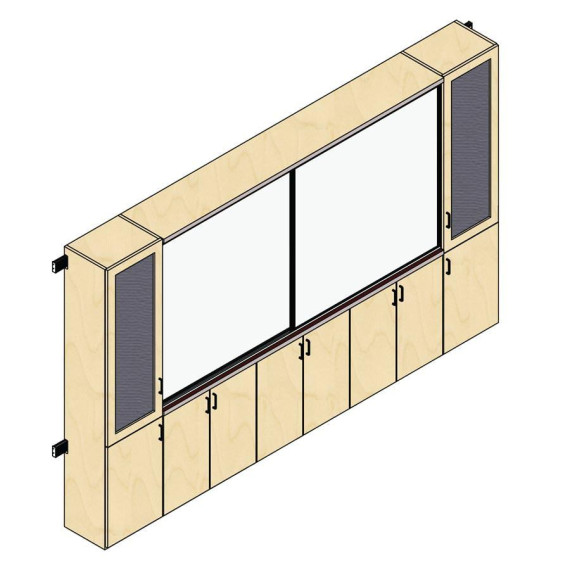

BCS-003 Base cupboard storage with marker boards, upper storage and tall cabinets with tack boards

Add to My Project Board

Log in or create an account to create a project board.

eWall - mediatechnologies

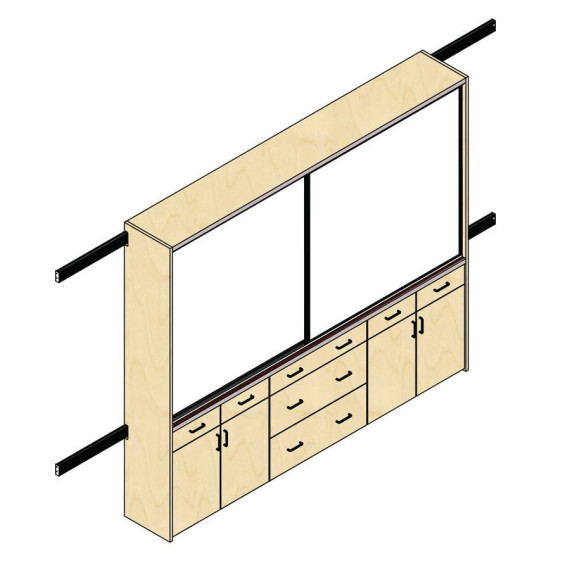

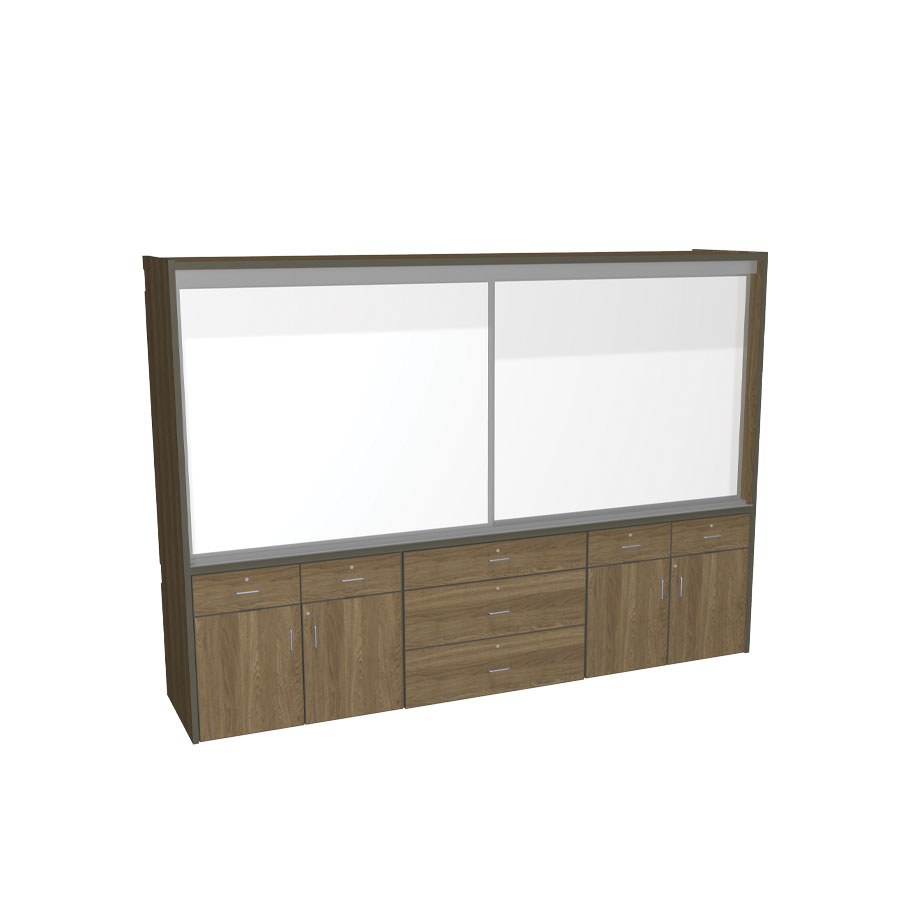

BCSD-001 Base drawer and cupboard storage with marker boards and upper storage

Add to My Project Board

Log in or create an account to create a project board.

eWall - mediatechnologies

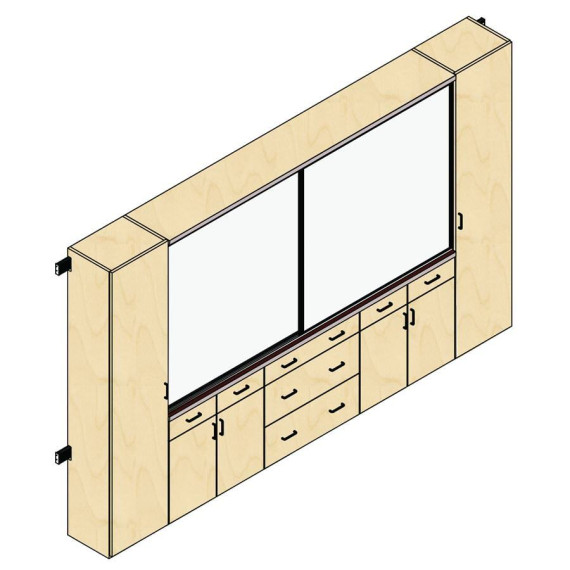

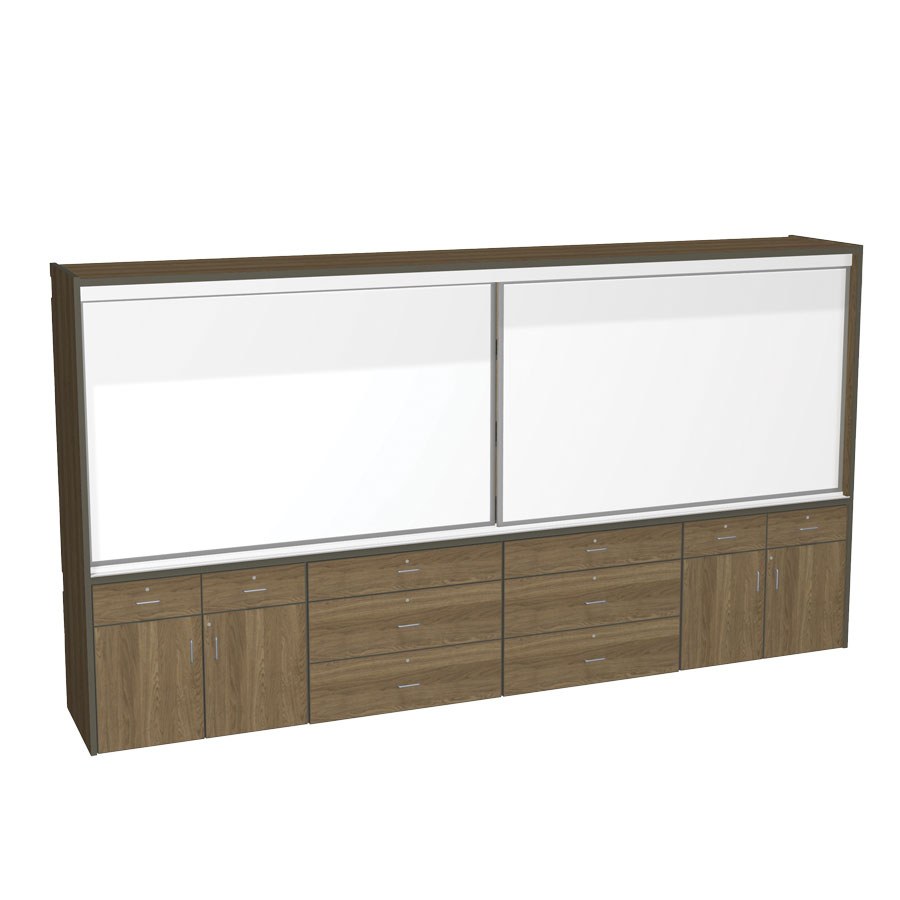

BCSD-002 Base drawer and cupboard storage with marker board, upper storage and tall cabinets

Add to My Project Board

Log in or create an account to create a project board.

eWall - mediatechnologies

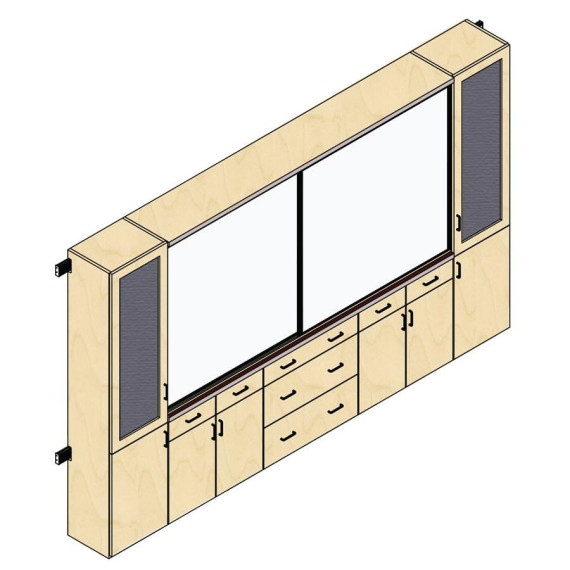

BCSD-003 Base drawer and cupboard storage with marker board, upper storage and tall cabinets and tack boards

Add to My Project Board

Log in or create an account to create a project board.

eWall

By Elements

Smart.

eWall cabinets are pretty smart. (Well, not the actual cabinets. Cabinets are neither smart or…well…not smart – they’re just cabinets.) What I mean to say it that people who choose to use eWall cabinets are smart.

In any classroom, floorspace must be allocated in front of the whiteboard and in front of the storage casework. That takes up a sizeable chunk of space that could be used for other things like…students.

eWall combines your storage and whiteboard so you can dramatically reduce the amount of floorspace allocated to perimeter fixtures. This frees up space for more desks.

Our eWalls are available in a variety of sizes to accommodate any environment. They can also be customized with any combination of base, wall and tall cabinets and tiles. Elements-style, track-mounted eWall units are available in 14”, 20” and 24” depths.

Now that’s smart.

See Full Description

Videos
AutoCAD
List Price Sheets
Instructions
Warranty Information

  • Cabinet construction available with 3/4" thick NU Green engineered wood side panels, sub-tops, vertical dividers and shelves. Base cabinet bottoms and all adjustable shelves over 36" in length are 1" thick NU Green engineered wood.
  • Dowel construction meets AWI Premium Standards.
  • 1/4" thick cabinet backs: capture in cabinet grooves.
  • Dowel pinned structural 3/4" stringers add rigidity.
  • Factory installed cabinet hangers: fully adjustable. Rated at 220 lbs. each. Recommended maximum load capacity for base cabinets with a standard top shall be 100 lbs. per linear foot.
  • Full 4-sided drawer boxes use 3/4" thick material with TFL finish and PVC edges.
  • Box finish is applied to all exterior cabinet faces; Available in TFL (melamine), HPL (laminate), Oak or Maple veneer.
  • eWall mounts to upper and lower track.
  • Marker boards slide on a two segment track.
  • Sliding marker boards reveal adjustable shelves.

Finishes

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

H1 5 Knuckle
Standard Door Hinges Selections

OPTIONS: 3

Hinge options options for Definitions, Elements and Rubix cabinets.
