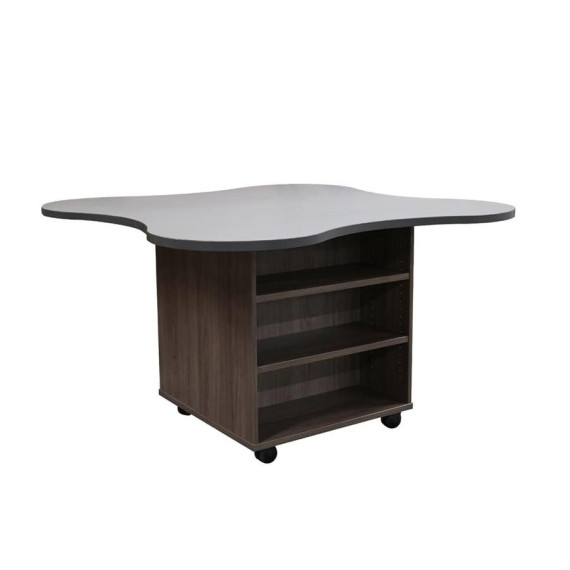

Top: WBXI-C5454CL; Cabinet: WBXI-OS3036-TT-MOB

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

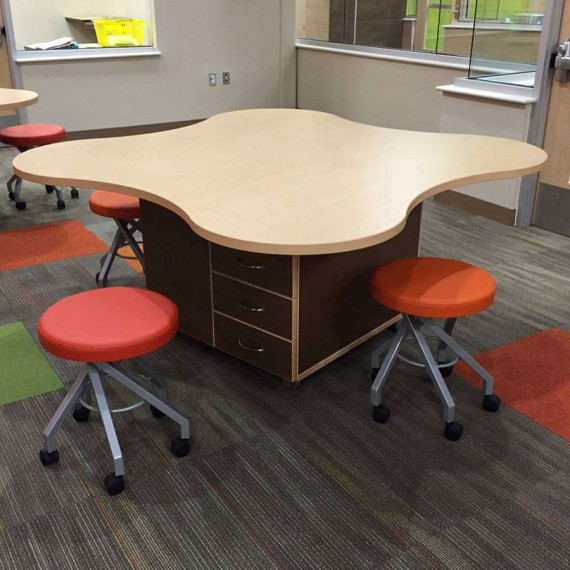

Sherwood Elementary School

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

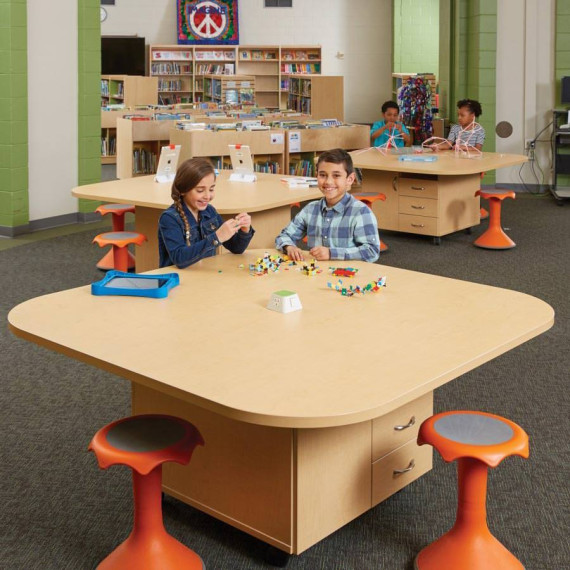

Square top with rounded corners and Connectivity

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

The boss really likes this picture. His name is Jake. So we call this shot "Jakerspace"

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

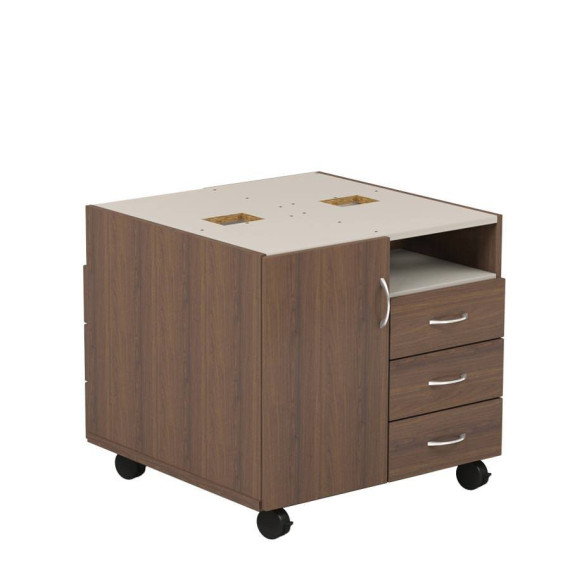

WBXI-CS3D3029

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

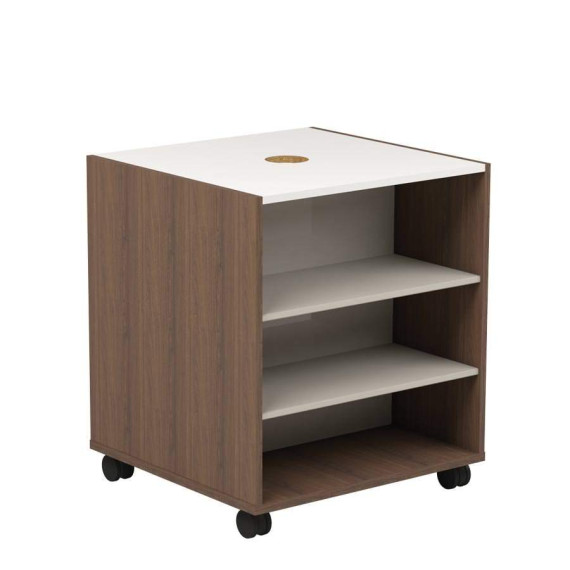

WBXI-OS3036

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

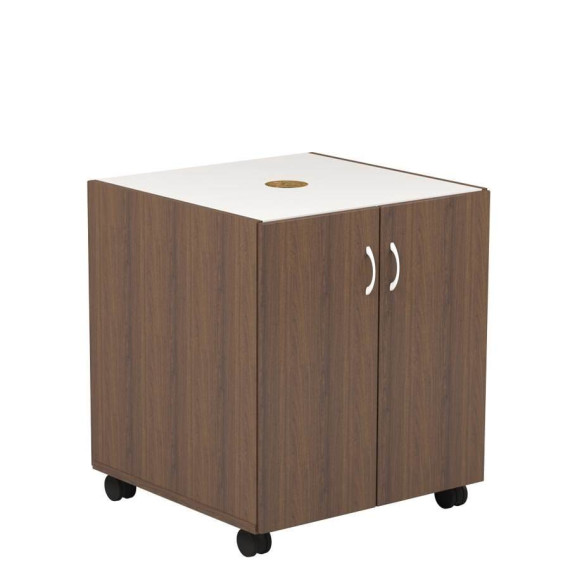

WBXI-CS3036

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

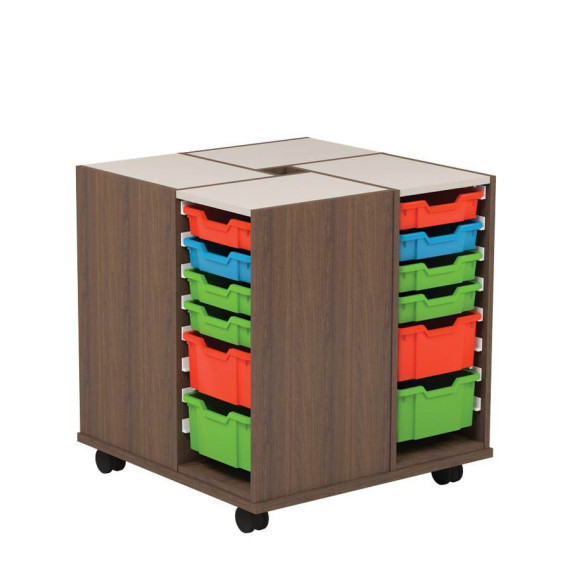

WBXI-OT3036 (totes sold separately)

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

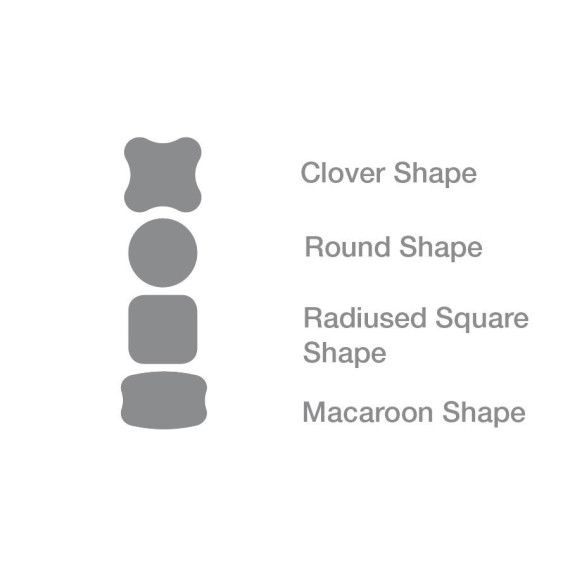

Work+Box Table top shapes

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island

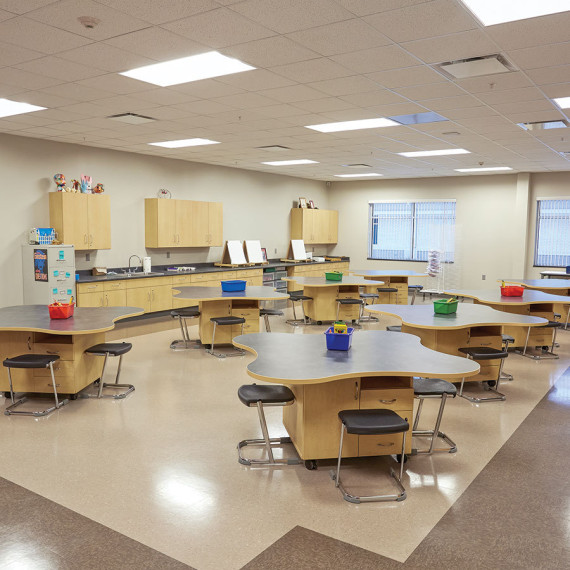

Our Clover table created so much excitement, we decided to expand the possibilities for you. Plus, we thought we would let you put together your own table....Choose from four shapes and multiple sizes of worksurface. All worksurfaces are 1-1/4” high pressure laminate with PVC edge-banding or 1-3/4" maple butcher block top. Choose from four 2-sided mobile cabinet configurations, each available in 29”, 36” and 42” heights. Locking casters are standard. Cabinet available in high pressure laminate or melamine. Top consists of laminate of your choice, with 3mm PVC edging. The top sits upon a cupboard/drawer cabinet base that awaits your choice of melamine or high pressure laminate finish. Each table is equipped with (4) casters for mobility. Check out Flora Elementary School to see an example of use. The Work+Box Family of tables is perfect for your makerspace, STEM and STEAM classrooms.

See Full Description

Cut Sheets
AutoCAD
Revit
List Price Sheets
Hi-Res Images

  • Clover shaped top consists of contoured work surface 1-1/4" thick, three-ply 45# particle board construction with .050" high pressure laminate top surface and .030" phenolic backer.
  • Edge is 3mm PVC with a 1/8" radius top and bottom.
  • Cabinet base is constructed of 3/4" thick three ply particleboard with either high-pressure laminate or melamine throughout, with exception of base, which is 1-1/4" thick. Cabinets are assembled using glue and dowel joinery.
  • Cupboard door is constructed of 3/4" thick, three-ply particle board with high-pressure laminate or melamine faces and edged on all sides with 3mm PVC.
  • Door hardware includes loop pulls (P2) and concealed hinges (H3), fully adjustable in all 3 axes. Door lock options are available
  • 1 adjustable cupboard shelf is 3/4" thick three ply engineered wood with high-pressure laminate faces. The exposed edges are edged with 3mm PVC. Shelves are adjustable on 32mm increments.
  • Full 4-sided drawer boxes use 3/4" thick material with high pressure laminate or melamine and 3mm PVC edges. Drawers feature loop pulls (P2) and full extension slides. Drawers are non-locking.
  • Stop-tilt-remove tote rails are used on open tote storage units. TOTR Toto Tote Rails are mounted to allow for the use of TOT03-_ & TOT06-_ Toto Totes. Rails are spaced so that one 6"H TOT06-_ Toto Tote fits in place of two 3"H TOT03-_ Toto totes. Totes are sold separately.
  • (4) 3" Locking casters are standard. Casters are mounted to bottom through a steel plate using 4 wood screws each.
  • Wire drop accepts 3" round electrical units

Pick your top shape: HPL: Clover, Round, Radiused square or Macaroon. Butcher Block: Round and Radiused Square.

Note: Butcher block tops are available in clear finish. Quantities of 12 or more are available in additional colors. Contact the factory for details.

Overall Dimensions
Clover Shape Depths: 48", 54", 60"
Clover Shape Widths: 48", 54", 60"
Round Diameters: 48", 54", 60"
Radiused square Depths: 48", 54", 60"
Radiused square Widths: 48", 54", 60"
Macaroon Depth: 54"
Macaroon Width: 72"

Pick your cabinet: Cupboard, drawer and open storage; Open storage;Cupboard storage; Open tote storage (totes sold separately)

Overall Dimensions
Depths: 30" (33" for Open Tote Storage)
Width: 30" (33" for Open Tote Storage)
Height: 29", 36", 42"

Open Tote Storage Tote Capacity based on TOT03-_ Toto Tote

  • 29"H Unit - 6 totes per face (4 faces), 24 totes total
  • 36"H Unit - 8 totes per face (4 faces), 32 totes total
  • 42"H Unit - 10 totes per face (4 faces), 40 totes total

Note: One 6"H TOT06-_ Toto Tote fits in place of two 3"H TOT03-_ Toto Totes.

Finishes

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
