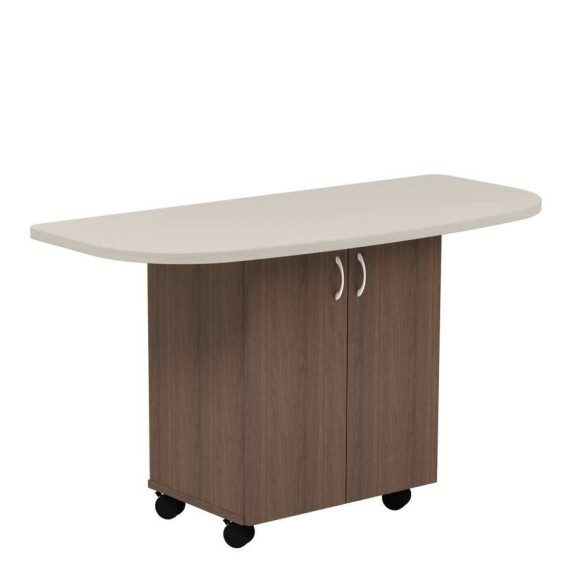

Work+Box Dock - mediatechnologies

WBXD-C2760-36-CS-LL-MOB

Add to My Project Board

Log in or create an account to create a project board.

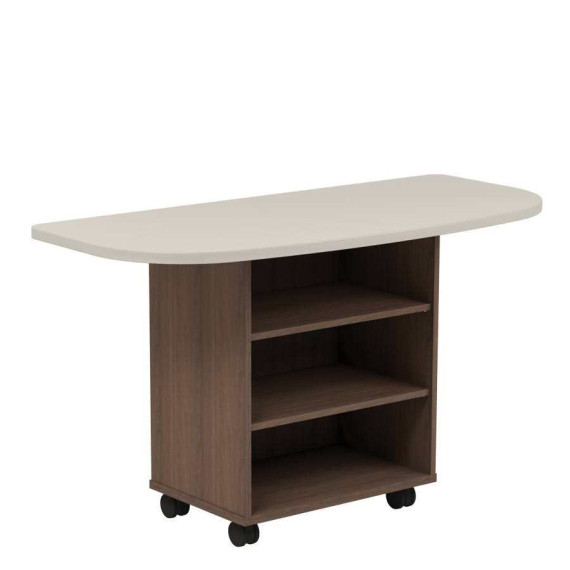

Work+Box Dock - mediatechnologies

WBXD-C2760-36-OS-L-MOB

Add to My Project Board

Log in or create an account to create a project board.

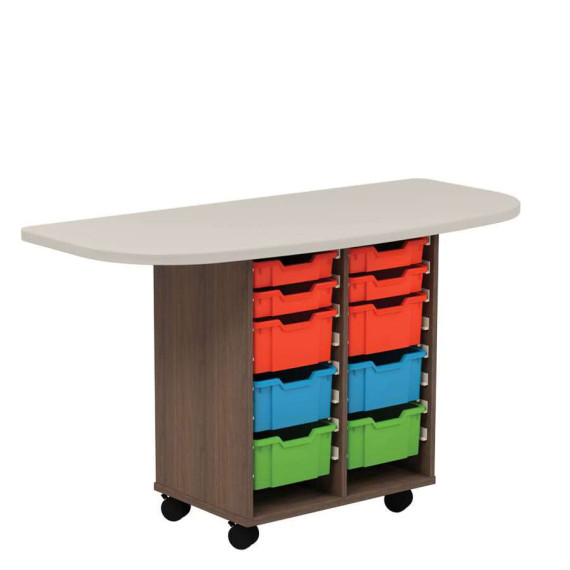

Work+Box Dock - mediatechnologies

WBXD-C2760-36-TOTO-L-MOB (Totes sold separately)

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Dock - mediatechnologies

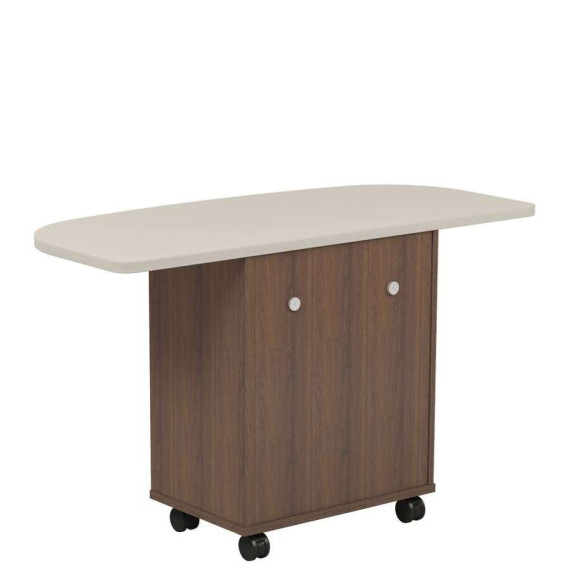

Rear of unit with magnets for docking to other tables

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Dock

Combine - Separate - Store...that is the concept. Combine tables for larger group work. Separate tables for smaller group work. Store the tables around the perimeter, ideally beneath some beautiful elements or transition upper wall storage.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • Great for classrooms and makerspace areas D-shape 1-1/4” thick high pressure laminate worksurface with PVC edge-banding.
  • Choose from three single-sided mobile cabinet configurations, each available in 29”, 36” and 42” heights.

- Open Storage with one or two adjustable shelves (dependent of height).

- Cupboard Storage with one or two adjustable shelves (dependent of height)

- Open Tote Storage sized for our F1TBA or F2TBB Totes

  • Locking casters are standard.
  • Magnets mounted to cabinet back align and hold “docked” units in place.
  • Cabinet available in high pressure laminate or melamine.
  • Doors and drawers receive loop pulls (P2). Doors receive concealed hinges (H3).
  • Typical cabinet dimensions are 20"D x 28"W for each of the three standard heights.

Overall Dimensions
Depth: 27"
Width: 60"
Heights: 29", 36", 42"

Open Tote Storage Tote Capacity based on F1TBA Tote

  • 29"H Unit - 12 totes
  • 36"H Unit - 16 totes
  • 42"H Unit - 20 totes

Note: One 6"H F2TBB tote fits in place of two 3"H F1TBA totes.

Finishes

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
