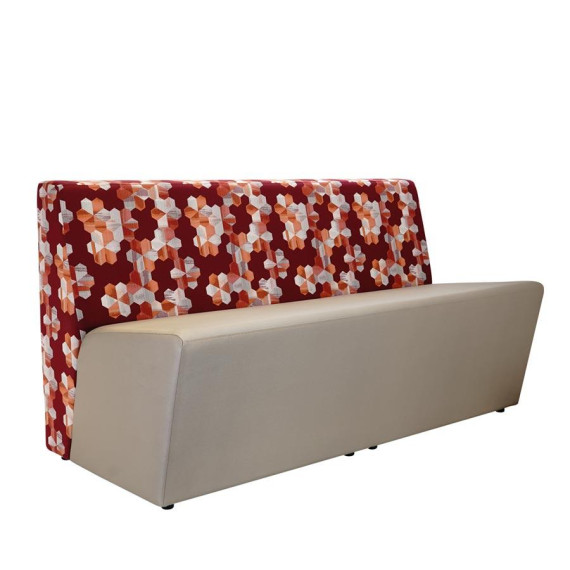

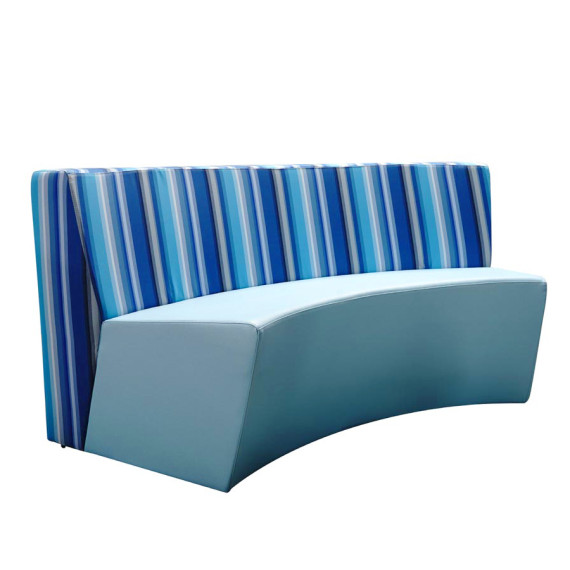

WNK-30-7230 Stinson Pinball Surf - DesignTex Trove Harbor
Log in or create an account to create a project board.

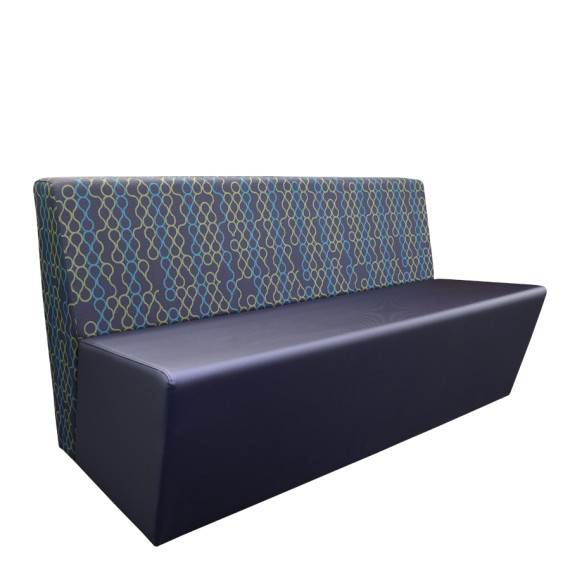

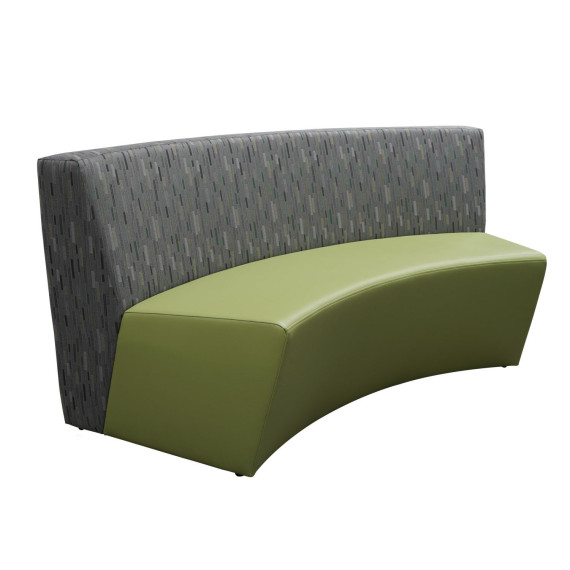

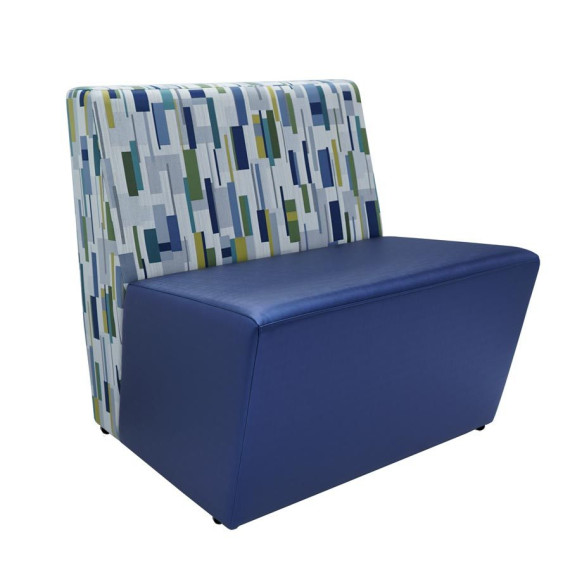

WNK-60-7230 - Maharam Tempera Liquid - ArcCom Chroma Ice Blue
Log in or create an account to create a project board.

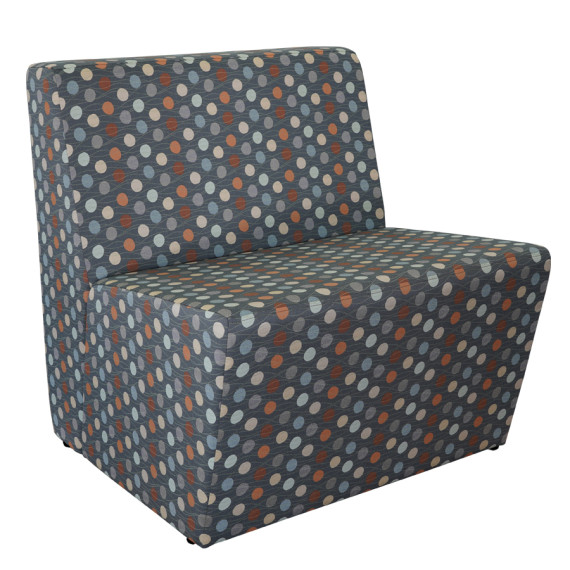

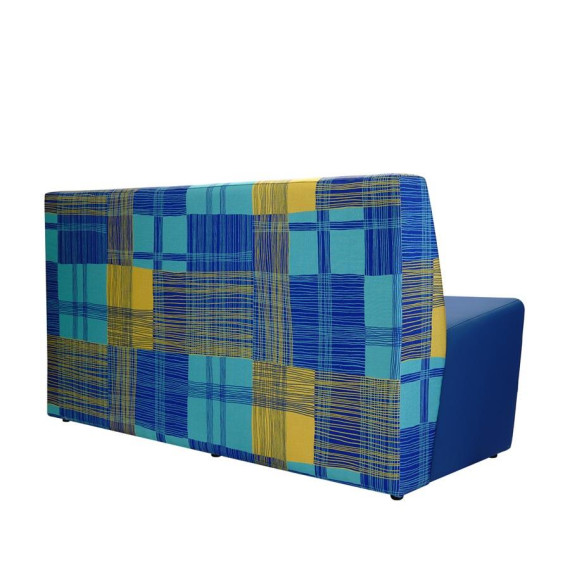

Wink
Wink... organic and structured. Upholster in one pattern, or play on the curves and use two fabric choices.
Guides
- Curved Seating Compatibility Guide (.pdf, 86.477 KB)
Cut Sheets
- Wink Cut Sheet (.pdf, 2.205 MB)
Forms
- Wink Finish Designator (.pdf, 235.7 KB)
AutoCAD
- Wink AutoCAD (.zip, 654.959 KB)
List Price Sheets
- Wink List Price Sheet (.pdf, 249.675 KB)
- Seat: Seat is constructed of 4/4 Alder hardwood frame and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner seat frame. The seat is covered with 5” of foam with 1.8 density and a 36 ILD rating.
- Back: The back is constructed of a 4/4 Alder hardwood frame is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner back frame. The back is then covered with 2.5” of foam with 1.8 density and a 24 ILD rating. The back is secured to the seat with T-nuts and 4 bolts.
- Glides: Seats are fitted with 1”H ABS self-leveling glides.
- Connectivity option is available on flat surfaces of the bench base.

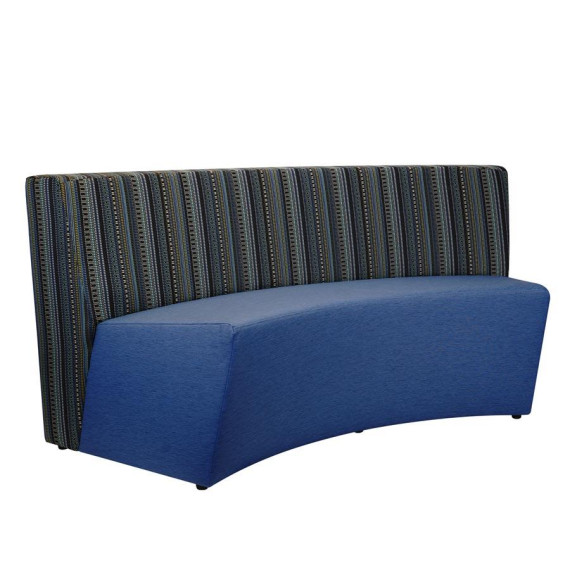

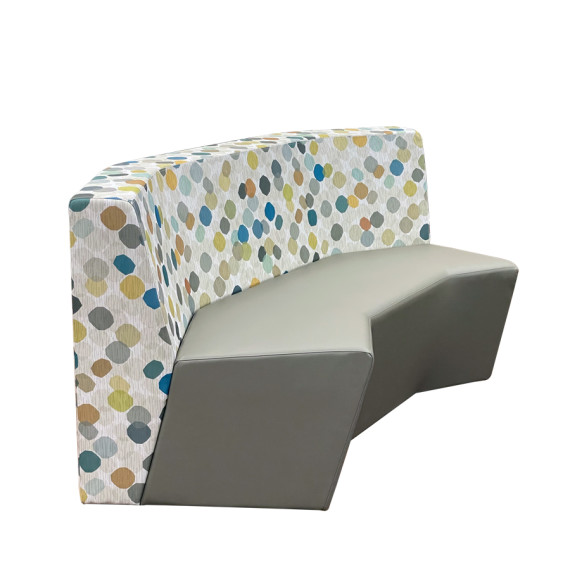

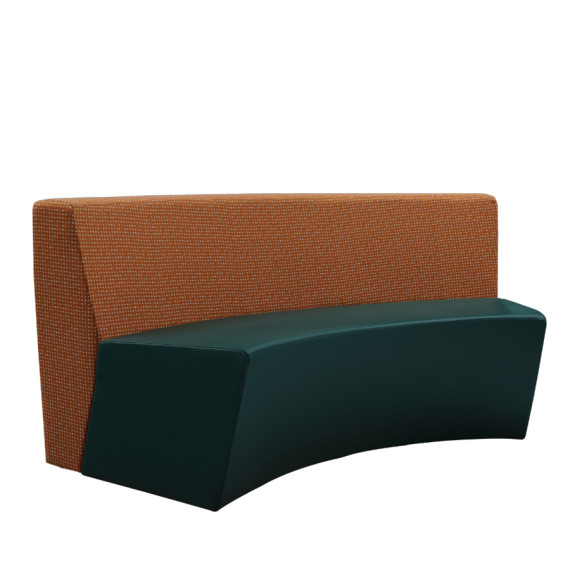

Curved Overall Dimensions
Overall Depth: 30"
Seat Depth: 20"
Widths: 37.3", 72"
Height: 33"
Seat height: 18"
Straight Overall Dimensions
Overall Depth: 30"
Seat Depth: 20"
Widths: 30", 60"
Height: 33"
Seat height: 18"
Upholstery note: fabric patterns that are horizontal may not line up with adjacent furniture due to the backs being curved and tapered.
