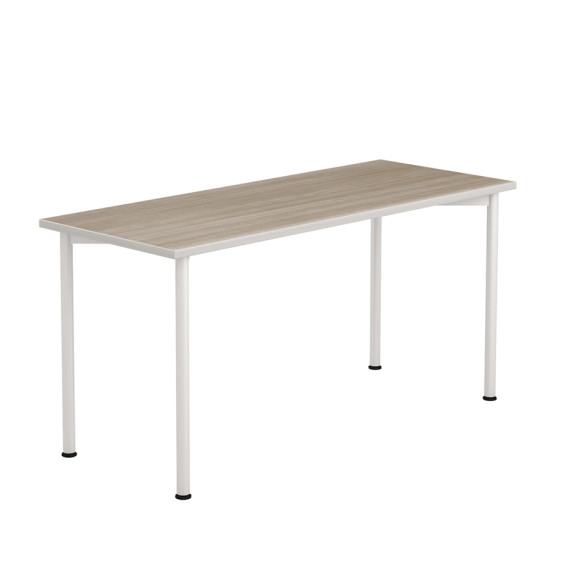

VT-C2460-29

Add to My Project Board

Vector

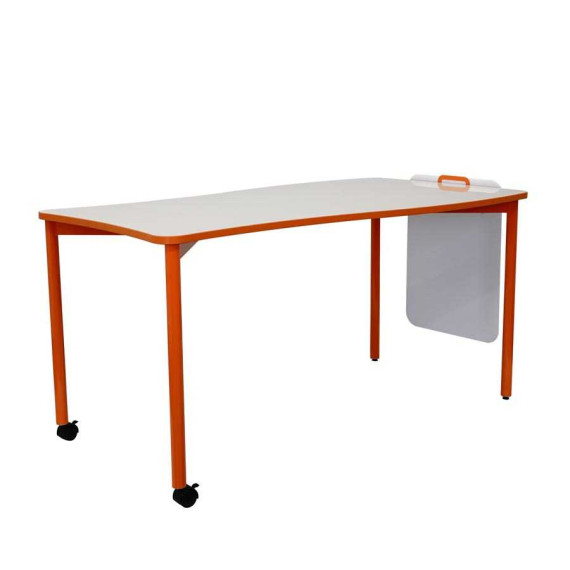

Vector table tops await your choice of laminate and are attached to a steel frame that receives a powder coat of your choosing. Modesty panels are optional additions to the Vector table and can be finished in a laminate or veneer of your choice. Vector's legs are fitted with adjustable glides and can receive optional twin wheel locking casters. Vector tables play well with the Surfboard.

See Full Description

Cut Sheets

Vector Cut Sheet (.pdf, 388.081 KB)

AutoCAD

Vector AutoCAD (.zip, 2.806 MB)

List Price Sheets

Vector Tables List Price Sheet (.pdf, 228.868 KB)

Instructions

Vector Installation & Assembly Guide (.pdf, 403.636 KB)

Hi-Res Images

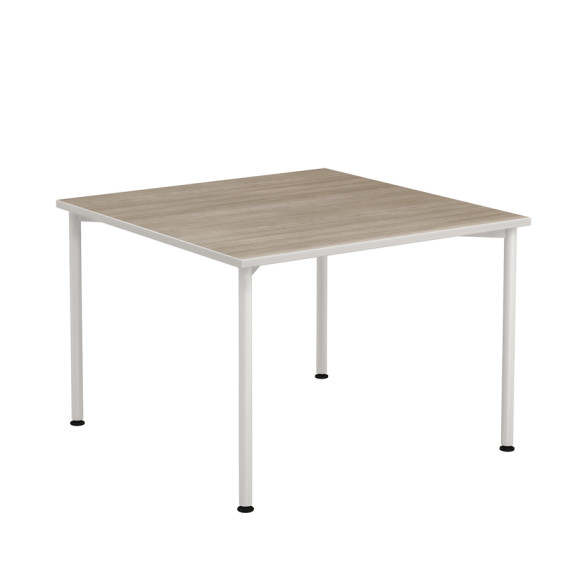

Vector Square (.jpg, 81.082 KB)
Vector Rectangle (.jpg, 81.684 KB)

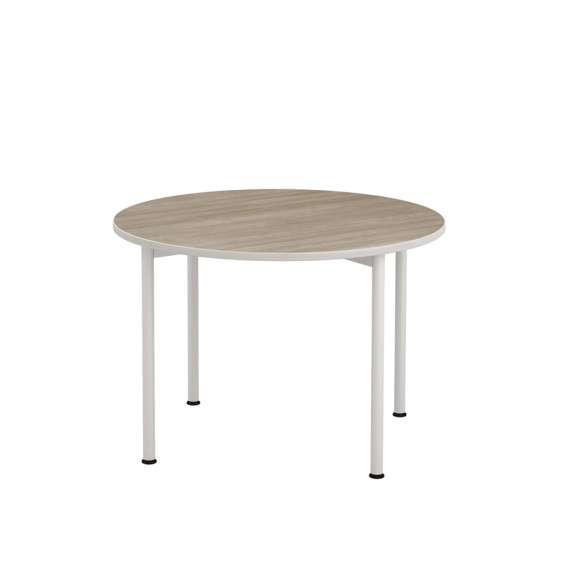

Vector Round (.jpg, 76.366 KB)

Overview
Finishes

Tops are 7/8" thick, three-ply 45# particleboard construction, with a .050" high pressure laminate top surface and a .030" phenolic backer. Corners on rectilinear tops: square corners on banded tops have 1/8" radius. Top is mounted directly to leg frames and stretcher.
Two 1-1/2" diameter 14 gauge steel legs are welded to a 1" x 2" steel tube frame to form a single, rigid end frame assembly. The steel tube frame consists of two angled members welded to 1/4" steel plate.
The under table support stretcher is constructed of 1" x 2" x 14 gauge steel tubing. Each end of the stretcher has a welded insert, drilled and tapped to receive (2) 1/4" - 20 machine bolts.
Legs are fitted with adjustable glides

Overall Dimension
Depths: 24", 30", 36"
Widths: 36", 42", 48", 60", 72"
Square and Round: 42", 48"
Heights: 29"

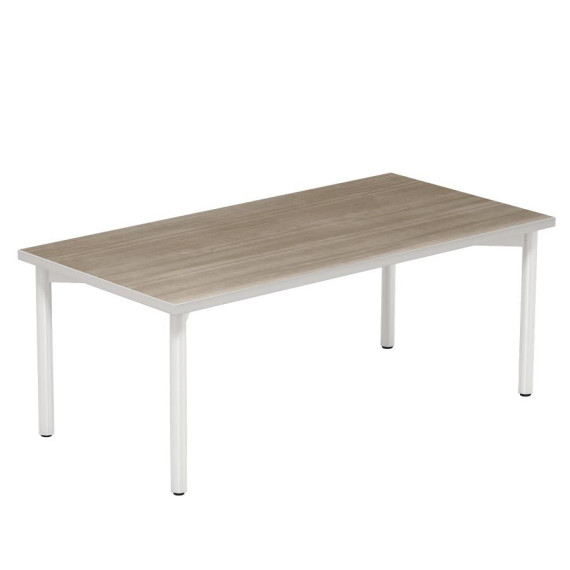

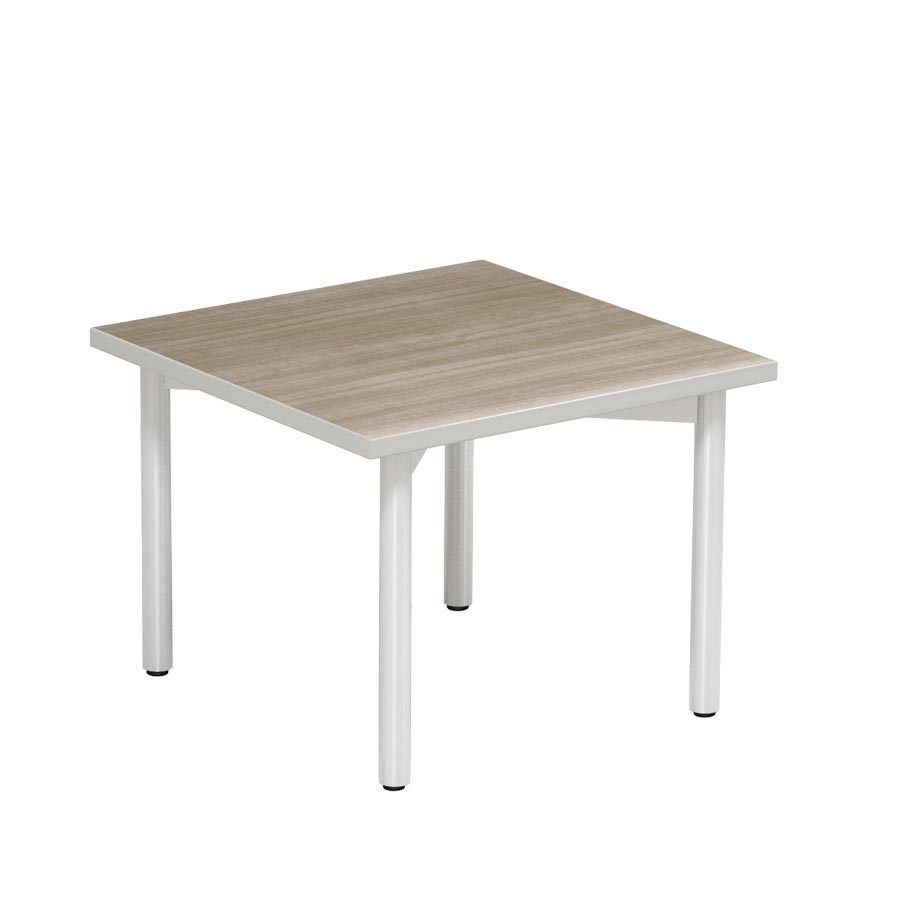

Occasional Tables Overall Dimensions
Heights: 18", 22"
Depths: 24", 30"
Widths: 24", 30", 48"

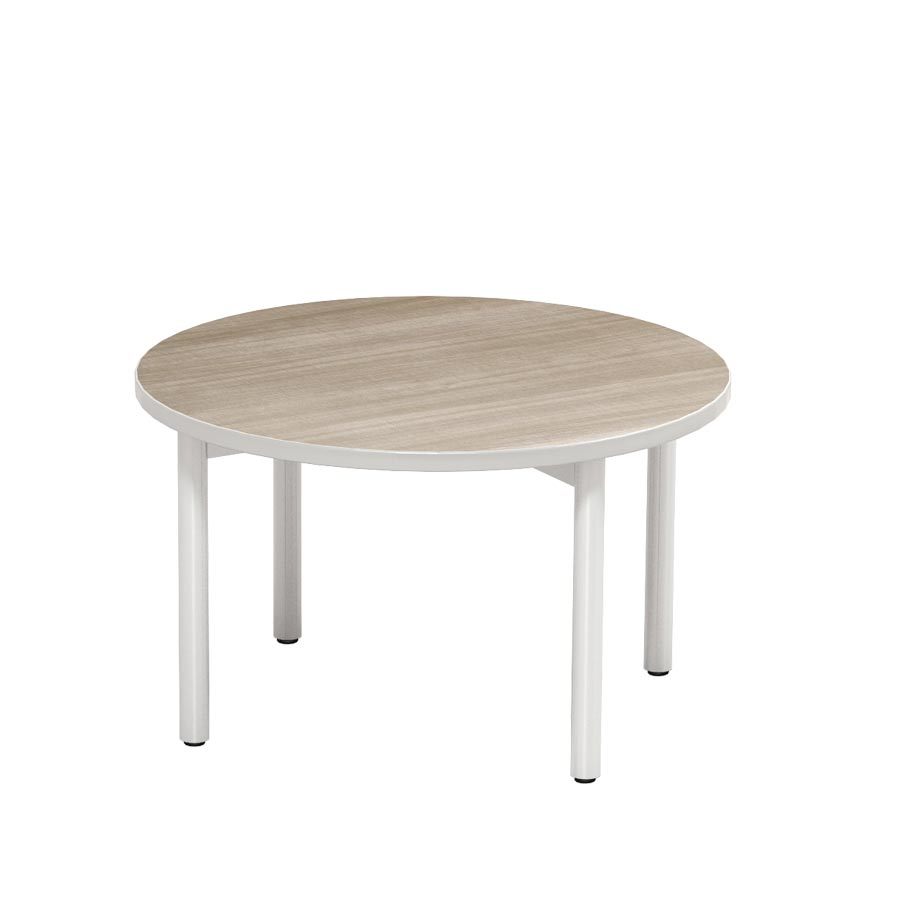

Diameter: 30"

Finishes

General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Silver 809 (G1) *Porter & Kineticos Approved

Powder Coat Colors

OPTIONS: 20

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
