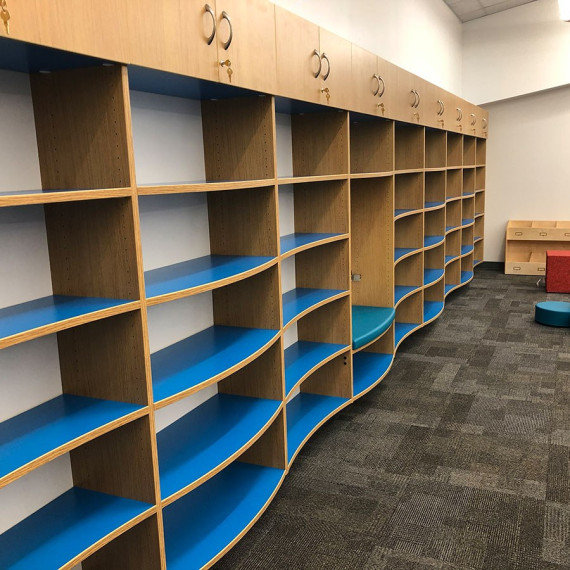

Transition shelves with integrated upholstered seat. Shown with upper cabinet doors and Wave Shelves.

Add to My Project Board

Log in or create an account to create a project board.

Transition Kit H

By Transition

Layout H is track mounted storage kit with an integrated seat. Each starter and adder unit in this kit (4 total) includes fixed and tab cam adjustable shelves.

All panels and shelves are 1" thick engineered wood with melamine finish and PVC banding.

The seat is 37"W and 13"D with an upholstered seat cushion. This kit is priced with Grade 3 fabric.

This kit can be expanded with additional track and transition components.

See Full Description

Brochure
AutoCAD
Instructions

  • (2) HT96 - 96" W Horizontal track
  • (4) HTAEC - Horizontal Track End Cap
  • (1) TRN-SB-842413-T - 84"H x 26"W x 13"D Starter Unit
  • (1) TRN-SB-842413A-T - 84"H x 25"W x 13"D Adder Unit
  • (1) TRN-SB-843613A-T - 84"H x 36"W x 13"D Adder Unit
  • (1) TRN-SH36F-SEAT-13-T-G3 - 36"W X 13"D Upholstered Seat, Grade 3
  • Overall Unit Width: 94"
  • Weight: 396 lbs.

Note: Starter unit widths include the width of the shelf plus the width of two end panels (shelf width plus 2"). Adder unit widths include the length of the shelf plus the width of one intermediate panel (shelf width plus 1"). Overall base cabinet height is expressed including the 6" space between the floor and the bottom of the base cabinet.

Finishes

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
