Timmy

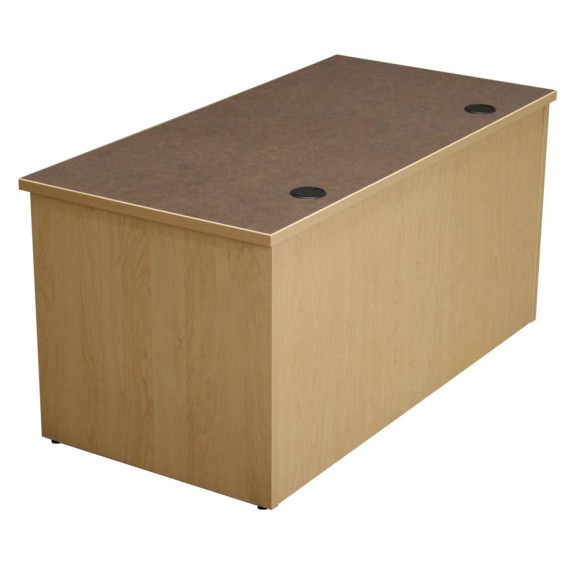

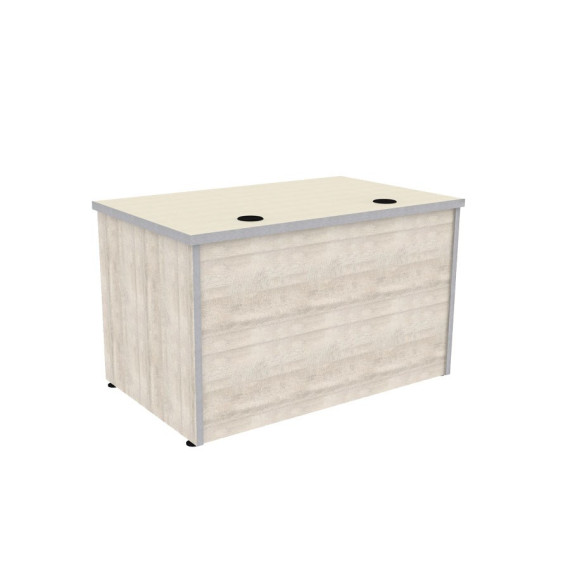

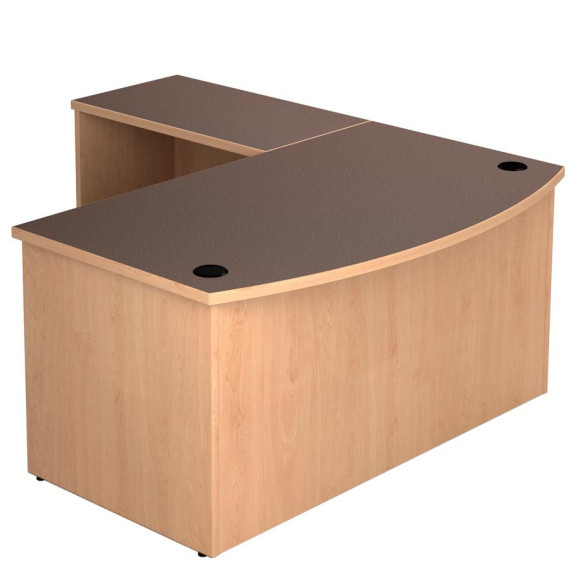

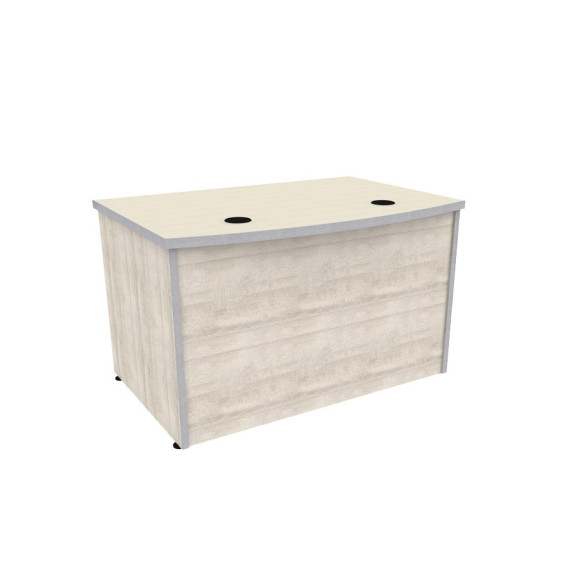

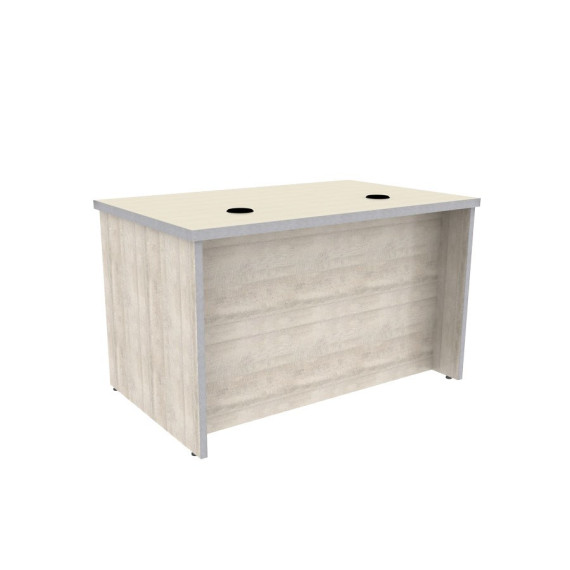

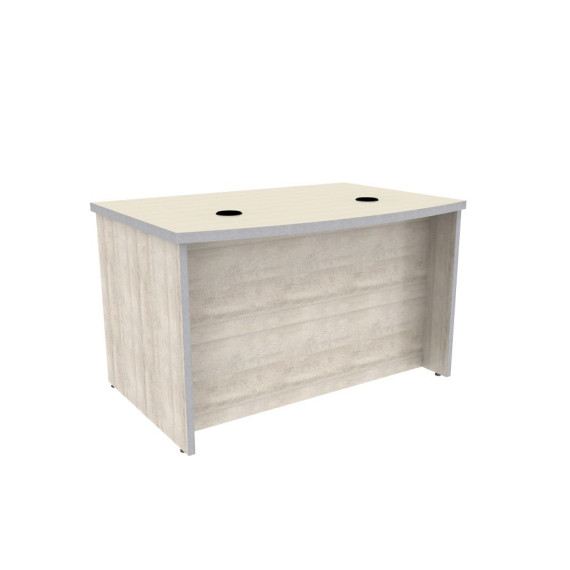

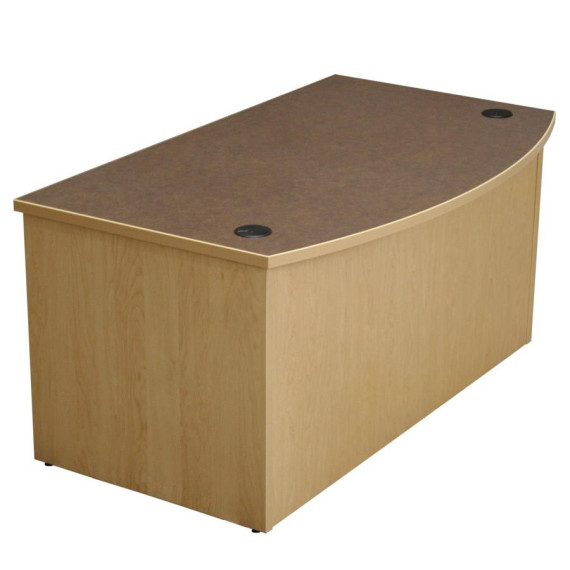

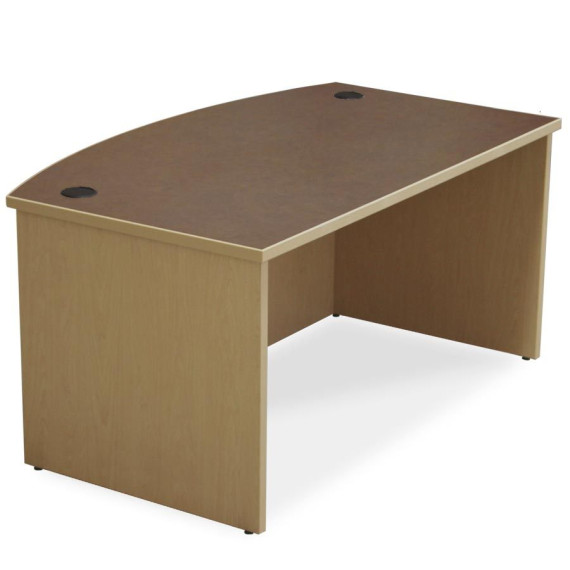

Timmy's child-like simplicity may fool you... but it's robustly sized work surface is great for bouncing ideas off of, or stashing work for a later date. Choose laminate finish for top and sides/modesty or laminate top with a melamine finish for sides and modesty. Timmy also accommodates support and mobile pedestals, should you need to store anything else for safe keeping. Available in rectangular and convex bow shaped tops that receive two 80mm wire management grommets.

See Full Description

Guides
Cut Sheets
AutoCAD
List Price Sheets
Instructions
Hi-Res Images

General Specificaitons

  • Table Top: Tops are 1-1/4” thick, three ply 45lb particle board with .050” high pressure laminate top surface and a .030” phenolic backer. Edge is 3mm PVC with a 1/8” radius top and bottom. Top receives 80 mm grommets.
  • End Panels: Tops are attached to the end and modesty panels with (4) steel “Z” brackets and mounted via 1/4”-20 inserts and bolts. End panels have embedded threaded metal inserts to accept machine threaded connecting hardware for metal-to-metal fastener contact to work surface top. End panels receive male mod-eez connectors at three locations to attach to modesty panel. End panels to receive 60mm grommets where specified. Each panel is equipped with (2) adjustable glides. Desk may be specified with work surface supporting pedestal as finished end.
  • Modesty Panel: Where modesty panel connects to end panels there shall be a recessed female mod-eez connector to attach to end panels for a positive lock. Panel is to include a formed trough to accommodate power and data cabling that is attached with #8 x 1” wood screws at desired height.

Overall Dimensions
Depth: 30"
Widths: 48", 60"
Height: 29"

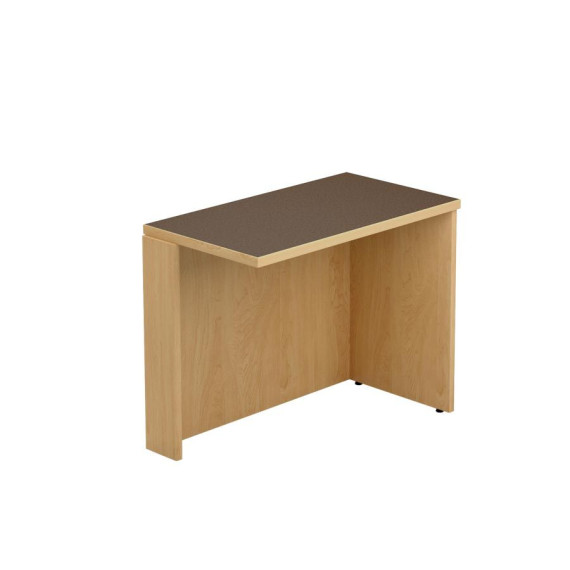

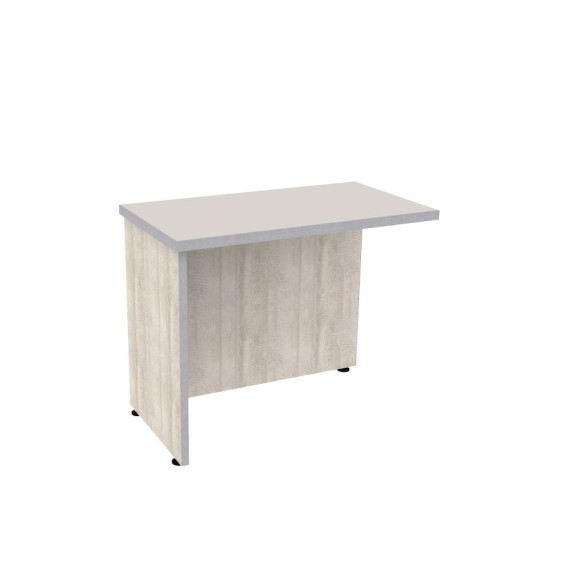

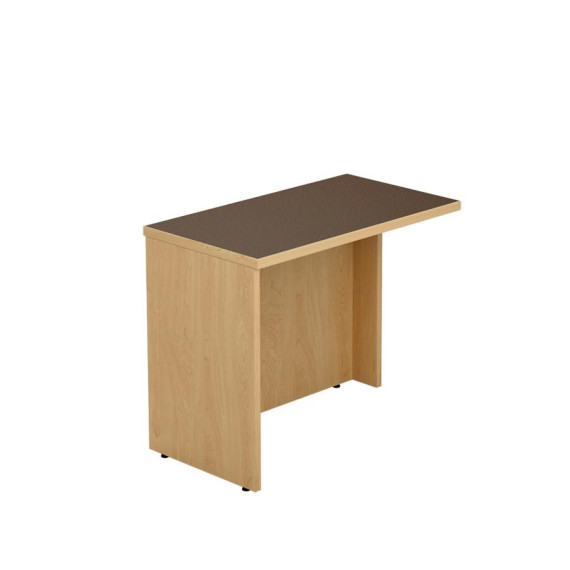

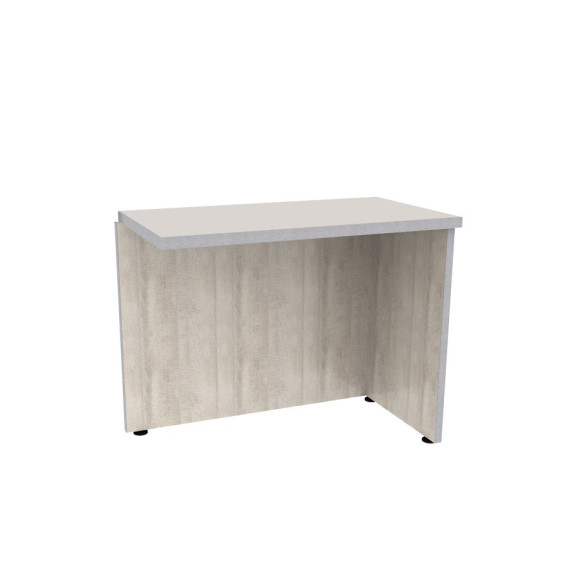

Overall Return Dimensions
Depth: 20"
Widths: 36", 42"
Height: 29"
