Timetable
The high-pressure laminate top rests upon and is attached to 4 decorative powder coated legs finished in your choice of powder coat. Edges are 3mm PVC. Each leg is fitted with a black nylon adjustable glide. Timetable is available in multiple shapes.
Cut Sheets
- Timetable Cut Sheet (.pdf, 340.36 KB)
AutoCAD
- Timetable AutoCAD (.zip, 1.677 MB)
List Price Sheets
- TimeTable List Price Sheet (.pdf, 199.371 KB)
Instructions
- Timetable Halftime Installation & Assembly Guide (.pdf, 199.261 KB)
Hi-Res Images
- Time Table Square (.jpg, 165.989 KB)
- Time Table Round (.jpg, 191.036 KB)
- Table tops are 1” with .050” high pressure laminate top surface and .030” phenolic backer.
- Edges are 3mm PVC. Corners are rectilinear and pentagon tops are square with a 1/8” radius.
- Legs are fabricated from 5/16” plate steel and include a curved profile with a square mounting
- plate and a pair of decorative gussets. The bottom of each leg is fitted with a threaded weld nut
- and 1-7/8” black leveling glide.

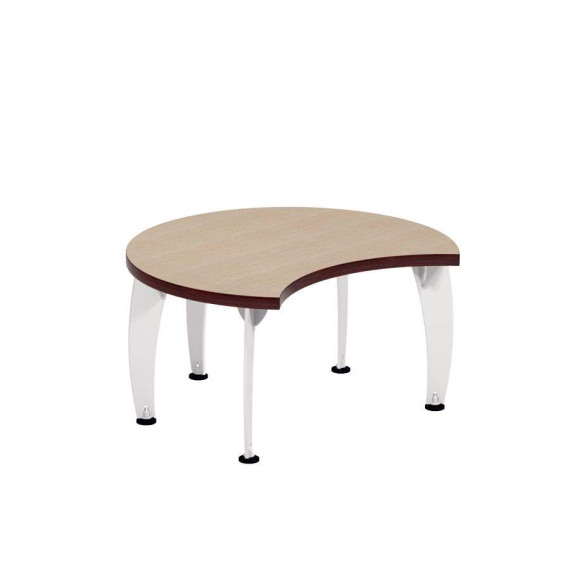

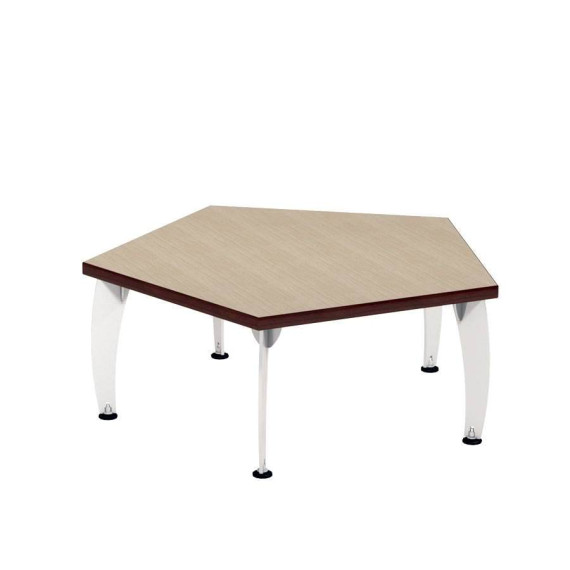

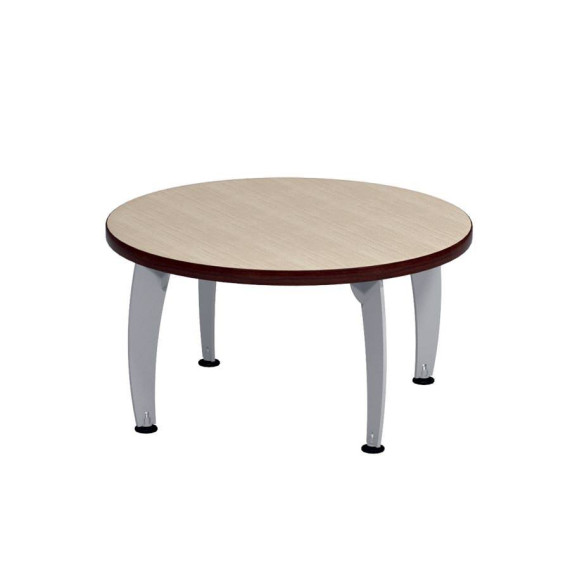

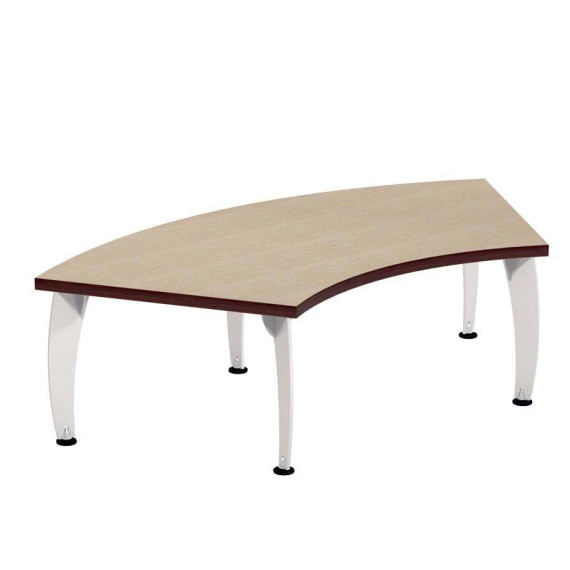

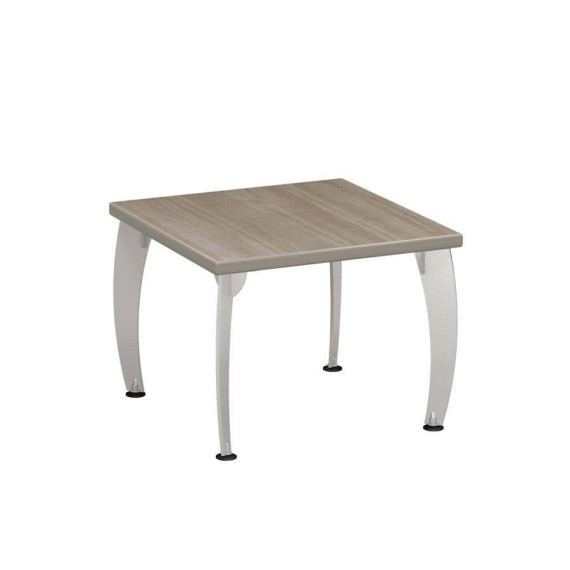

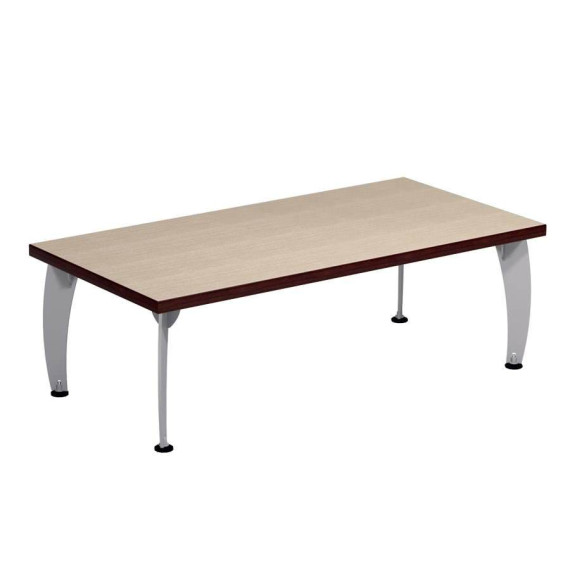

- Available in rectangle, round, crescent, square, curved or pentagon shapes
Overall Dimensions
Rectangle:
Depths: 24", 30"
Widths: 30", 48"
Height: 16"
Round:
Diameter: 30"
Height: 16"
Crescent:
Depths: 25", 36"
Widths: 30", 51"
Height: 16"
Square:
Depths: 24", 30"
Widths: 24", 30"
Height: 16"
Curve:
Curve: 36˚
Returns: 24"
Height: 16"
Pentagon:
Returns: 18", 24"
Height: 16"
Finishes
General Laminates
OPTIONS: 87
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
Standard PVC Selections
OPTIONS: 37
PVC Applies to front edges as well as work surface edges in 3mm PVC.
* Indicates available for work surfaces only.
Powder Coat Colors
OPTIONS: 20
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
