SST
Solid and strong, SST tables withstand any test. Tops sit upon square steel tube legs attached to a steel apron frame, of which you choose a powder coat color. Each leg is fitted with adjustable leveling glides. The tops are available in your choice of laminate, or choose a 1-1/4" thick chemical-resistant HPL or 1" solid phenolic top. Casters for mobility are optional as well as 80mm wire management grommets.
Cut Sheets
- SST Cut Sheet (.pdf, 318.125 KB)
- SST Science Cut Sheet (.pdf, 401.399 KB)
AutoCAD
- SST AutoCAD (.zip, 599.031 KB)
List Price Sheets
- SST Science List Price Sheet (.pdf, 153.654 KB)
- SST Tables List Price Sheet (.pdf, 176.674 KB)
Instructions
- SST Installation & Assembly Guide (.pdf, 576.901 KB)
• Base assembly: The base consist of 1" x 2" one piece welded tubular steel frame and four 1-1/2" square tubular steel legs. Legs are assembled to the frame by inserting a cross dowel into the top of each leg and bolting the legs to each corner of the frame assembly. The frame is then fastened to the table top brackets and screws. The bottom of each leg is fitted with an adjustable leveling glide or optionally with a 50mm black, twin wheel locking caster.
• Table Top: Table tops are 1-1/8" thick particle board core with .050" high-pressure laminate (standard or chemical-resistant) top surface and .030" phenolic backer. Edges are available in 3mm PVC. Corners on rectilinear and square tops are square with 1/8" radius. 1" thick solid phenolic top available. Phenolic tops do not receive edgebanding.
• Wire management: Table may be specified to include one or more 80mm grommets, provided for egress to the underside of the table.

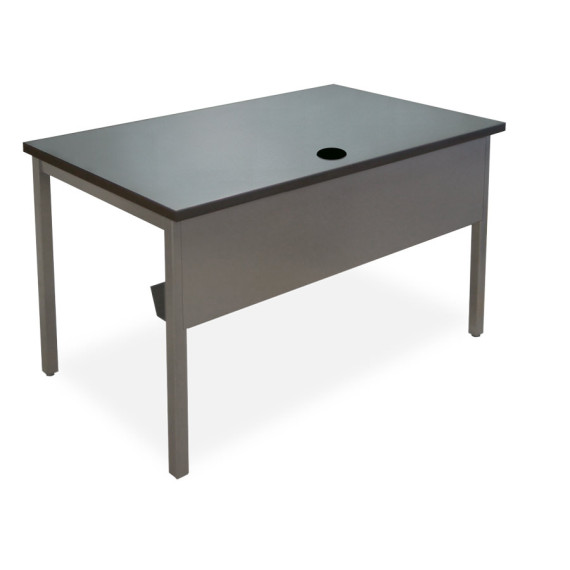

• Modesty Panel: A 12" high metal modesty/wire management panel may be specified as an option. The panel is formed to create a trough, 2 holes are cut at the bottom for wire egress.
Overall Dimensions
DIA: 42", 48", 60"
Square: 42", 48", 60"
Depths: 24", 30", 36"
Widths: 36", 42", 48", 60", 72", 84", 96"
Height: 29"
Finishes
Standard PVC Selections
OPTIONS: 37
PVC Applies to front edges as well as work surface edges in 3mm PVC.
* Indicates available for work surfaces only.
General Laminates
OPTIONS: 87
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
Powder Coat Colors
OPTIONS: 20
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
