Showcase

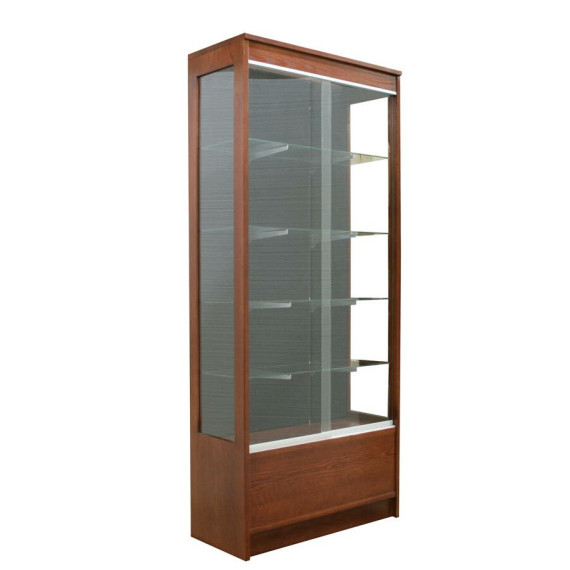

Showcase, perfect for displaying art, awards, and trophies! Sliding doors are lockable 1/4" tempered glass that ride in aluminum U-Channels.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • End panels are constructed of 1" thick nine ply plywood hardwood with premium grade A oak veneer on both faces. Exposed edges are banded with 1/8" solid wood edges snd corners are radiused 1/8".
  • All panels permit shelf adjustment on 32mm increments. The cornice top panel is 3/4" thick engineered wood with select oak veneer face. The front edge is banded with 1/8" solid wood.
  • The cornice rail is 1"' x 2-1/4" and is inset 1/8" from the front edge.
  • The top is attached with 16-gauge steel Z-brackets.
  • The base shelf is 3/4" thick engineered wood with select oak veneer face. The front edge is banded with 1/8" solid wood.
  • The toe assembly is a 4" high box frame constructed of 1" thick nine ply plywood hardwood. The toe assembly is bolted to the end panels using 5/16" - 18 machine bolts.
  • Sliding display case doors are two panes of 1/4" thick tempered glass that ride in aluminum U-channels.
  • Sliding glass door lock is provided.

Overall Dimensions
Depth: 24"
Width: 36"
Height: 84"

Finishes

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.
