Rally

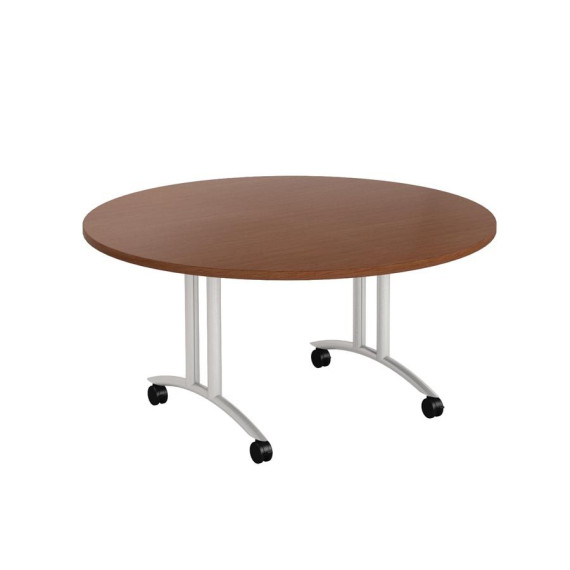

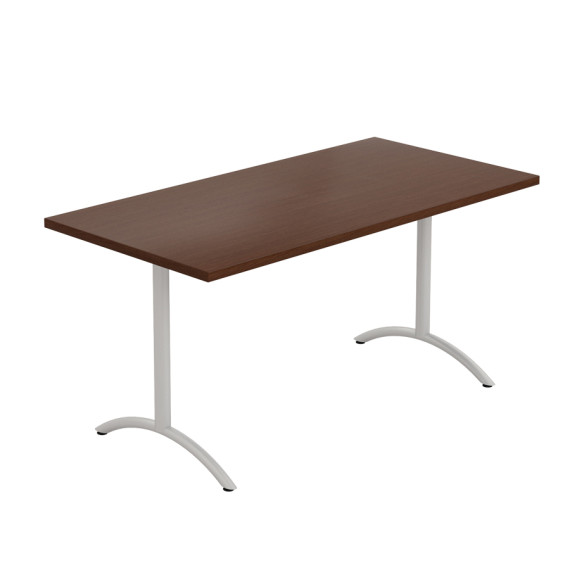

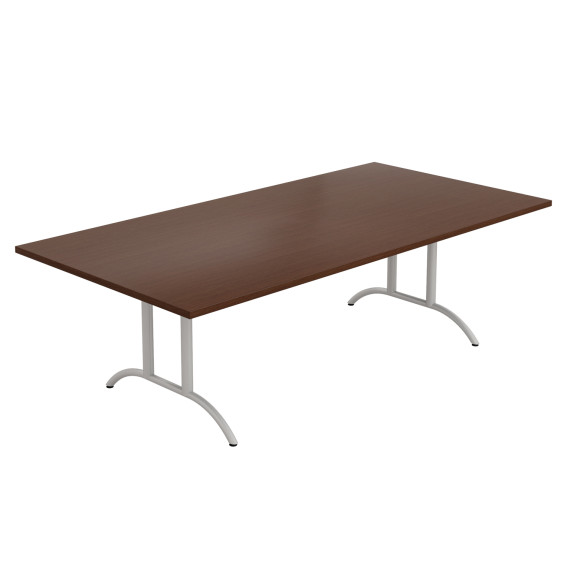

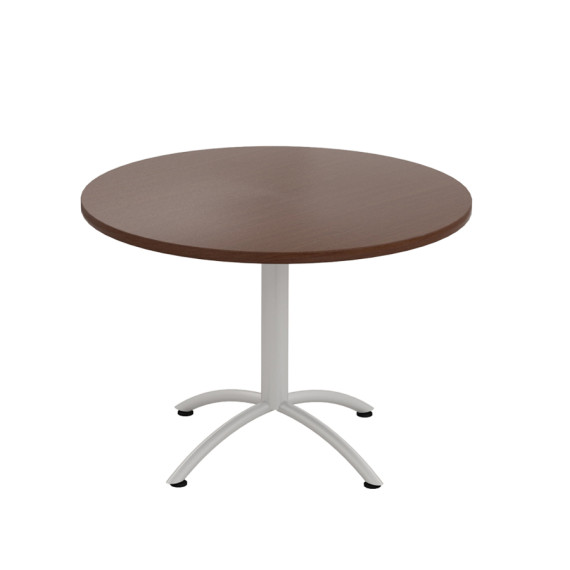

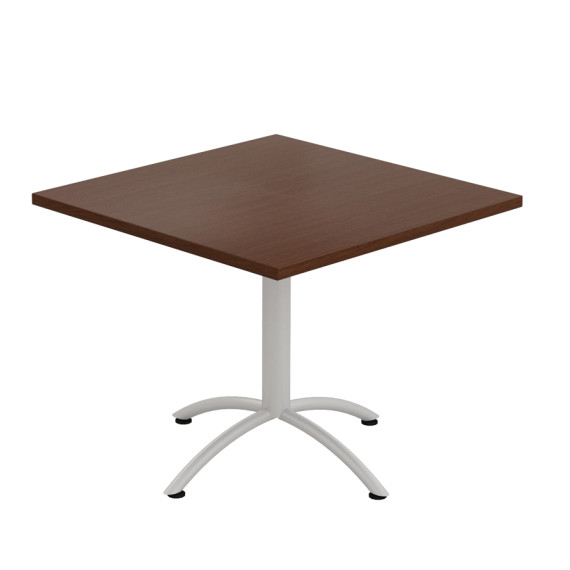

Simple, elegant lines fit in a variety of environments. Rally table is available with a t-base or x-base and in multiple sizes and heights. Single column- tables allow for the addition of a flip top steel mechanism. Choose a laminate and powder coat. Rally pairs well with Surfboard. Legs are fitted with levelers, casters are an available option.
Cut Sheets
- Rally Table Cut Sheet (.pdf, 606.277 KB)
AutoCAD
- Rally AutoCAD (.zip, 4.816 MB)
List Price Sheets
- Rally X-Base List Price Sheet (.pdf, 329.5 KB)
- Rally T-Base List Price Sheet (.pdf, 502.625 KB)
Instructions
- Milestone, Rally & Stance Installation & Assembly Guide (.pdf, 123.429 KB)
- CET Instructions - Flip Top Tables (.pdf, 223.983 KB)
- Table tops are 1-1/4" thick, three-ply 45# particle board construction, with .050" high-pressure laminate top surface and a .030" phenolic backer.
- 14-gauge, 2" column and 13-gauge, 1.375" base
- Can be specified to be adjustable height via a spring clip mechanism, range is 9". (26-35”H is standard range)

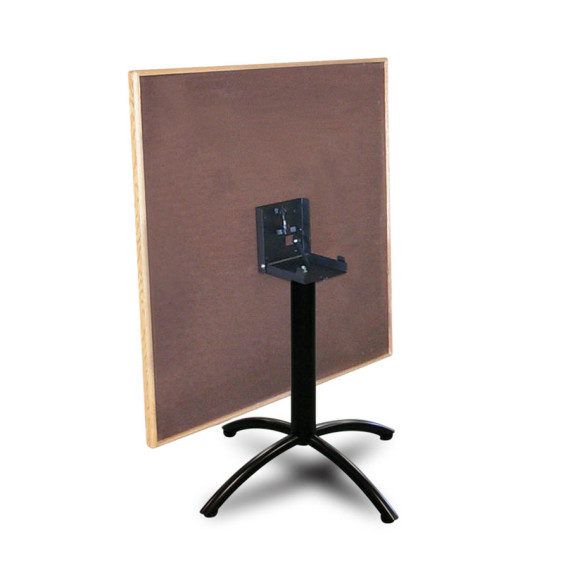

- Flip-Top: Two-part steel mechanism is joined via a pivot system. Upper component attaches to the underside of work surface using 1" #12 wood screws. Lower component bolts to the leg frame via a threaded insert. Flip-top is available on single column T-bases only.
- Folding base mechanism: nylon injection molded body, with an extruded aluminum mechanism is bolted to leg frame via a threaded insert. Mechanism is attached to the underside of work surface using 1" #12 wood screws.
- All bases include 1-3/8" diameter levelers
- Casters available
- Pairs well with Surfboard.
Overall Dimensions
Heights: 29", 36", 42"
Widths: 24", 30", 36", 48", 60"
Lengths: 36", 48", 60", 72", 84", 96"
Finishes
Standard PVC Selections
OPTIONS: 37
PVC Applies to front edges as well as work surface edges in 3mm PVC.
* Indicates available for work surfaces only.
General Laminates
OPTIONS: 87
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
Powder Coat Colors
OPTIONS: 20
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
