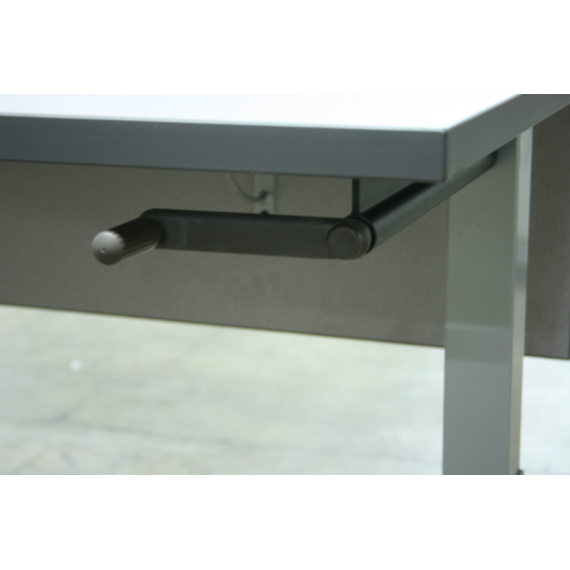

Detail of Hand Crank

Add to My Project Board

Log in or create an account to create a project board.

Porter Adjustable Height Desk - mediatechnologies

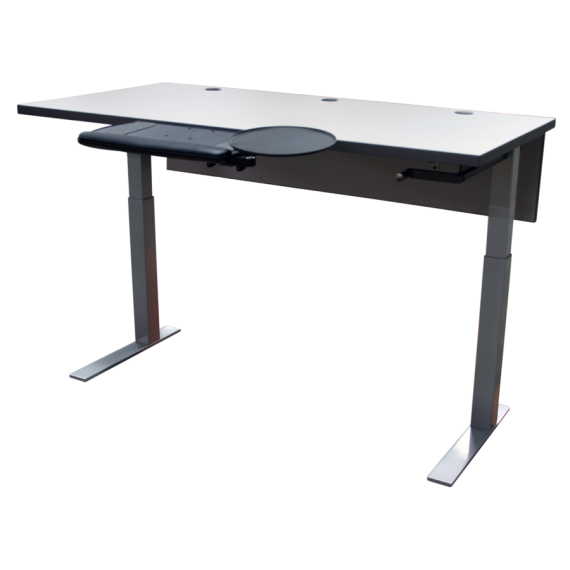

PDCT22-C3060-ADJ shown with Keyboard and Mouse tray

Add to My Project Board

Log in or create an account to create a project board.

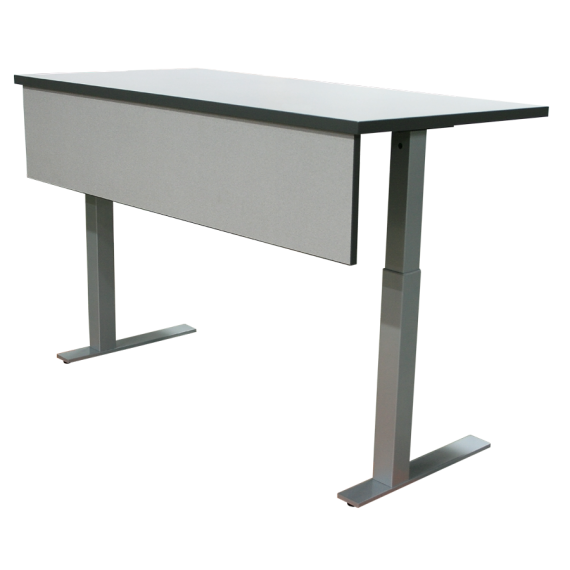

Porter Adjustable Height Desk

The Porter Desk is an adjustable height work desk with a modesty panel. The extended range hand crank allows the desk height to be set between 27-1/4" and 45".

Note that the addition of optional casters will increase the starting height range by 2"

See Full Description

Cut Sheets
AutoCAD
List Price Sheets
Instructions
Hi-Res Images

  • Table Top: Table tops are 1-1/4” thick, three-ply 45# particleboard construction with .050” high-pressure laminate top surface, a .030” phenolic backer and a 3mm PVC edgeband. Square corners on banded tops have a 1/8” radius. (1) 80mm grommet is centered in the top along the back edge (inside/behind the modesty panel).
  • Steel Crank-End Base: Three-stage column is 2mm square powder coated steel tube. Outer tube is 2.76”. Middle tube is 2.48”. Inner tube is 2.20”. Column is offset 3” from center of foot. Foot is 3” x ½” machined powder coated steel bar. Each foot is fitted with (2) 5/16”-18 x ½” long threaded stem levelers with black nylon base. Top of column fitted with 8” x 8” x ¼ powder coated steel mounting plate. Mounting plate and foot attached to column with set of (4) 8mm bolts at the top and bottom of each column. Base height is adjusted by hand crank with retractable handle. Base adjustment range without top is 26” to 43-3/4”.
    Note: Optional casters add 2” to the starting height of the adjustment range.
  • Modesty Panels: Modesty panels are 3/4” thick particleboard construction with .050” high-pressure laminate front and back surface with a 3mm PVC edgeband. Square corners on banded tops have a 1/8” radius. Modesty panel is fastened to underside of work surface with two steel brackets. Modesty panel height is 11”.

    * Porter Approved - Choose from these powder coats for your Porter Adjustable Height Tables and Desks.
    - Silver 809
    - Black 912
    - Navy 5003

Overall dimensions

Depth: 30"
Widths: 60", 72"
Height Range: 27-1/4" - 45"
Height Range with Casters: 29-1/4" - 47"

Finishes

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Silver 809 (G1) *Porter & Kineticos Approved
Pneumatic Height Powder Coats

OPTIONS: 3

Porter Table is available in 3 Powder Coats.
