Octagonal - mediatechnologies

B3636OCT

Add to My Project Board

Log in or create an account to create a project board.

Octagonal - mediatechnologies

Add to My Project Board

Log in or create an account to create a project board.

Octagonal - mediatechnologies

B4848OCT

Add to My Project Board

Log in or create an account to create a project board.

Octagonal

By Bookmark

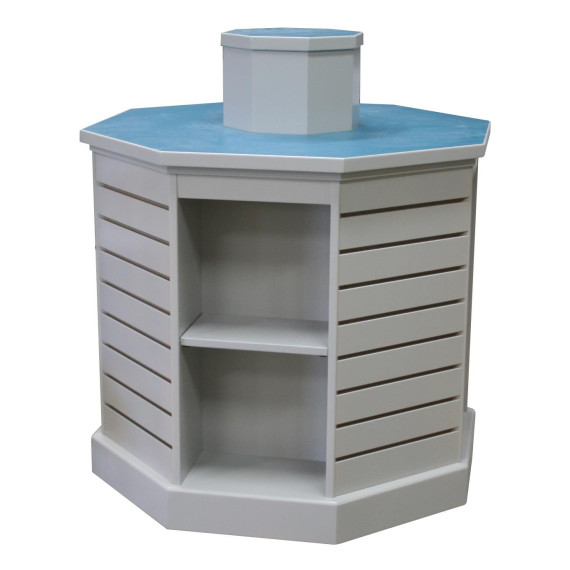

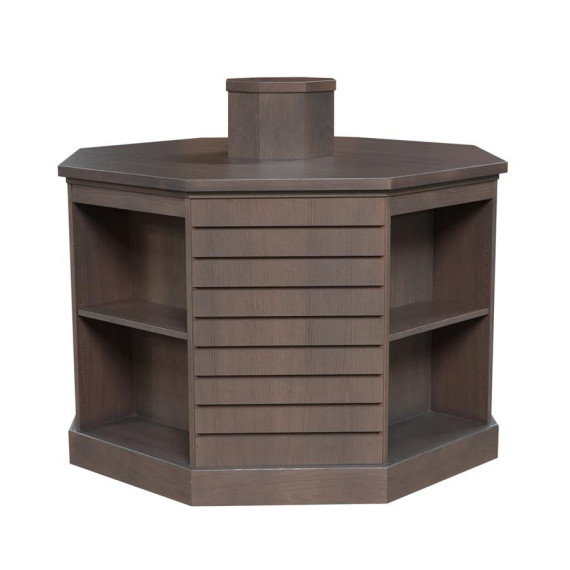

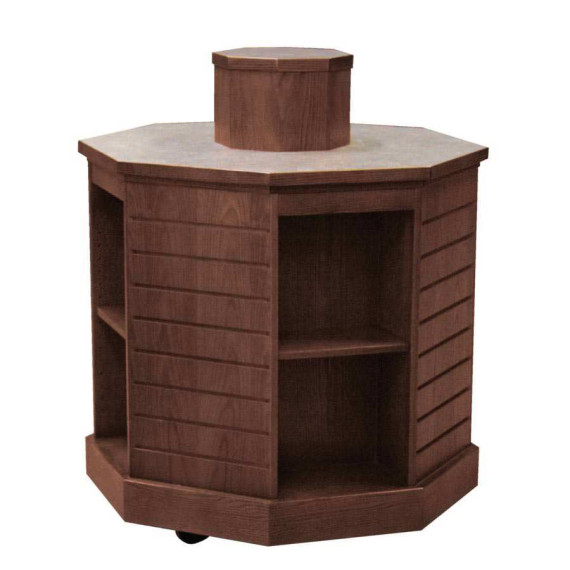

Octagonal shape features 4 sides of shelving (one adjustable/one fixed base) and 4 sides of wood-veneer slat wall. Extra display space available above the work surface on an 8" mini octagon pedestal. Choose oak or maple finish for veneer and laminate or melamine finish for work surface area. Unit is mobile by means of 8 concealed casters.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • Tops are 1-1/4" thick three ply engineered wood construction with .050" thick high-pressure laminate and a phenolic backer.
  • The standard edge is 1/8" solid red oak with a 1/8" radius all around.
  • The adjustable shelves are 3/4" thick solid glued up hardwood.
  • Nosing is 1-3/4" thick solid red oak.
  • All wood components are 1" thick hardwood with grade AA red oak.
  • All edges are finished with a 1/8" radius solid hardwood edge band with a 1/8" radius top and bottom.
  • The base of the unit is terminated with a solid oak decorative trim at the base, which conceals (8) 3" diameter casters.
  • Four sides feature two shelves with one adjustable and one base shelf per section. Shelves adjust on 32mm increments. The other four sides are slat wall with wood veneer slats.
  • Unit also comes with an 8" high upper octagonal display unit that is mounted at the center of the work surface for additional display.

Overall Dimensions

Depth: 36"
Width: 36"
Height: 41.5"

Finishes

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

SHO30 Hummingbird
Finishes - Sprayon

OPTIONS: 13

Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing). Actual colors may differ slightly from these representations.
