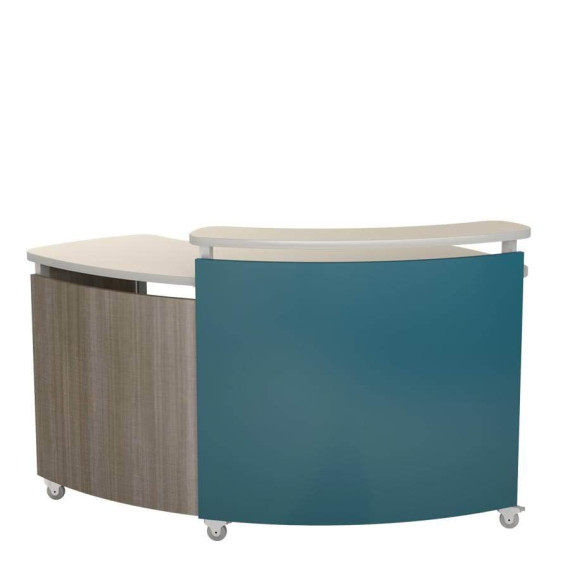

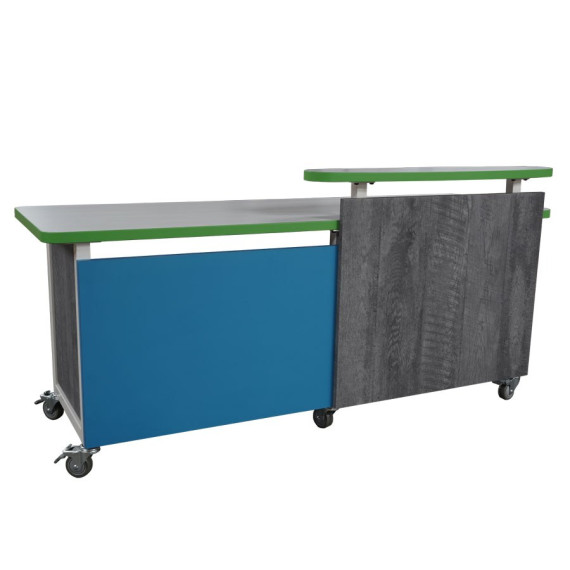

NDS-72DL-MOB - Charred Formwood, WhiteAsh, MatrixBlue

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

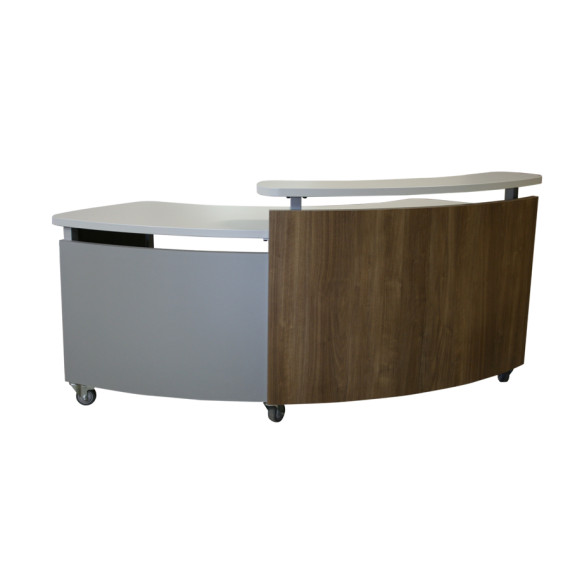

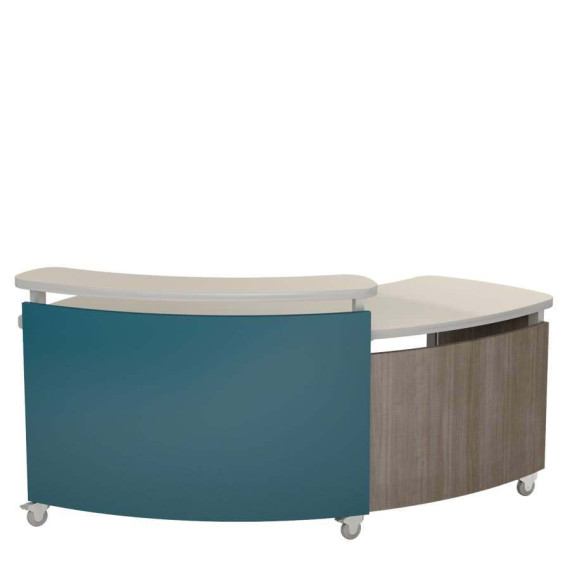

Nomad Front

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

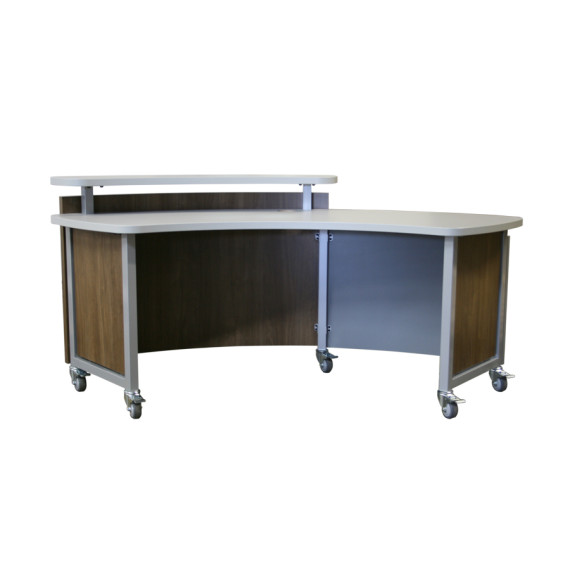

User side

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

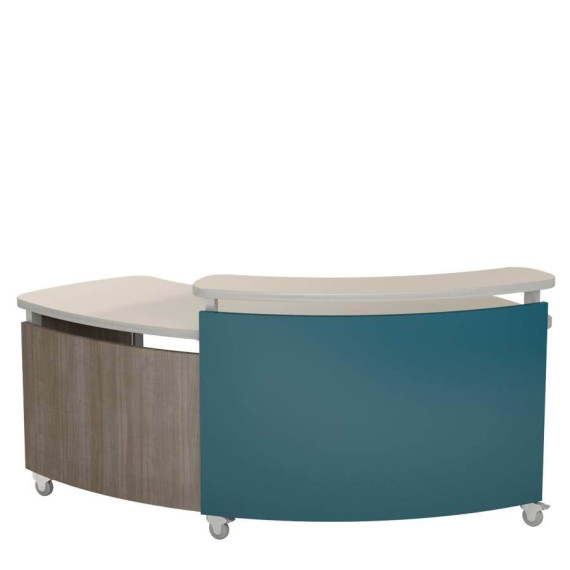

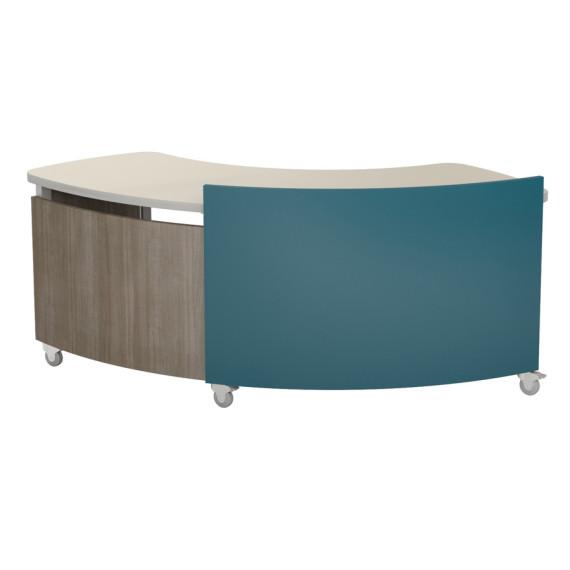

ND-75DL-MOB

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

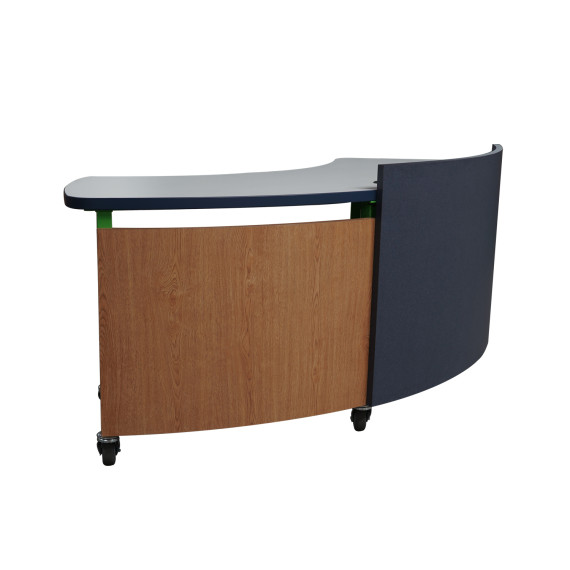

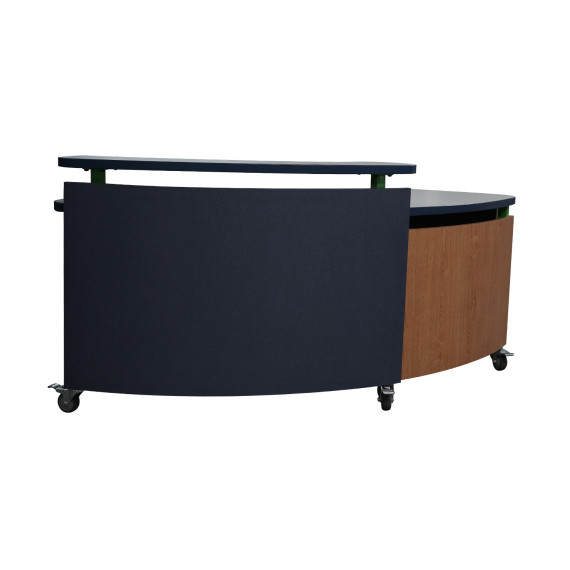

ND-75DR-MOB - Solar Oak - Legacy Navy - Lime Green Powder Coat - Blue PVC

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

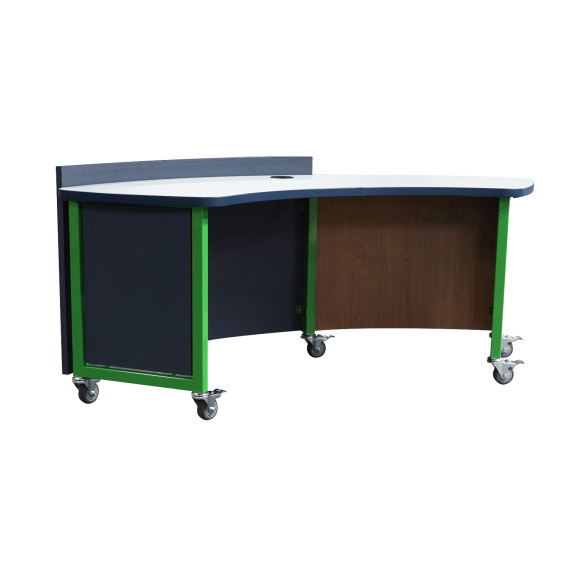

ND-75DR-MOB - Solar Oak - Legacy Navy - Lime Green Powder Coat - Blue PVC - Rear View

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

ND-75DX-MOB - Solar Oak - Legacy Navy - Lime Green Powder Coat - Blue PVC

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

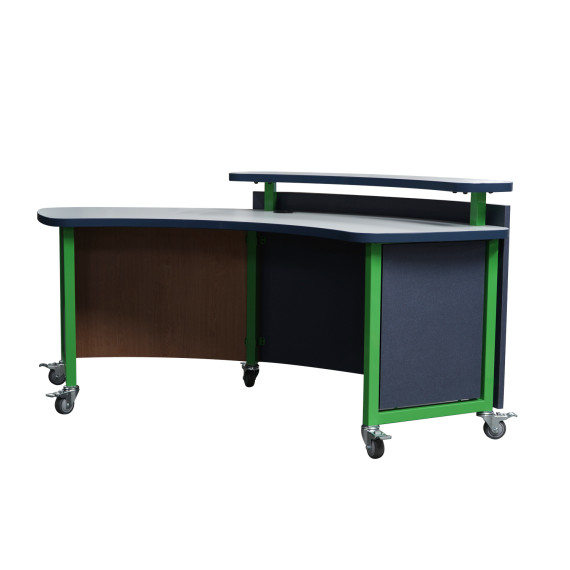

ND-75DX-MOB - Solar Oak - Legacy Navy - Lime Green Powder Coat - Blue PVC - Rear View

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

ND-84DR-MOB

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

ND-84DL-MOB

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

ND-84X-MOB

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

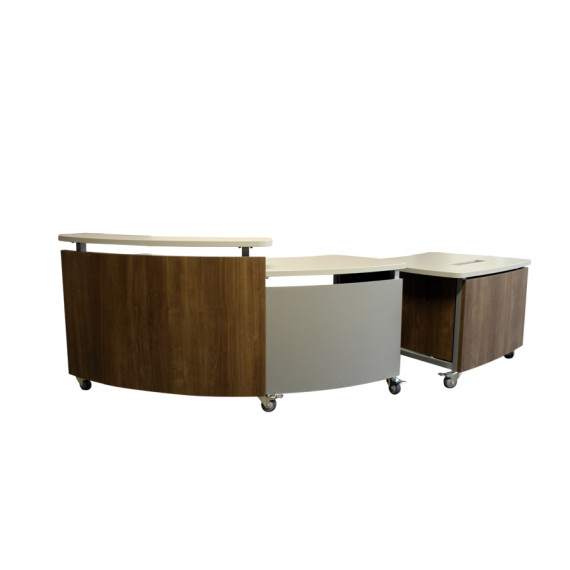

Nomad shown with Book Return

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

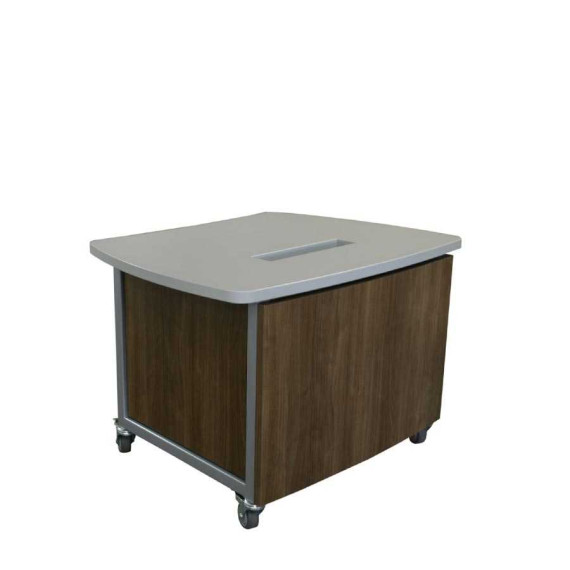

Book Return

Add to My Project Board

Log in or create an account to create a project board.

Nomad - mediatechnologies

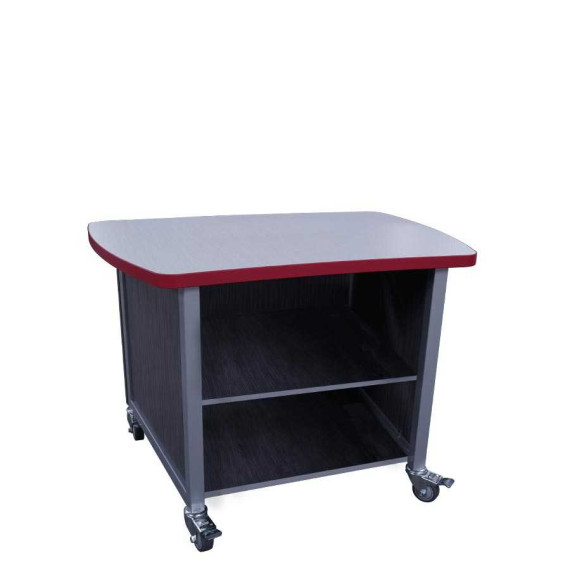

Nomad Open Storage

Add to My Project Board

Log in or create an account to create a project board.

Nomad

Nomad Desks... whatever and wherever you need them to be.

Nomad is an ideal choice for an info or help desk. Lots of useful space in a compact and very mobile package. Nomad is available in 75" or 84" widths and 29" or 39" main worksurface heights. You can choose to have your Nomad desk built with the transaction top on the left or right side of the front face (determined by user side)...or with no transaction top at all. You can also choose to have a hanging steel pedestal supplied with your desk.

The Nomad Mobile Cabinet with Book Return Slot completes the ensemble for library applications. (Note: the Nomad Mobile Cabinet with Book Return Slot does not include a descending platform book truck - MCD-18DBTL book truck must be ordered separately).

See Full Description

Cut Sheets
Forms
AutoCAD
Revit
List Price Sheets
Hi-Res Images

  • Work surface: Tops are 11⁄4” thick, three ply 45# particle board construction with .050” high pressure laminate top surface and a .030” phenolic backer. Edge is 3mm PVC with a 1/8” radius top and bottom. Tops are attached to the frames and mounted via 1/4”-20 inserts and bolts. Top surface is at 35” height. Lower work surface is at 29” height.

  • Case: Floating curved front panels are self-edged high pressure laminate. Face panels have embedded threaded metal inserts to accept machine threaded connecting hardware for metal-to-metal fastener contact to steel chassis frames. End panel inserts are self- edged high pressure laminate panels.

  • Steel Chassis Frame: Frame shall be a welded assembly of 1-1/4” square 14 gauge steel tube, drilled and tapped to receive casters and bored for connecting hardware. Finish shall be powder coat, manufacturer’s standard colors.

  • Casters: Casters shall be 100mm heavy duty swivel casters with brake, rated at 100# per caster. Assembled unit shall use a total of (5) casters.

  • Accessory Hanging Pedestal: Hanging pedestal shall be steel construction with satin nickel loop recessed pulls, locking mechanism, 1 box drawer, 3/4 extension slides, 1 file drawer, full extension slides, 15.25” width x 17.875” depth x 19.375” height. Hanging pedestal shall be provided uninstalled.

Overall Dimensions
Upper work-surface

Height: 35", 45"
Depth: 9"
Lower work-surface
Height: 29", 39"
Depth:24", 30"
Widths: 75", 84"

Finishes

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Silver 809 (G1) *Porter & Kineticos Approved
Powder Coat Colors

OPTIONS: 20

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

SHO30 Hummingbird
Finishes - Sprayon

OPTIONS: 13

Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing). Actual colors may differ slightly from these representations.
