Milestone - mediatechnologies

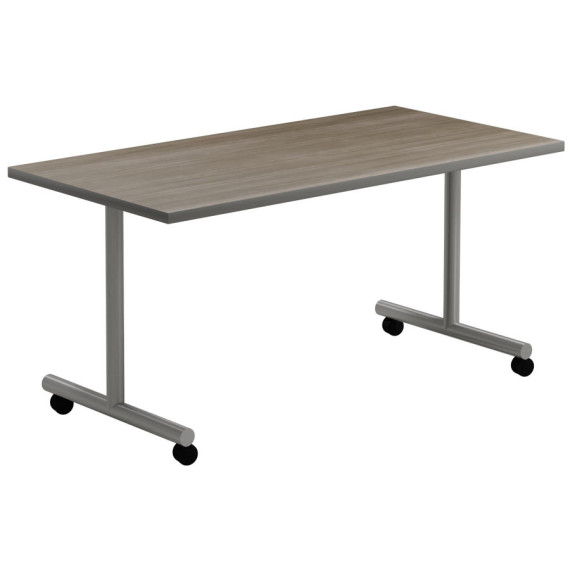

MT26-3060-29-4C

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

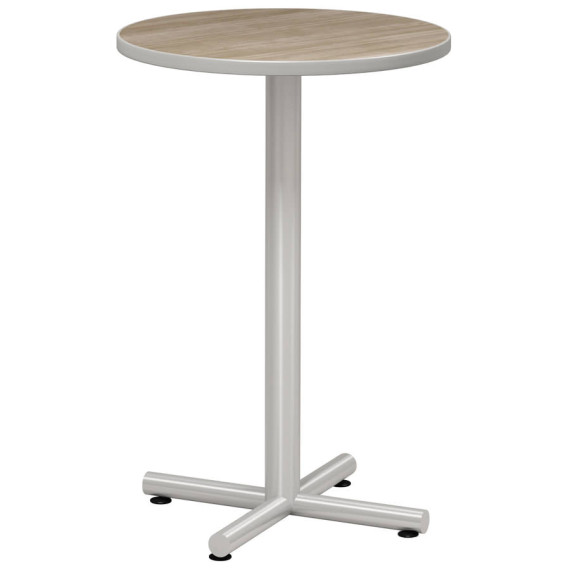

MX26-0030-42

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

MX436-C0048-29

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

MX26-C0036-29

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

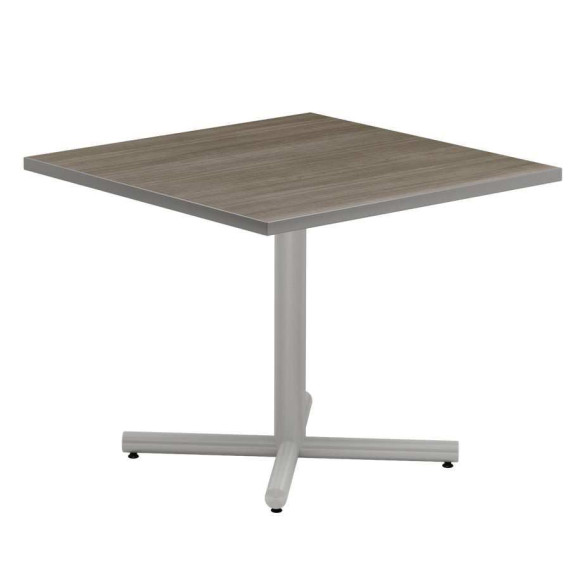

MT32-C3636

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

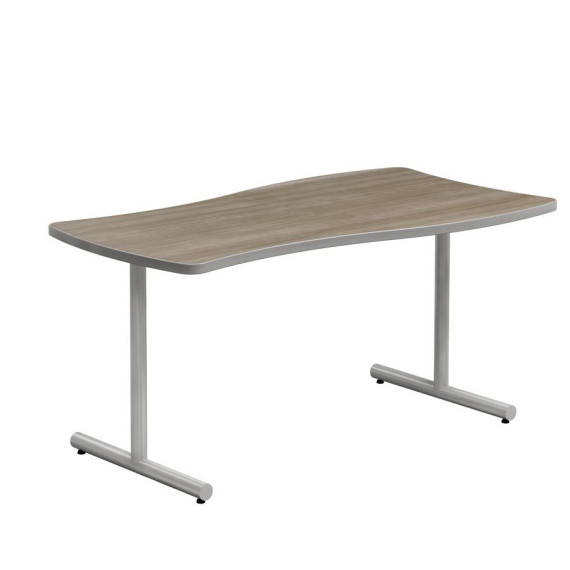

MT26-C3660FLR (Flair)

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

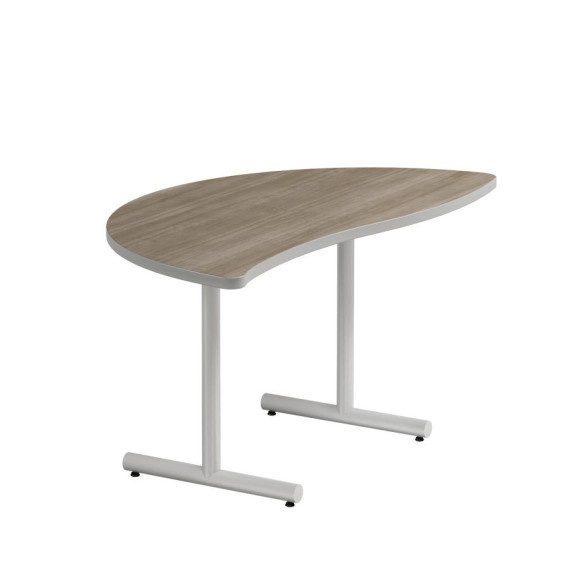

MT22-C3660-BNR (Beanie)

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

MT22-C3060

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

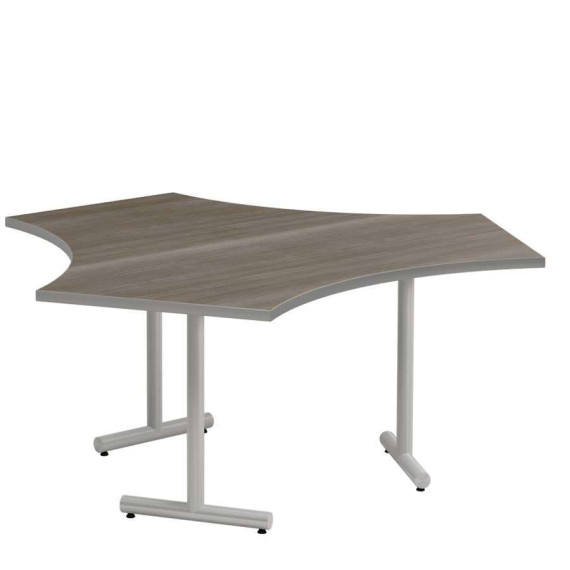

MT18-C6060S (Sprocket)

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

MT26-JRT3672

Add to My Project Board

Log in or create an account to create a project board.

Milestone - mediatechnologies

MTT32-CBT36/4896-29

Add to My Project Board

Log in or create an account to create a project board.

Milestone

Tried and true, Milestone's traditional style provides visual appeal and reliability to any space. Choose a laminate and powder coat finish that speaks in your space. From café to classrooms, and reading spaces to conference rooms, Milestone's breadth of sizes and heights fit many applications. Dress Milestone up with floating modesty panels, Surboard markerboard, 2 or 4 casters for mobility or folding base and/or flip-top mechanisms. All Milestone bases come fitted with 1" diameter levelers.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets
Instructions

  • Table tops are 1-1/4" thick, three-ply 45# particle board construction, with .050" high-pressure laminate top surface and a .030" phenolic backer. Square corners on banded tops have 1/8" radius, square corners have 1/2" radius and rounded corners on all tops have a 2" radius.
  • Can be specified to be adjustable height via a spring clip mechanism, range is 9". (26-35”H is standard range)
  • All bases are supplied with 1" diameter levelers
  • T-base single column and double column: 13 gauge, 2" diameter column and mainbar, 11 gauge stamped steel mounting plate, 10" x 10" (or 12" x 12" for single column bases with mainbars over 30" wide).
  • Folding base mechanism: nylon injection molded body with an extruded aluminum mechanism is bolted to leg frame via a threaded insert. Mechanism is attached to the underside of work surface using a 1" #12 wood screws.
  • Flip-top mechanism: Two-part steel mechanism is joined via a pivot system. Upper component attaches to the underside of work surface using 1" #12 wood screws. Lower component bolts to the leg frame via a threaded insert.
  • Options: (2) and (4) casters; floating modesty panels.

Overall Dimensions
Heights: 29", 36", 42"
Widths: 24", 30", 36", *48", *60"
Lengths: 36", 48", 60", 72", 84", 96", 120", 144"
Diameters: 42", 48"

* 48" and 60" wide tables require TT-Base.

Note: Beanie, Flair and Sprocket top tables receive 2" radius corners.

Finishes

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Silver 809 (G1) *Porter & Kineticos Approved
Powder Coat Colors

OPTIONS: 20

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
