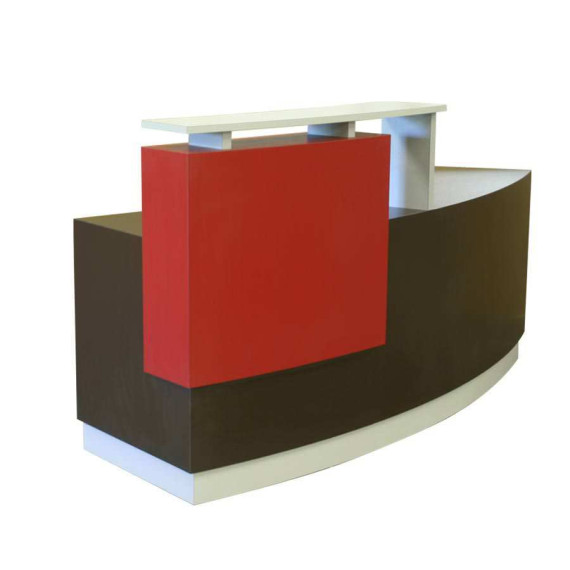

Main unit: MLDR-C3048L-30 Return unit: MLRR-C3036L-30

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

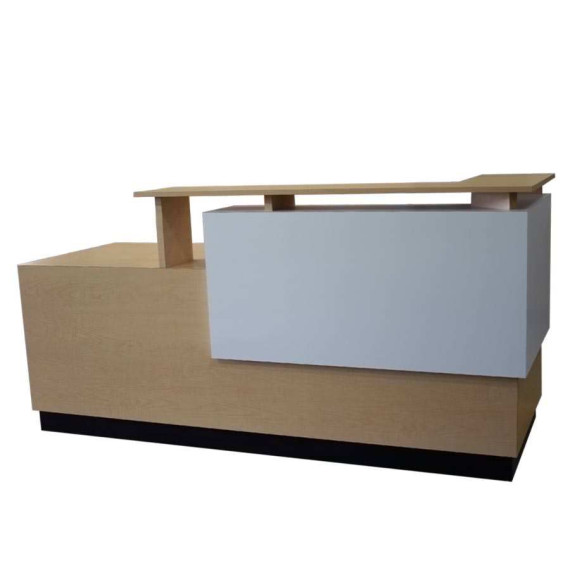

MLDL-3084-30

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

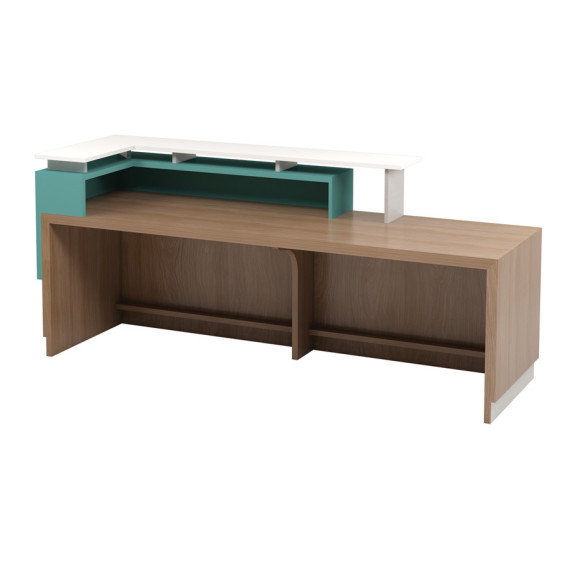

MLDL-3084-30 (user side)

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

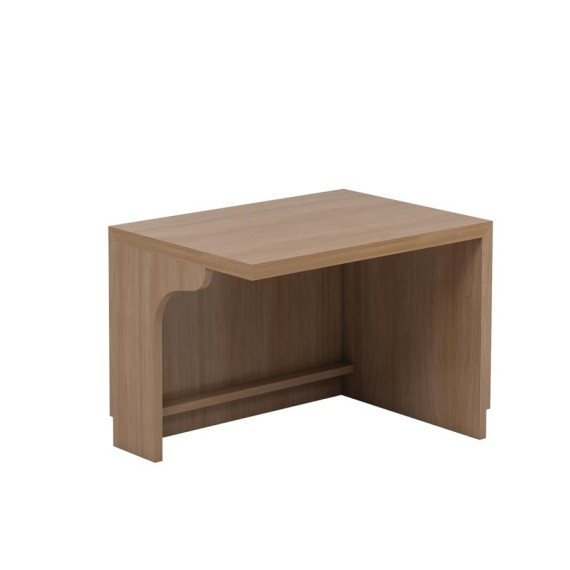

MLRR-C3036-L

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

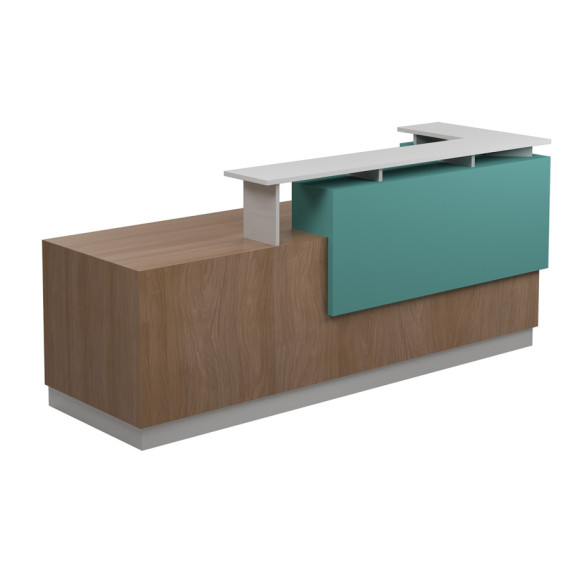

Main unit: MLDL-C3048L-30 Return unit: MLRL-C3036L-30

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

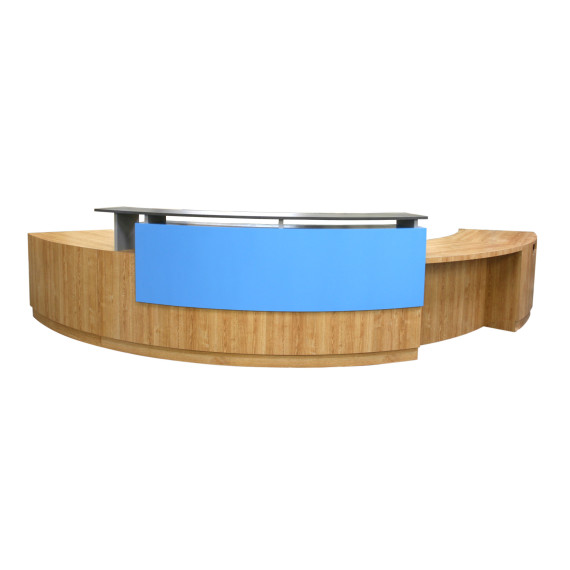

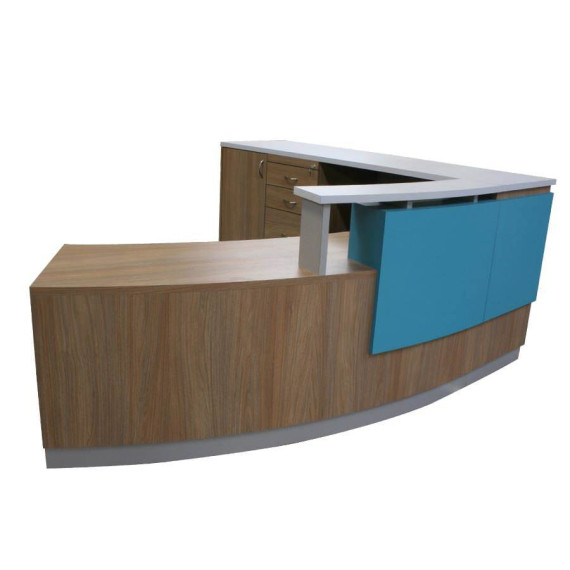

Custom Curved Milan Desk

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

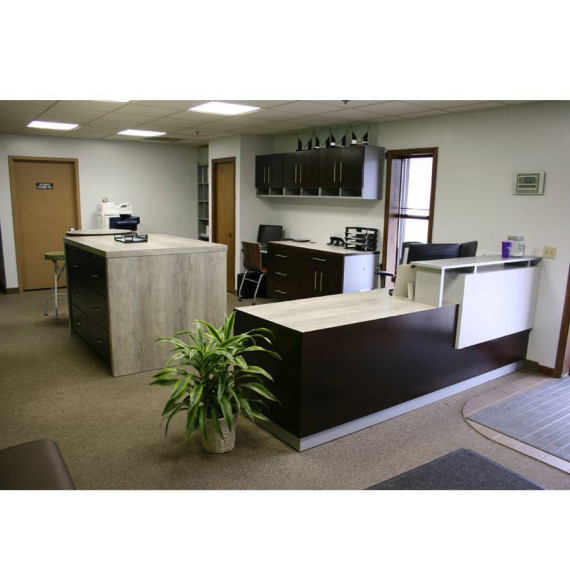

Custom Curved Milan Desk with Storage (10808)

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

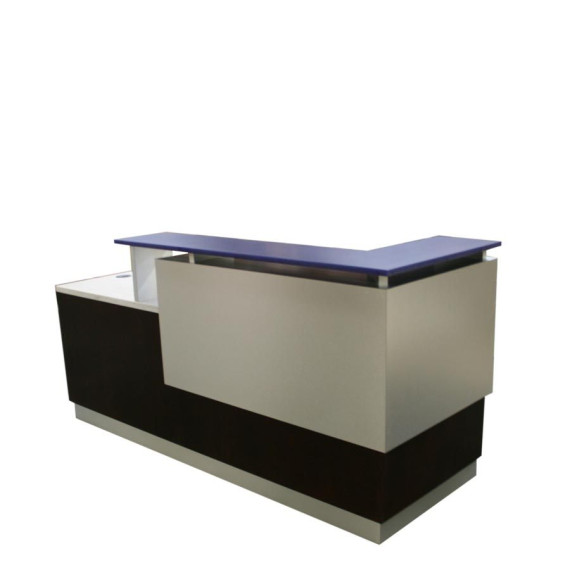

This Milan Desk features metal HPL Accent with solid surface work surface for the University of Michigan

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

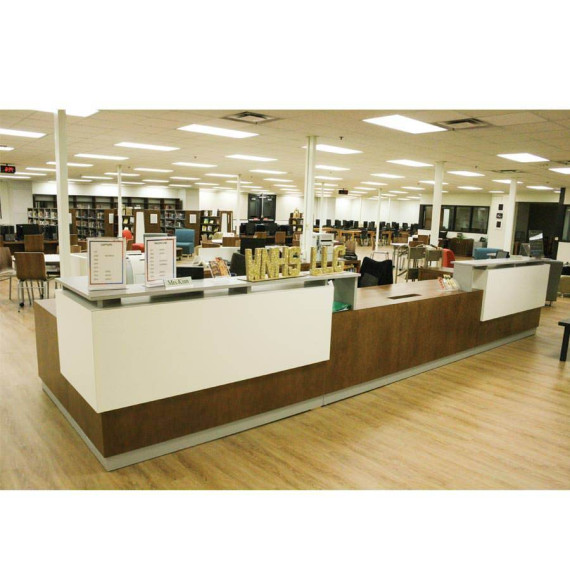

Wheaton North

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

mediatechnologies

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

Custom Curved Milan Desk (11921)

Add to My Project Board

Log in or create an account to create a project board.

Milan

Configure Milan Desk to fit your needs with three sizes of right and left main units and 36” return units. High-pressure laminate work surface. Transaction top included on main desk units. Grommets are available and should be ordered separately. Available in premium wood veneer or high-pressure laminate finishes. Contact the factory about combining finishes for a unique signature piece or to match a design motif. Power and connectivity available, see our Connect brochure for available options.

See Full Description

Cut Sheets
Forms
AutoCAD
List Price Sheets
Hi-Res Images

  • Main Desk Base/Toe: The main desk unit is comprised of two (2) end panels of 1-1/8” particle board core with high-pressure laminate or wood veneer finish on one surface and .030” phenolic backer on the other, each with a 3/4” thick particle board core overlay panel with .050” high-pressure laminate or wood veneer finish. The end panels are fastened to an 11/16” particle board front face panel with .050” high-pressure laminate or wood veneer finish. The unit sits on a 4” high toe of 11/16” particle board core with high-pressure laminate faces. All edges are self edge. The work surface is 3/4” thick particle board core with .050” high-pressure laminate surface. The 4” deep bottom shelf is 11/16” particle board core with .050” high-pressure laminate face and .030” phenolic backer. The bottom shelf is self edged.
  • Transaction Top and Support Assembly: Transaction Top work surface is 11/16” particleboard core with .050” high-pressure laminate faces and 3mm PVC banding. Transaction top supports are 1-1/8” particleboard core with .050” high-pressure laminate faces and are self edged. Transaction top support assembly is 1-1/8” particleboard core with .050” high-pressure laminate or premium oak veneer (unless another species is specified) and self edged. (Transaction top is typically not included in construction of returns).

Overall Dimensions
Depth: 30"
Widths: 84", 96", 120"
Worksurface Height: 30"
Transaction Top Height: 42"


Return Unit Overall Dimensions
Depth: 30"
Widths: 36", 42", 48"
Height: 30"

Finishes

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.
