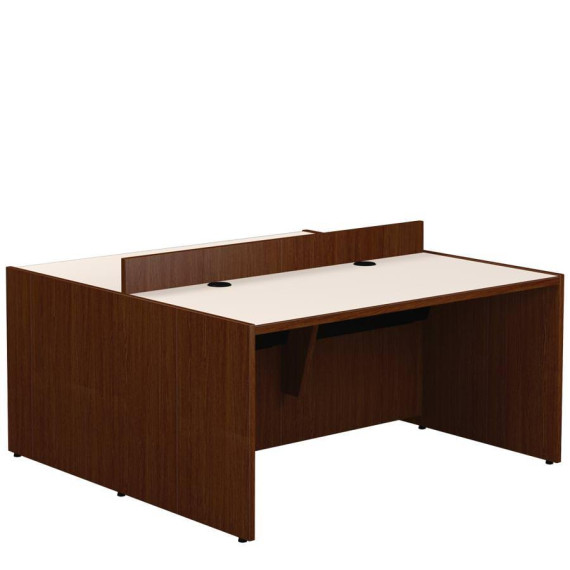

MWXD-T-3060-29

Add to My Project Board

Log in or create an account to create a project board.

Matrix - mediatechnologies

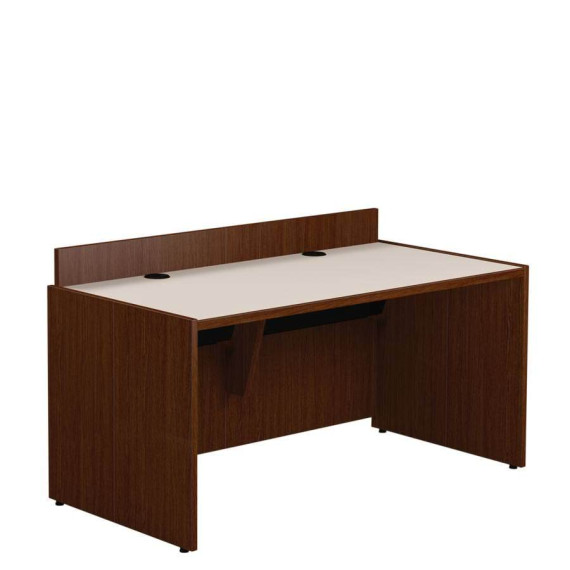

MWXS-T-3060-29

Add to My Project Board

Log in or create an account to create a project board.

Matrix - mediatechnologies

MWXC-T-303048-29

Add to My Project Board

Log in or create an account to create a project board.

Matrix

By Matrix

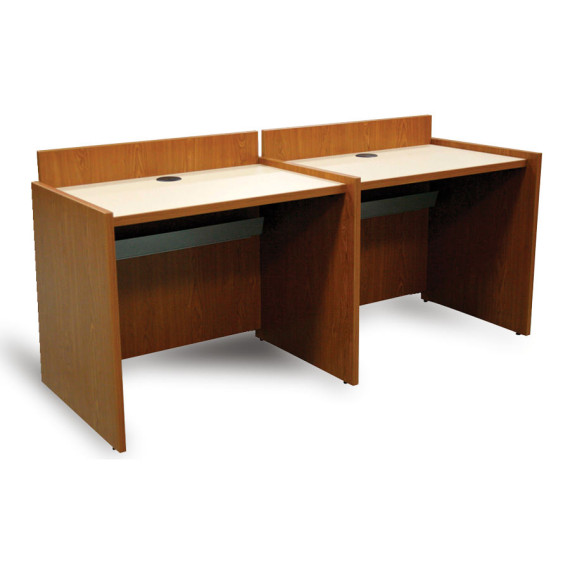

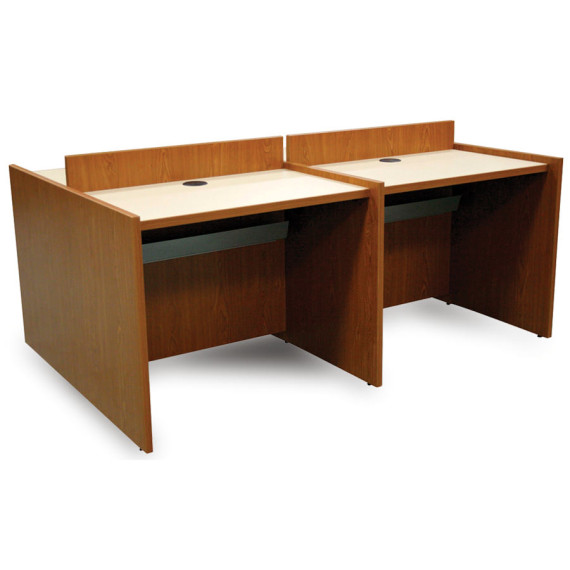

Make the most of your space with single or double face Matrix work stations. This starter/adder construction allows you to link together as many units as you need! Choose any high pressure laminate (HPL) for work surface and coordinating PVC edge. For end panels choose any thermally fused laminate (TFL)

See Full Description

Cut Sheets
AutoCAD
List Price Sheets
Instructions

  • Tops are 1-1/4" thick, three ply engineered wood construction with .050" high pressure laminate and a phenolic backer. The front edge is banded with 3mm PVC with a 1/8" radius top and bottom. Tops are attached with 1" #12 screws to the side and back panels with (3) steel Z brackets that are located in the underside of the top.
  • Top includes (1) 80mm grommet per user.
  • End/intermediate panels are three ply engineered wood with thermally fused laminate on both sides, 1" thick. Double faced study carrels share a common side panel. Panels are banded with 2mm PVC with 1/8" radius on all edges. Panels are banded on the top and vertical edges. Panels have embedded threaded metal inserts to accept machine threaded connecting hardware for metal-to-metal fastener contact for mounting work surfaces. Panels are machined to accept shoulder screws that are used to attach back panels to end and intermediate panels. Overall panel height is 30" high. Each panel is equipped with two adjustable glides. Intermediate panels are equipped with (1) through hole on single faced panels and two on double faced panels.
  • Back panels are three ply engineered wood with thermally fused laminate on both sides, 1" thick. Double faced study carrels share a common back panel. Panels are banded with 3mm PVC with 1/8" radius on all edges. Panels are banded on top and vertical edges. Panels have embedded threaded metal inserts to accept machine threaded connecting hardware for metal-to-metal fastener contact for mounting work surfaces. On the thickness of the panels they are machined to accept recessed mod-eez clips, which are used to attach back panels to end and intermediate panels. Overall panel height is 35" high.
  • Each station is equipped with one formed 18 gauge steel trough that is mounted to the back panel using #8 wood screws for wire management.
  • Matrix units may be disassembled and reconfigured. Adder units are similar to initial units but substitute one intermediate panel for two end panels.

Overall Dimensions
Single and Double faced modules

Heights: 29"
Depths: 24", 30"
Widths: 36", 60"

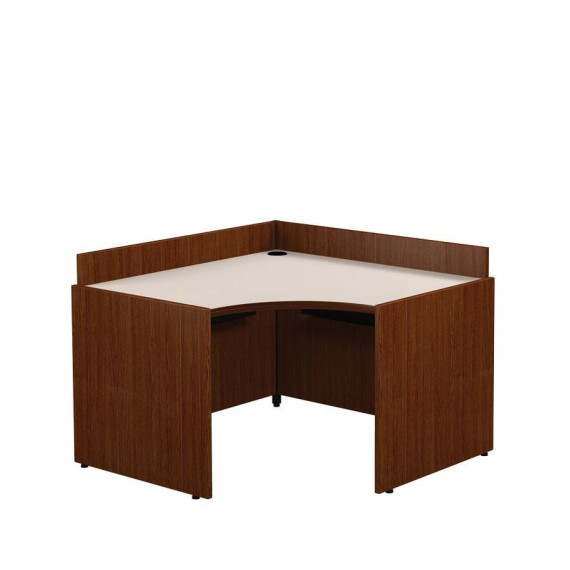

Corner modules

Height: 29"
Depths: 24", 30", 36"
Widths: 36", 42", 48"

Finishes

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.
