Kineticos - mediatechnologies

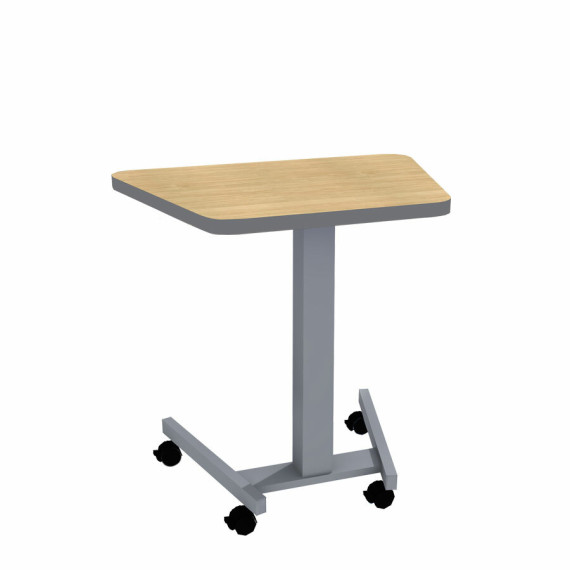

KNS-C2028TRAP-ADJPN-4C

Add to My Project Board

Log in or create an account to create a project board.

Kineticos - mediatechnologies

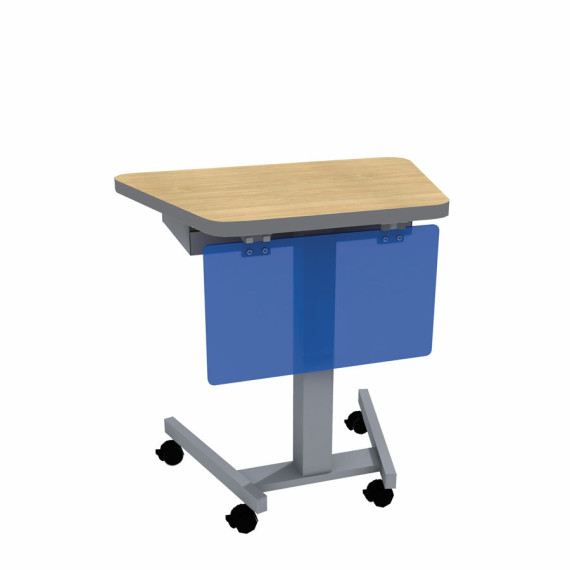

KNS-C2820TRAP-ADJPN-4C - Shown with book box & 3form Acrylic modesty panel

Add to My Project Board

Log in or create an account to create a project board.

Kineticos - mediatechnologies

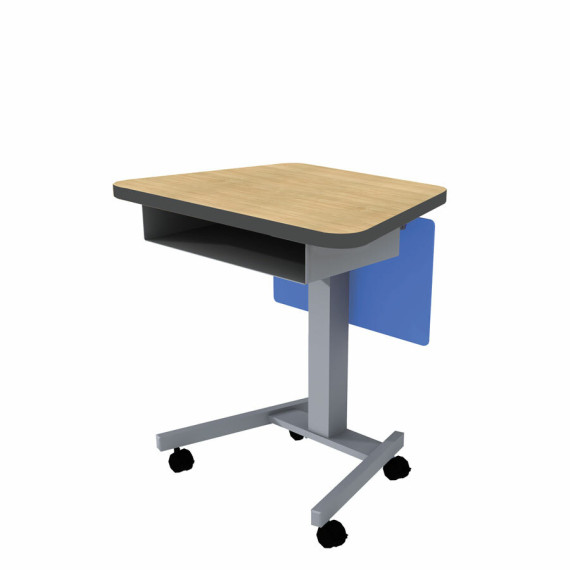

KNS-C2820TRAP-ADJPN-4C - User Side - Shown with book box and 3form Acrylic modesty panel

Add to My Project Board

Log in or create an account to create a project board.

Kineticos

Stand, sit, take your teaching and learning platform to the next level. Kineticos is designed for flexibility as well as on-demand adjustability. Available in Trapezoid, Boodle, and Rectilinear work surfaces; optional modesty panel, book box. Casters are standard.

See Full Description

Cut Sheets
List Price Sheets

Table Top: Table tops are 1-1/4” thick, three-ply 45# particleboard construction with .050” high-pressure laminate top surface, a .030” phenolic backer and a 3mm PVC edgeband. Square corners on banded tops have a 1/8” radius.

Adjustable Height Base: Two-stage column is 2mm square powder coated steel tube. Outer tube is 2.76”. Inner tube is 2.48”. Foot is 1.5” x 1” machined powder coated steel bar. Each foot is fitted with (2) 1.5” casters. Top of column fitted with 8” x 8” x ¼ powder coated steel mounting plate. Base height is adjusted pressure handle. Base adjustment range without top is 26-7/8"-41-1/4”.

Optional Modesty: HPL Modesty panels are 3/4” thick particleboard construction with .050” high-pressure laminate front and back surfaces with a 3mm PVC edgeband. Square corners on banded tops have a 1/8” radius. 3Form Acrylic Modesty are ¼” thick with ½” radius on the corners and have polished edges. Modesty panel is fastened to underside of work surface with two hinged quick connect brackets.

Optional Book Box: Book box is 18 ga formed powder coated steel, 3.75”H x 20”W x 11.5”D. The steel box attaches to the top using #8 machine screws through the built-in flanges.

Optional Backpack Hook: Powder coated flat black, 2” x 2.36” 14 ga. bent steel. Screws included. Tested to hold up to 100 lbs.

Overal Dimensions:

Rectangle:
Depth: 21"
Width: 26"
Height: 28.125"-42.5"

Boodle:
Depth: 24"
Width: 30"
Height: 28.125"-42.5"

Trapezoid:
Depth: 20"
Width: 28"
Height: 28.125"-42.5"




Finishes

Satin Ice
Acrylic - Grade 1

OPTIONS: 1

1 Silver AC03
Felt - Grade 1

OPTIONS: 12

Admiral
Felt - 3form Grade 2

OPTIONS: 21

Asian Night 7949K-18
Laminate-Premium

OPTIONS: 20

Neutral Twill 8826-58
General Laminates

OPTIONS: 90

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Silver 809 (G1) *Porter & Kineticos Approved
Powder Coat Colors

OPTIONS: 20

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.

NERO INGO - 0720
Fenix - Standard Core

OPTIONS: 4

Do you want an eSports Innovation Center or Classroom with no glare tables? Fenix is the solution for you with low light reflective surfaces and an amazingly soft touch.
