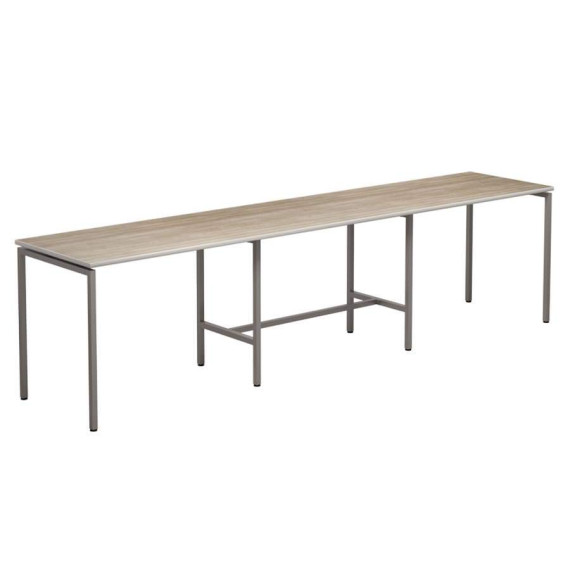

GTX Community Table
GTX Community... gather, brainstorm, or sit quietly alone. GTX Community has room for all! The worksurface awaits your choice of high-pressure laminate and sits upon a robust powder coated frame. Choose from our available powder coats. The frame includes adjustable leveling glides in all 8 legs.
Brochure
- Anyspace Café Brochure (.pdf, 9.588 MB)
Cut Sheets
- GTX Community Cut Sheet (.pdf, 782.778 KB)
AutoCAD
- GTX Community AutoCAD (.zip, 10.835 MB)
List Price Sheets
- GTX Community List Price Sheet (.pdf, 110.662 KB)
- Table tops: 1-1/4” thick, three-ply 45# particleboard construction with a .050” high-pressure laminate top surface and a .030” phenolic backer.
- Corners for rectilinear tops: Square corners on banded tops have a 1/8” radius. Top floats on 3/4” spacers bolted through the steel frame assembly into the underside of the work surface.
- Leg and Frame Assembly: 4 sets of 14-gauge powder coated steel leg frames bolt into a double steel keel assembly. Welded end frames consist of 1-1/2” square, 14 gauge steel tubing. End frames are connected to (2) 1-1/2” square steel tube spanners using 1/4-20 machine bolts. 3/4” diameter x 3/4”H spacers are placed between the top and the understructure. Frame assembly attaches to work surface using 1/4-20 machine bolts. Legs are fitted with adjustable leveling glides. Twin wheel locking casters are optional.
Overall Dimensions
Depths: 24", 20", 36", 42", 48"
Widths: 96", 120"
Heights: 36", 42"
Finishes
General Laminates
OPTIONS: 87
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
Standard PVC Selections
OPTIONS: 37
PVC Applies to front edges as well as work surface edges in 3mm PVC.
* Indicates available for work surfaces only.
Powder Coat Colors
OPTIONS: 20
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
