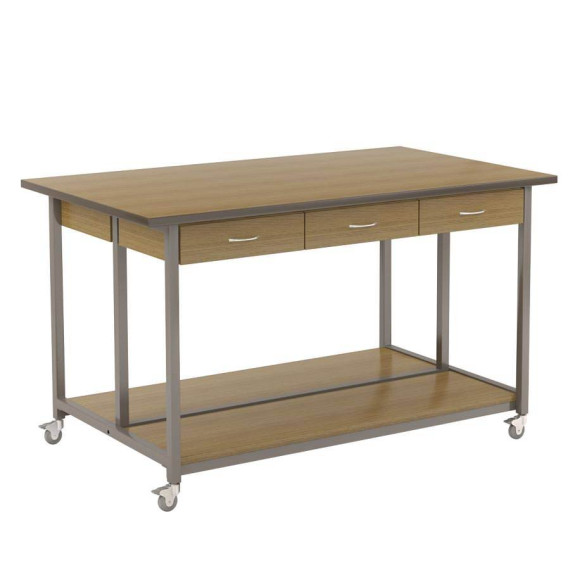

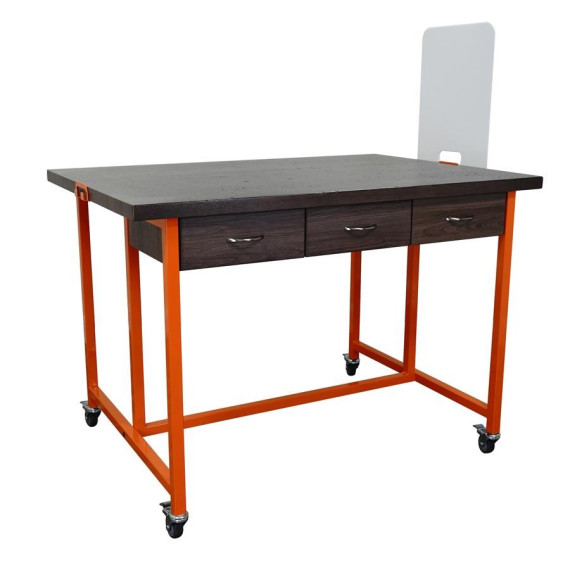

EDO-BB4260-42-SFB with ED-3SD60-TT drawer storage
Log in or create an account to create a project board.
EDO-BB4260-42-SFB with ED-3SD60-TT drawer storage
Log in or create an account to create a project board.

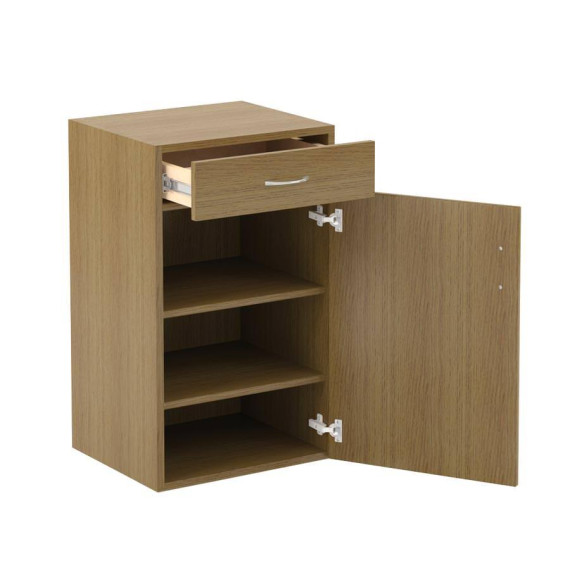

EDS-SDCS_Edison Cupboard Storage. Door available with L or R hinge.
Log in or create an account to create a project board.
EDS-C4272-42 shown with an ED-3SD72 component added to each face
Log in or create an account to create a project board.

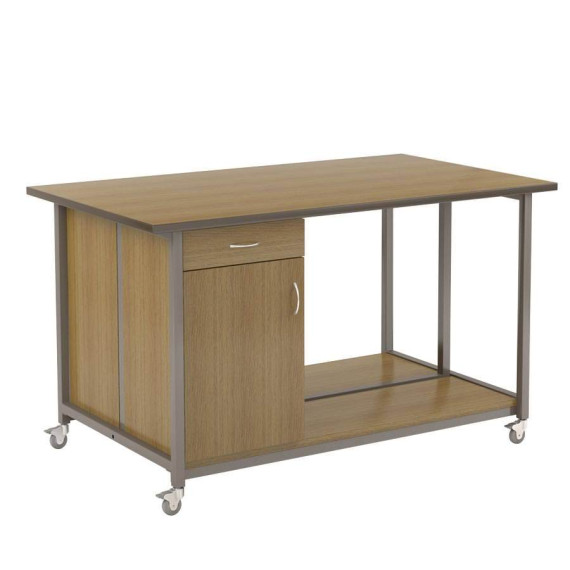

EDS-C4272-42 shown with an EDS-SDCSL-242333 component added to each face
Log in or create an account to create a project board.
Log in or create an account to create a project board.

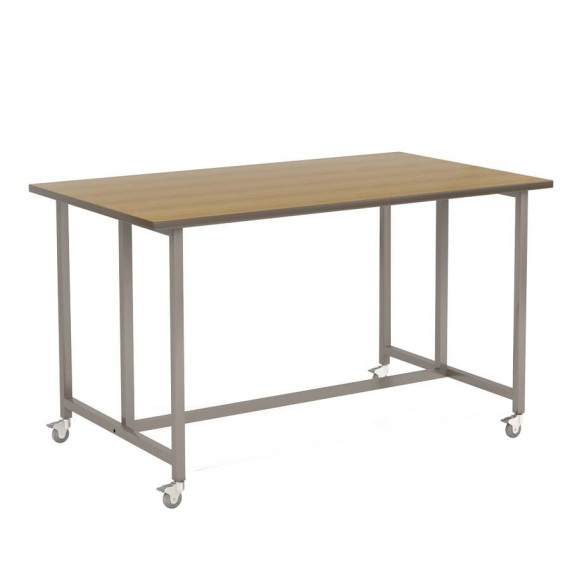

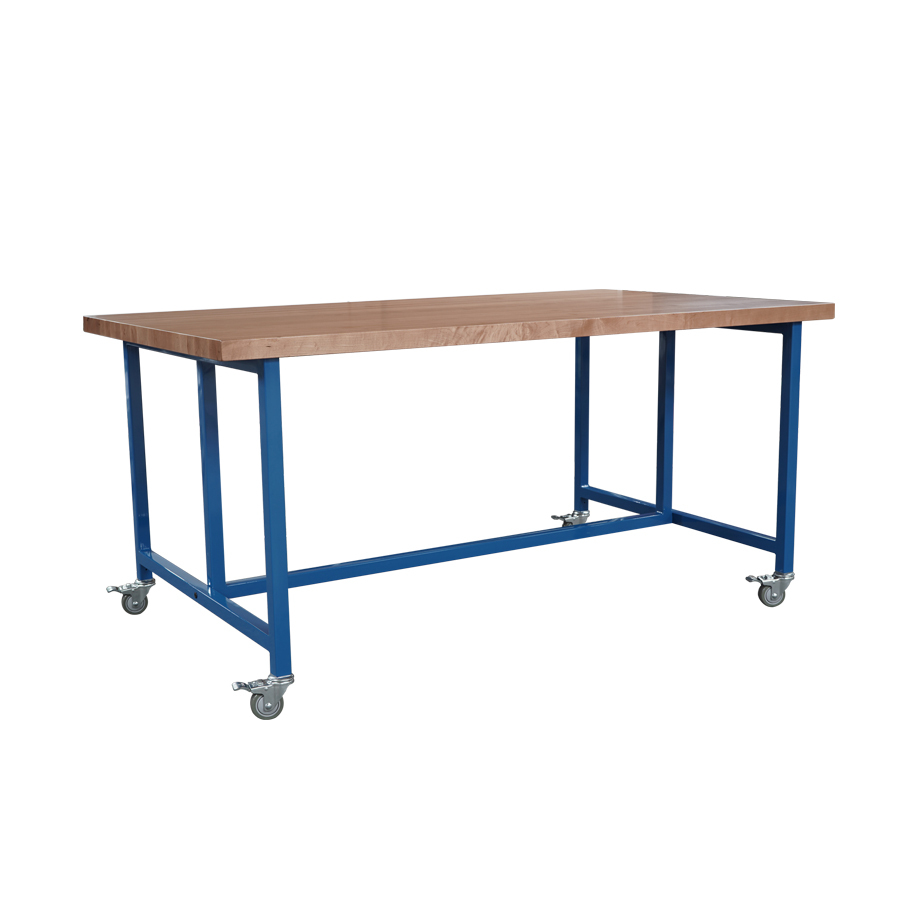

Edison Inventor Table
The Edison Inventor table is an ideal Work-Lab/Makerspace component. Its "no-nonsense" steel frame, heavy-duty casters and resilient high-pressure laminate worksurface ensure that it will not only stand up to the wear and tear that "inventors" may inflict upon it, but that it will do so for many years to come.
Here's a bright idea...accessorize your Edison table with drawer or drawer/cupboard storage components.
Cut Sheets
- Edison Cut Sheet (.pdf, 1.403 MB)
AutoCAD
- Edison Inventor Table AutoCAD (.zip, 815.019 KB)
List Price Sheets
- Edison Table Price Sheet (.pdf, 283.054 KB)
Instructions
- Edison Installation & Assembly Guide (.pdf, 692.088 KB)
- Table Top: Table tops are 1- 1/4”” thick, three-ply particleboard core with .050” high-pressure laminate top surface and .030” phenolic backer, edge type is 3mm PVC (C) or 1-3/4" maple butcher block top.
- Solid phenolic top is also available. Contact factory for details.
- Frame Assembly: Each frame end is fully welded 1-1/2” 16-gauge square powder coated steel tubing. The bottom of each leg is fitted with heavy-duty locking casters. Frame ends are bolted to a welded 1-1/2” 16-gauge square powder coated rectangular frame brace.

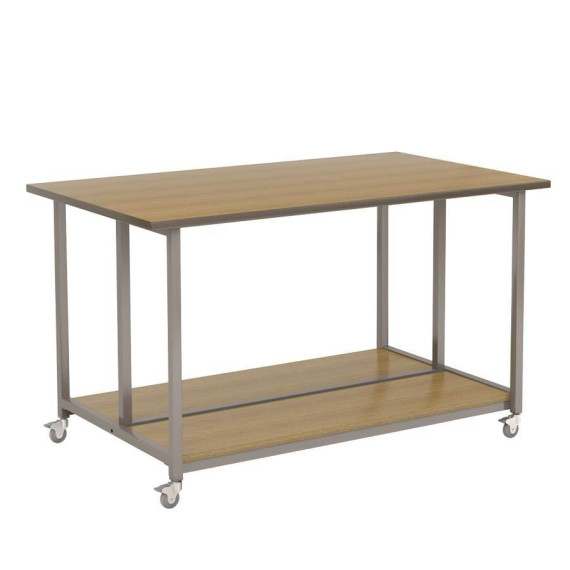

- EDO model features an open frame with a single rectangular frame brace. EDS model features an open frame with rectangular frame brace and 1/8” angle steel support rails for base shelves. Base shelves are 1” thick engineered wood core with high-pressure laminate or melamine faces and PVC edges. One base shelf is located on each side.

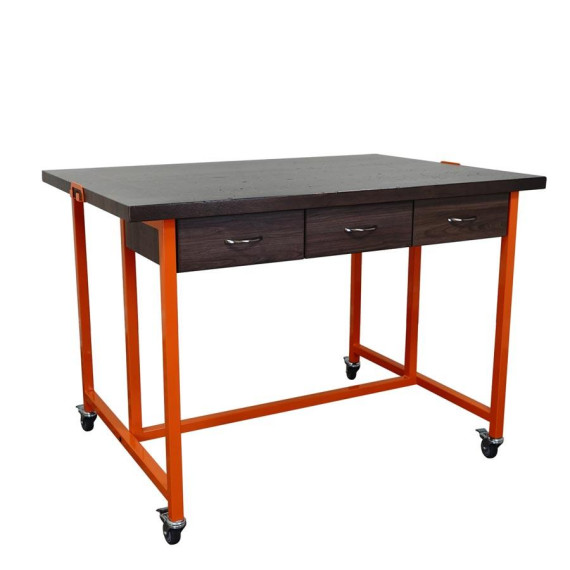

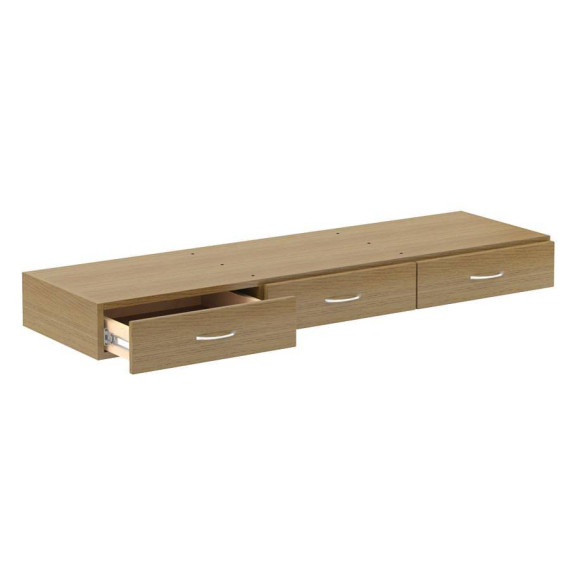

- Single-Face 3-Drawer Storage Option: A 3-drawer storage component is available for EDO and EDS model tables. Only one storage component may be added to each face of the table. Full 4-sided drawer boxes use 3/4” thick material with high-pressure laminate or melamine finish and PVC edges. Each drawer features a full extension slide and a nickel finish loop pull.
- Single-Face Drawer and Cupboard Storage Option: A single-drawer and cupboard storage component is available for EDS models only. Only one storage component may be added to each face of the table.
- Cabinet is constructed with 3/4” thick engineered wood side panels, sub tops and base shelf. high-pressure laminate or melamine box finish is applied to all faces.
- Full 4-sided drawer box uses 3/4” thick material with high-pressure laminate or melamine finish and PVC edges. The drawer features a full extension slide and a nickel finish loop pull.
- Shelves are 1” thick engineered wood with high-pressure laminate or melamine faces and PVC edge banding. Shelves are adjustable on 32mm increments.
- Cupboard doors are 3/4” engineered wood core with high-pressure laminate or melamine faces with PVC edges. doors are hung with concealed hinges and feature nickel finish loop pulls.
- Cupboards are NON-locking.
Overall Dimensions
Depth: 36", 42", 48"
Widths: 60", 72", 84"
Height: 30", 36" & 42"
Note: Butcher block tops are available in clear finish. Quantities of 12 or more are available in additional colors. Contact the factory for details.
Finishes
General Laminates
OPTIONS: 87
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
Melamines (TFL)
OPTIONS: 18
Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.
Standard PVC Selections
OPTIONS: 37
PVC Applies to front edges as well as work surface edges in 3mm PVC.
* Indicates available for work surfaces only.
Powder Coat Colors
OPTIONS: 20
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
