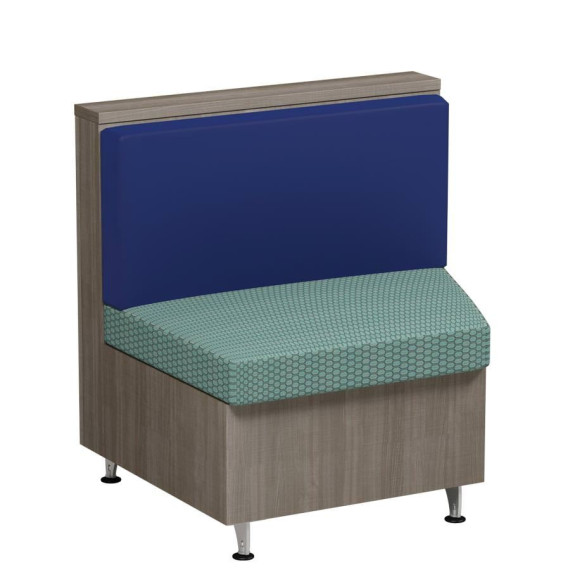

DUO-L35

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUO-RL45

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

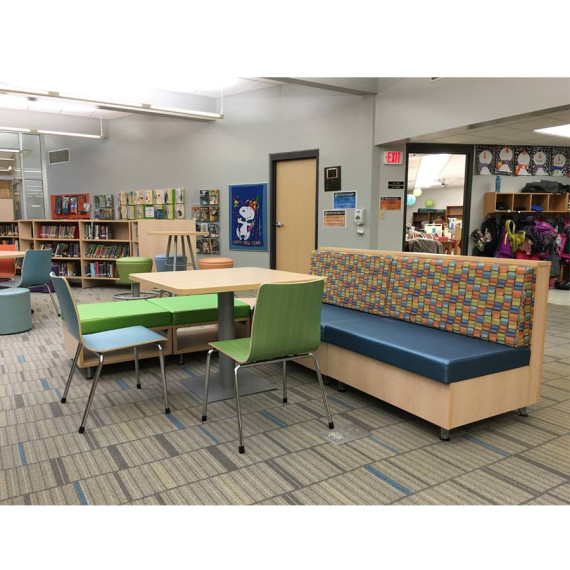

Tonawanda Elementary School

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

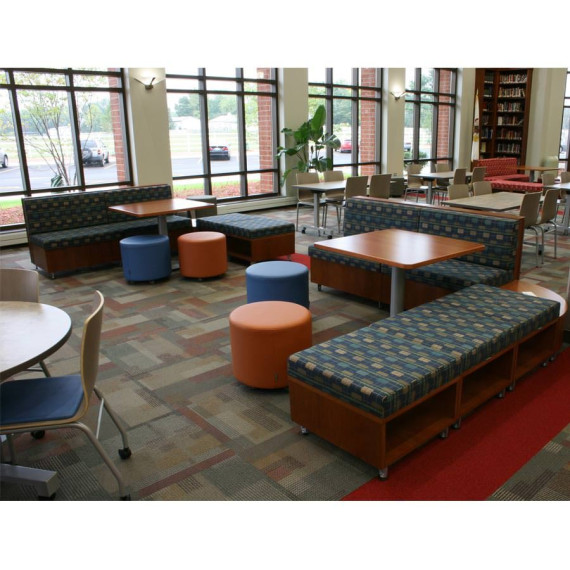

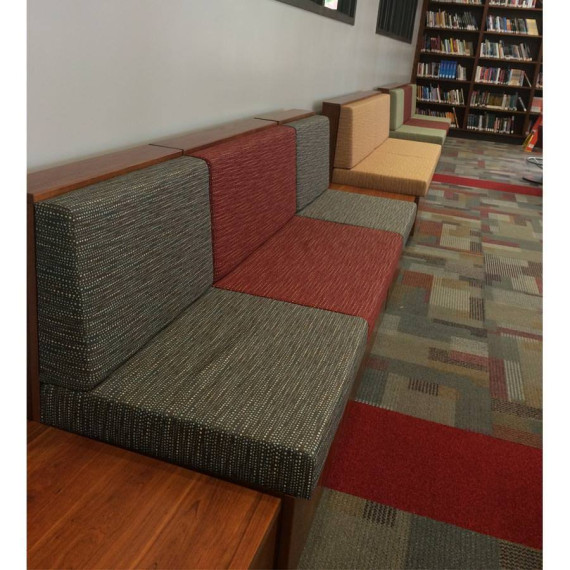

Yorkville High School

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

Yorkville High School

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

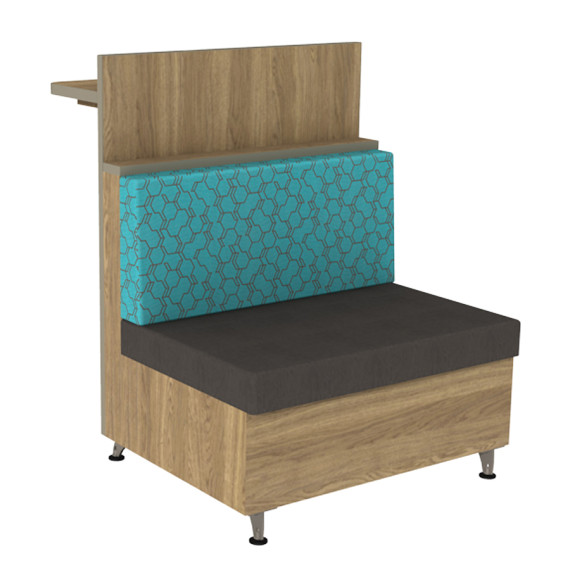

DUO2-36L-CC

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

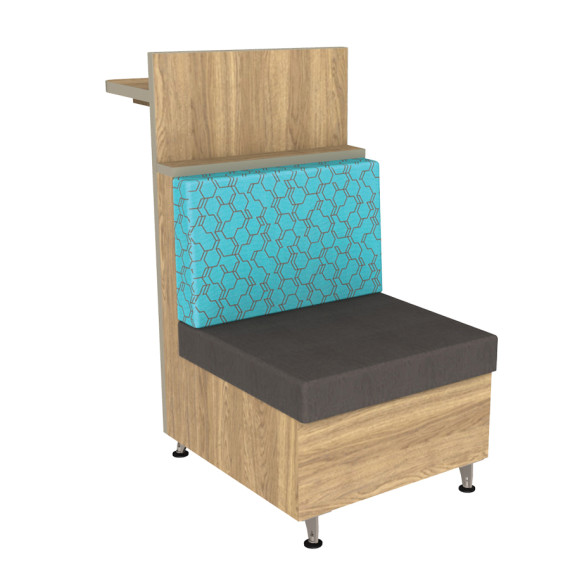

DUO2-25L-CC

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

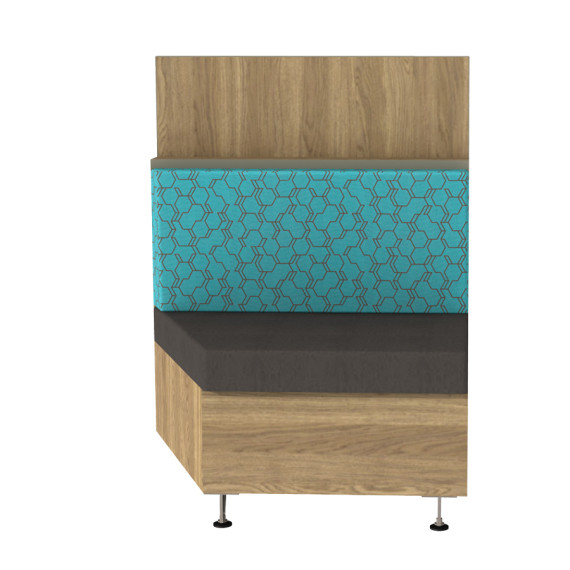

DUO2-L35L-CC

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

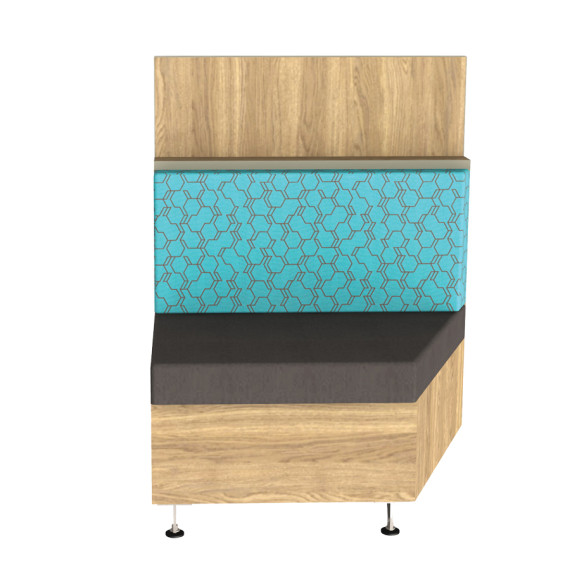

DUO2-R35L-CC

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

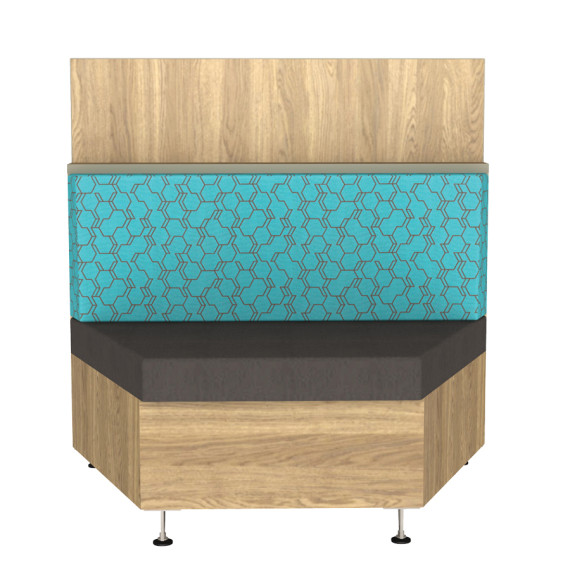

DUO2-RL45-CCL

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

George Sanchez

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

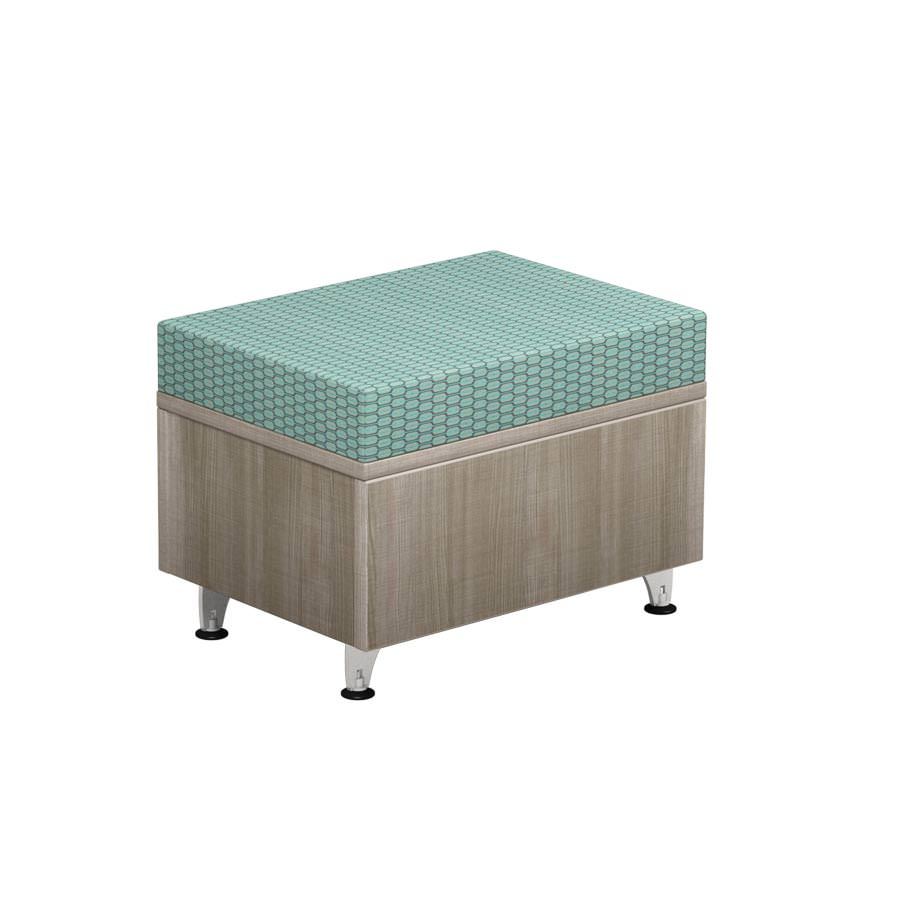

DUC-2418L-USC-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUC-2418L-USO-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUC-2424L-USC-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUC-2424L-USO-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUC-2435L-USCR90-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUC-2435L-USOR90-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUC-2436L-USOR45-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUC-2420L-USCR45-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUC-2420L-OUSCFR45-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

McClure

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUO-2442-OTUS-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUO-3636OTUS-18

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge - mediatechnologies

DUO-0036-OTUS

Add to My Project Board

Log in or create an account to create a project board.

Duo Lounge

Lounge seating for groups! Duo Lounge and Café is designed to connect to other seating and table components of the Duo Collection. Check out the other members of the Duo family and see what type of space you can build!

See Full Description

Brochure
Cut Sheets
Forms
AutoCAD
List Price Sheets
Hi-Res Images

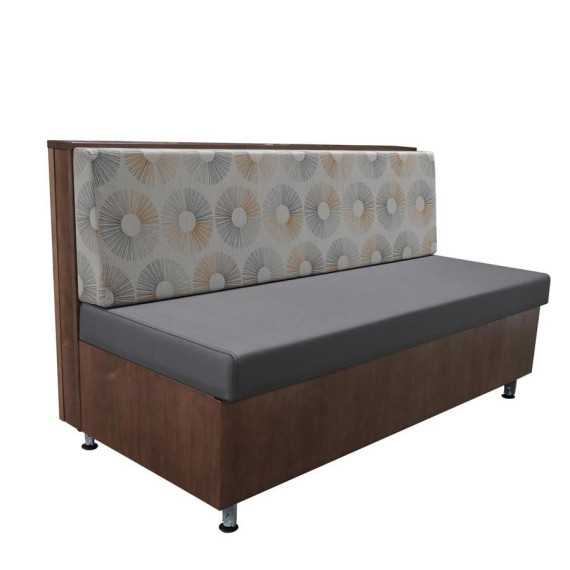

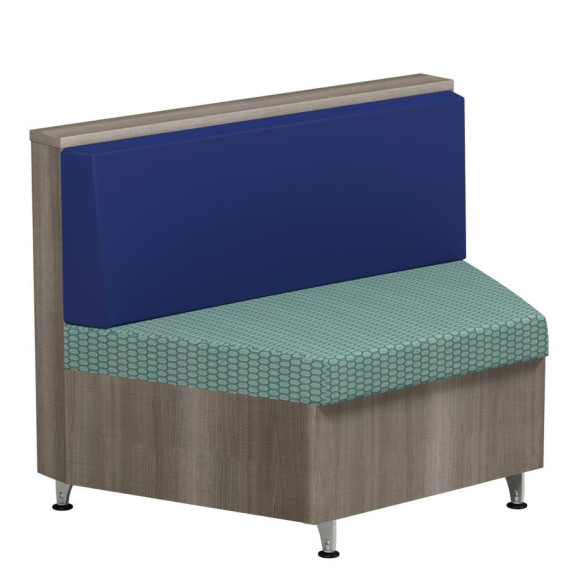

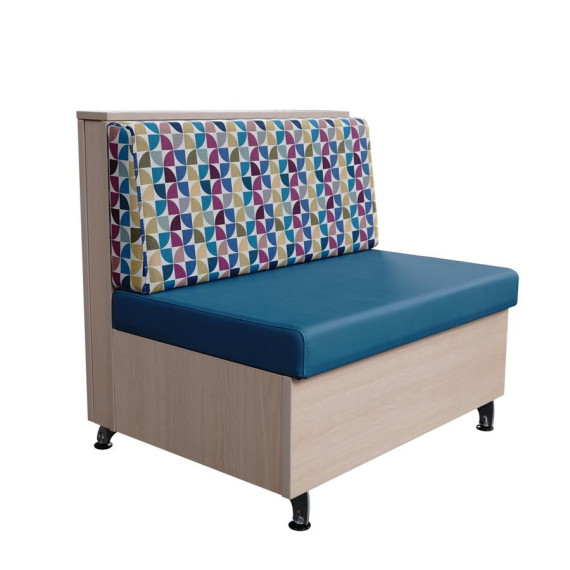

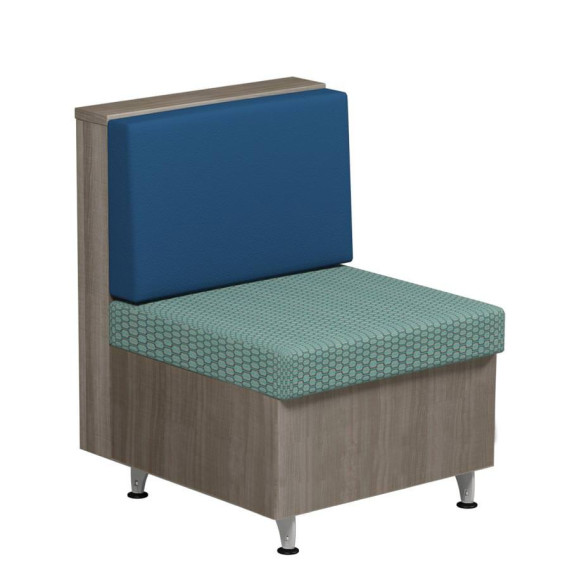

Duo Lounge

  • Available in multiple widths, as well as right, left, and center miter units.
  • Upholstered seat and back cushions are 3- 1/4" high density upholstered grade foam. Back cushions are tapered from 4" at the base to 3" at the top. Vinyl and fabric available and a combination of both. Upholstered seat and back cushions are fastened to the bench base and bench back with hook and loop fasteners.
  • Bench base and back assemblies are fabricated from 3/4" thick engineered wood with premium grade oak or maple veneer faces or HPL faces. Finished edges of veneer assemblies receive a 3mm solid wood edge. Finished edges of HPL assemblies receive a 3mm PVC edge. Bench base assembly is bolted to bench back assembly with metal-to-metal connection. Back panel can be finished in veneer or HPL face.
  • Leg assemblies are fabricated from 5/16" plate steel and include a curved profile with a square mounting plate. The bottom of each leg is fitted with a threaded weld nut and a 1-7/8" black leveling glide.

Overall Dimensions

Seat Depth: 23"
Depths: 28.5"
Widths: 25", 35.5", 36", 45.5", 48", 60"
Overall Height: 34.25
Seat Height: 18"

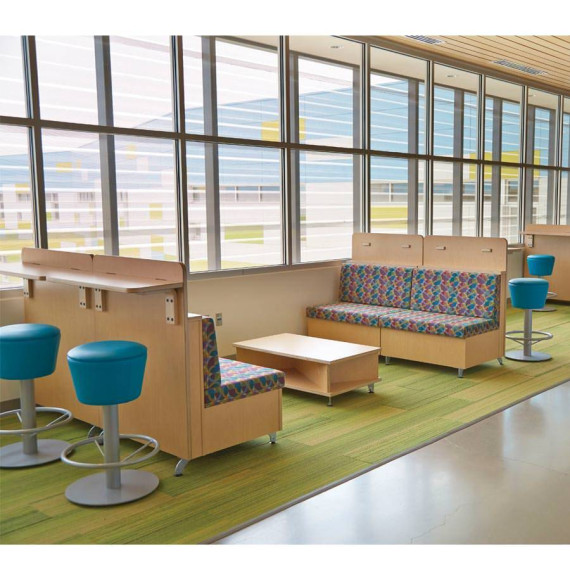

Duo Cafe Lounge

  • Available in multiple widths, as well as right, left, and center miter units.
  • Seat cushions are 3-1/4" high-density upholstery grade foam. Back cushions are upholstery grade foam, tapered from 4" at the base to 3" at the top. Seat and back cushions are fastened to the bench base and back with hook and loop fasteners.
  • Power options available
  • Legs are fabricated from 5/16" plate steel and includes a curved profile with a square mounting plate, the bottom of each leg is fitted with a black leveling 1-7/8" glide.
  • Base and back assemblies are fabricated from 3/4” engineered wood with HPL faces. Finished edges receive a 3mm wood (with veneer) or 3mm PVC (with HPL) edge.
  • Back panel and counter top are fabricated of 1” thick baltic birch with an HPL face. Edges are exposed baltic birch profiled square with radiused corners. 12” depth counter top is connected to back panel using both tongue and groove construction and (2) bent 1” oak or maple plywood “L” brackets.
  • Connectivity option

Overall Dimensions

Seat Depth: 19"
Depths: 40.6"
Widths: 25", 35.5", 36", 45.5", 48", 60"
Shelf Height: 42"
Overall Height: 46"
Seat Height: 18"

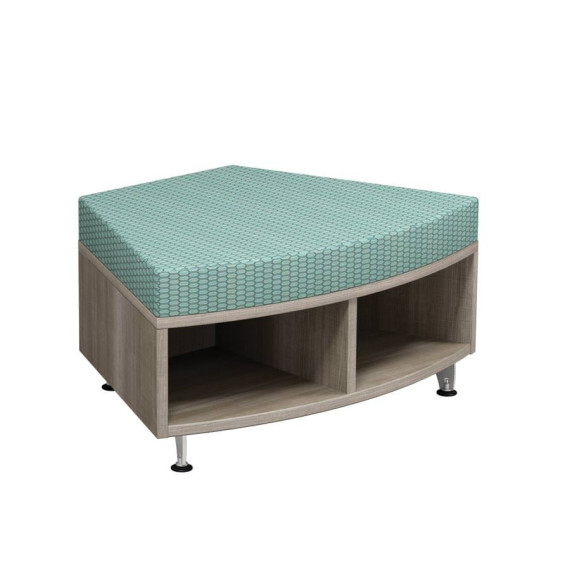

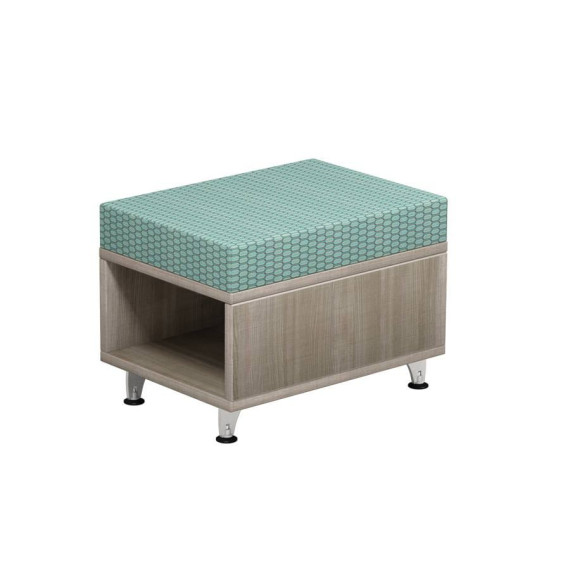

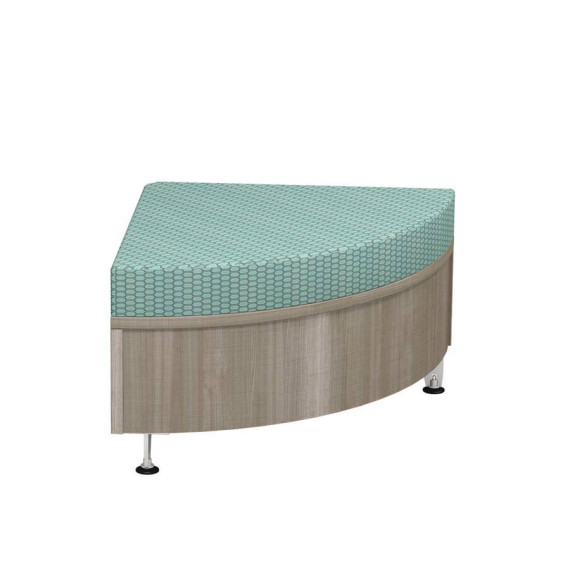

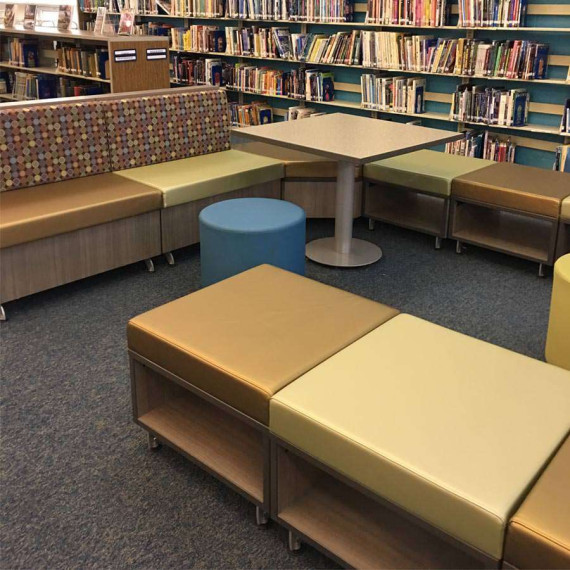

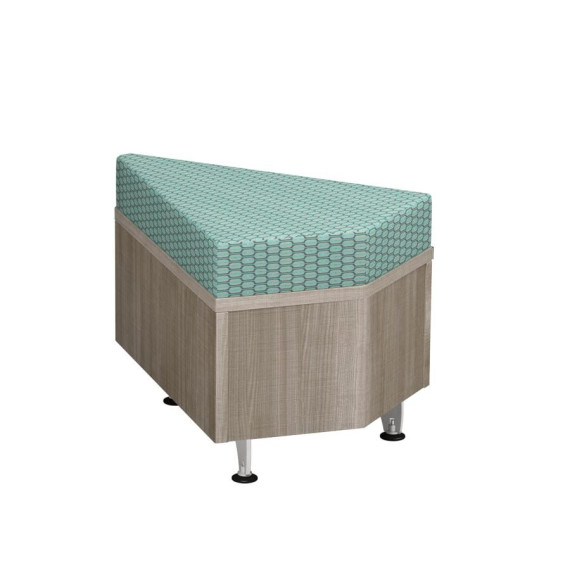

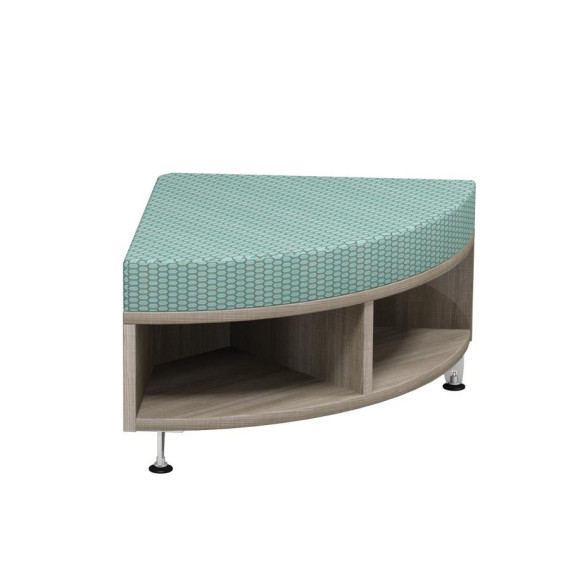

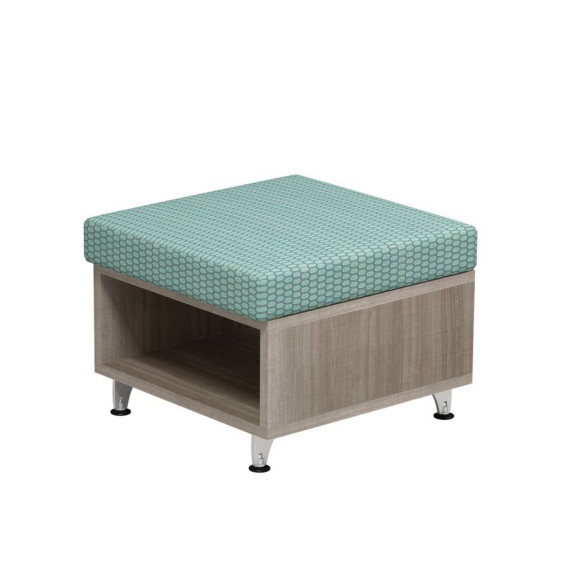

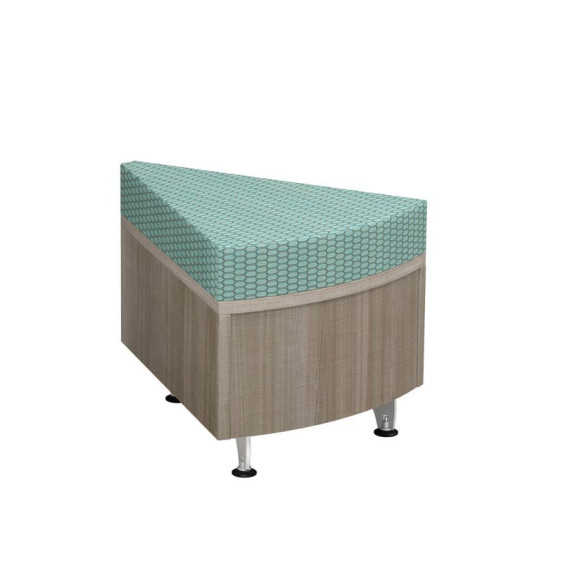

Duo Connectors

  • Seat: Fully upholstered seat cushion comprised of 3-1/4” high density foam.
  • Base Assembly: The base assembly is fabricated from 1” thick engineered wood with premium grade oak or maple with wood edges or high-pressure laminate faces with 3mm PVC edges.
  • Leg Assemblies: Legs are fabricated from 5/16” plate steel and include a curved profile with a square mounting plate. The bottom of each leg is fitted with a threaded weld nut and 1-7/8” black leveling glide.

Overall Dimensions
Depth: 24"
Widths: 18", 20" (45˚), 24", 35" (90˚), 36" (45˚), 52" (90˚)
Heights: 18", 25"

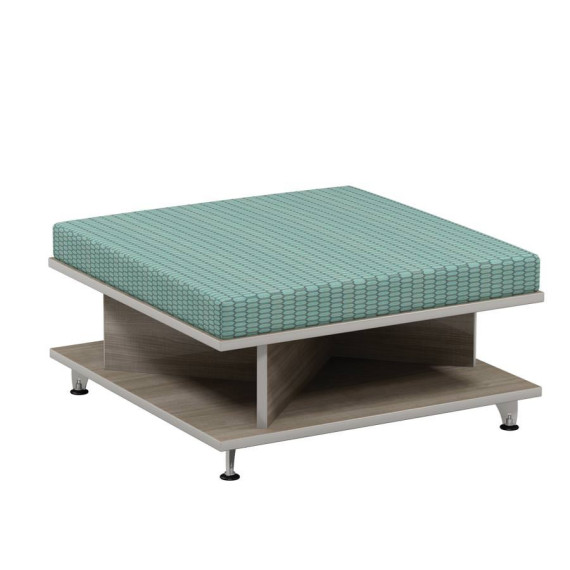

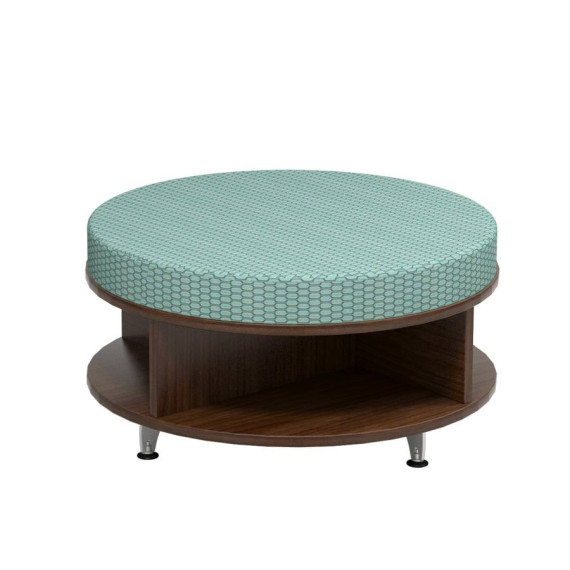

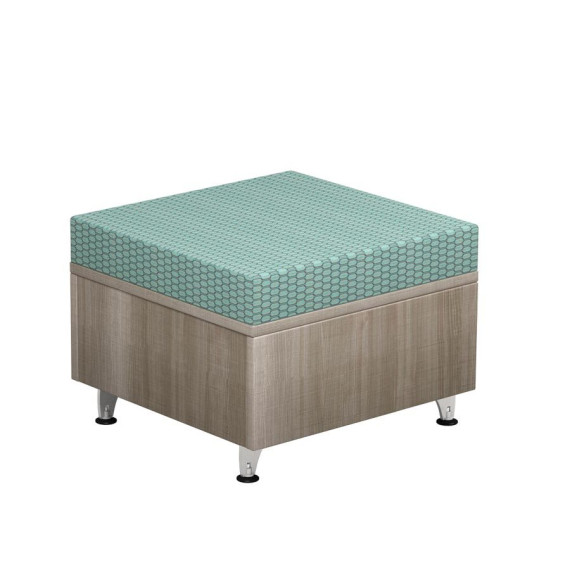

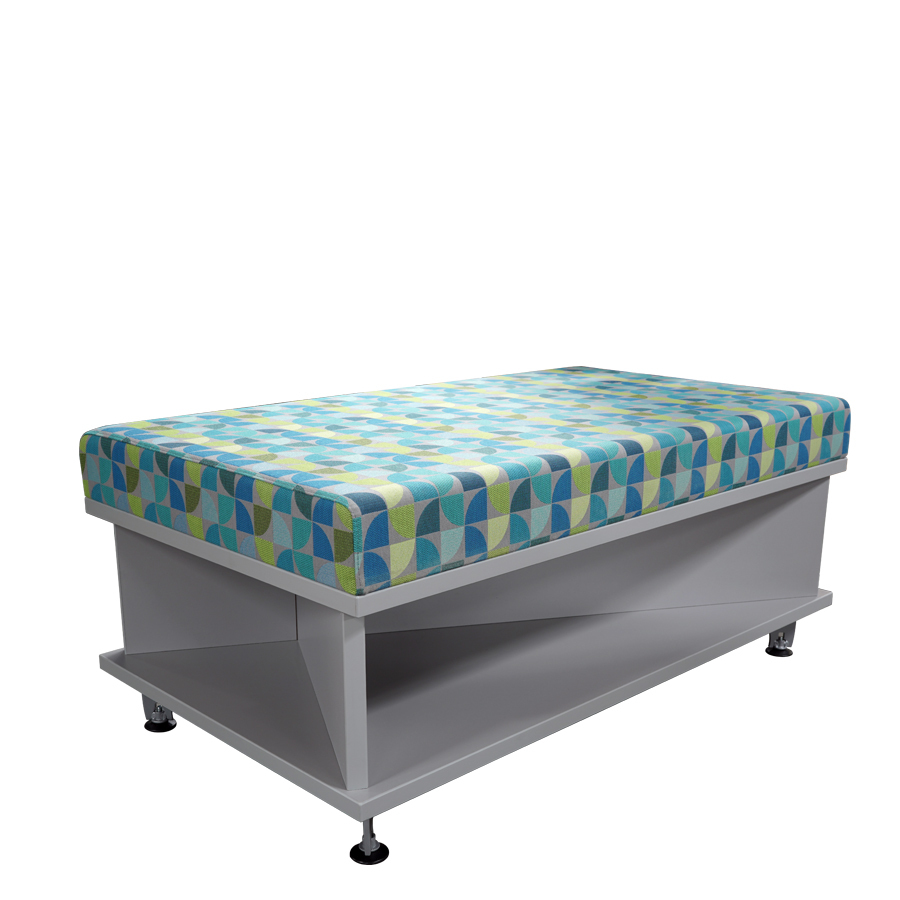

Duo Ottoman

  • Seat: Fully upholstered seat cushion comprised of 3-1/4” high density foam.
  • Base Assembly: The base assembly is fabricated from 1” thick engineered wood with premium grade oak, maple or high-pressure laminate faces and 3mm PVC edges.
  • Leg Assemblies: Legs are fabricated from 5/16” plate steel and include a curved profile with a square mounting plate. The bottom of each leg is fitted with a threaded weld nut and 1-7/8” black leveling glide.

Overall Dimensions
Round and Square: 30", 36"
Rectangular: 24" x 42"
Heights: 18", 25"

Fabrics

Finishes

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

SHO30 Hummingbird
Finishes - Sprayon

OPTIONS: 13

Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing). Actual colors may differ slightly from these representations.

Silver 809 (G1) *Porter & Kineticos Approved
Powder Coat Colors

OPTIONS: 20

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
