Malibu
Malibu premium modular wood construction shelving consists of starter and adder units allowing flexible shelving runs that are field-modifiable and can be reconfigured or added-to as collections change and grow. Available in oak or maple.
Vertical edges of Malibu end panels are bowed out to a maximum of an additional 3" width on each side. Detail includes top and bottom laminate inlay and 1/8" deep x 1/8" wide grooves painted black.
Available models and variations:
Single- or Double-Faced Units
Wood or Powder Coated Steel Adjustable Book, Picturebook or Magazine Shelves
Single-Faced Newspaper Rack Units
Cornice or Continuous Top
Mobile Units (Double-Faced only)
Available in 30, 42, 48, 60, 72, 84 and 90-inch Heights (Not all models are available in every height)
Cut Sheets
- Bookmark Shelving Cut Sheet (.pdf, 1.907 MB)
List Price Sheets
- Malibu Shelving List Price Sheet (.pdf, 373.714 KB)
- Available in oak or maple
- Back is MDF core; veneer face
- Top is veneer core; Veneer face; wood banding
- Valance included
- 16-gauge steel "Z" bracket locks the top sides and back into place
- Adjustable shelves are 1" thick; veneer core; veneer faces; wood banding
- End and intermediate panels are plywood core; veneer faces; wood banding. End panels are detailed with vertical edges bowed out to a maximum of and additional 3" on each side. Detail includes top and bottom laminate inlay and 1/8" deep x 1/8" wide grooves painted black. Intermediate panels are undetailed.
- Toe Assembly is box frame; veneer core; veneer faces; bolted to the end and intermediate panels.
- Available only in wood veneer finish.
- Steel shelves are available. Substitute "SB" for "V" in the model number prefix. Powder coated shelves are an opportunity to add an accent color to your bookcases. See our Powder Coat finish options.
- Mobile Malibu shelving units available.
- See our Finish Options.
- Sprayon Finishes can be applied to Malibu veneer units.
*leveling glides are optional. We pre-dill hole locations in all end and intermediate panels to accept leveling glides as a standard manufacturing procedure. If leveling glides are required, you must order the glides separately.
Model Number Examples
V22-4212 - 42"H x 12"D, Malibu, Single Face, Starter, Wood Shelves
V21-4212A - 42"H x 12"D, Bookmark (undetailed), Single Face, Adder, Wood Shelves
SB22-4212 - 42"H x 12"D, Malibu, Single Face, Starter, Steel Shelves
V22-4212P - 42"H x 12"D, Malibu, Single Face, Starter, Wood Picturebook Shelves
V22-4212MS - 42"H x 12"D, Malibu, Single Face, Starter, Wood Magazine Shelves
SB21-4212MSA - 42"H x 12"D, Bookmark (undetailed), Single Face, Adder, Steel Magazine Shelves

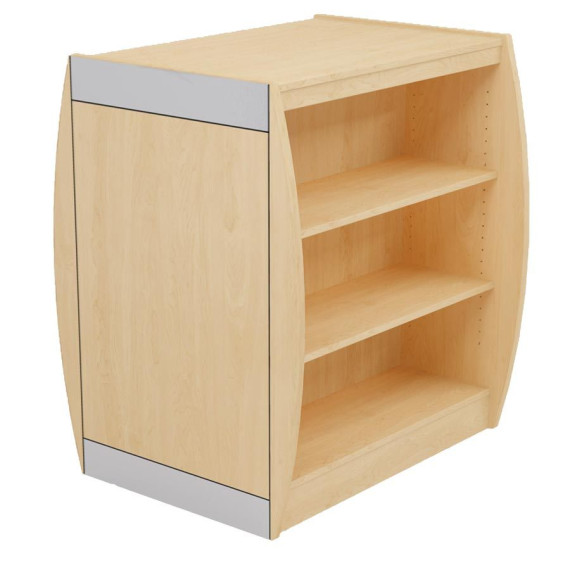

V22-4224-MOB - 42"H x 24"D, Malibu, Double Face, Starter, Wood Shelves, Mobile
V22-7212NS - 72"H x 12"D, Malibu, Single Face, Starter, Wood Newspaper Racks & Shelves
Finishes
Powder Coat Colors
OPTIONS: 20
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
Finishes - Sprayon
OPTIONS: 13
Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing). Actual colors may differ slightly from these representations.
General Laminates
OPTIONS: 87
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
Finishes on Oak - Standard
OPTIONS: 7
Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.
Finishes on Maple - Standard
OPTIONS: 6
Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.
