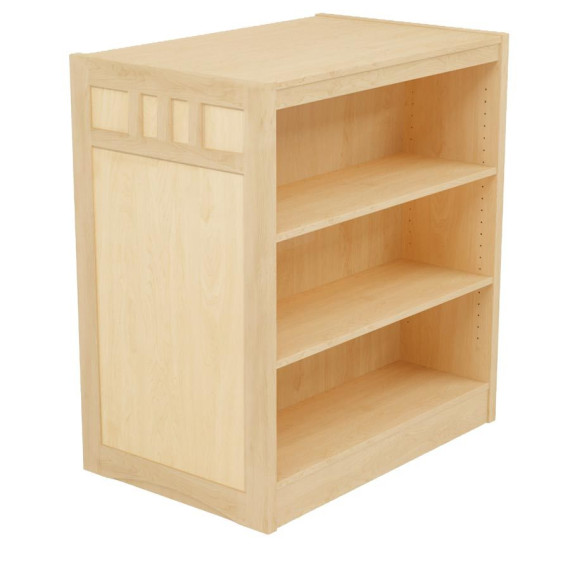

Charleston

Charleston premium modular wood construction shelving consists of starter and adder units allowing flexible shelving runs that are field-modifiable and can be reconfigured or added-to as collections change and grow. Available in oak or maple.

Charleston end panel detail is 2-1/2" wide oak overlay stiles and rails on a 1" thick panel. End panels 20" and wider have an applied 1/4" oak overlay rail set 4" below the top rail with (3) mullions running between it and the top rail.

Available models and variations:

Single- or Double-Faced Units

Wood or Powder Coated Steel Adjustable Book, Picturebook or Magazine Shelves

Single-Faced Newspaper Rack Units

Cornice or Continuous Top

Mobile Units (Double-Faced only)

Available in 30, 42, 48, 60, 72, 84 and 90-inch Heights (Not all models are available in every height)

See Full Description

Cut Sheets
List Price Sheets

  • Available in oak or maple
  • Back is MDF core; veneer face
  • Top is veneer core; Veneer face; wood banding
  • Valance included
  • 16-gauge steel "Z" bracket locks the top sides and back into place
  • Adjustable shelves are 1" thick; veneer core; veneer faces; wood banding
  • End and intermediate panels are plywood core; veneer faces; wood banding. End panel detail isis 2-1/2" wide oak overlay stiles and rails on a 1" thick panel. End panels 20" and wider have an applied 1/4" oak overlay rail set 4" below the top rail with (3) mullions running between it and the top rail.
  • Toe Assembly is box frame; veneer core; veneer faces; bolted to the end and intermediate panels.
  • Available only in wood veneer finish.
  • Steel shelves are available. Substitute "SB" for "V" in the model number prefix. Powder coated shelves are an opportunity to add an accent color to your bookcases. See our Powder Coat finish options.
  • Mobile Charleston shelving units available.
  • See our Finish Options.
  • Sprayon Finishes can be applied to Charleston veneer units.

*leveling glides are optional. We pre-dill hole locations in all end and intermediate panels to accept leveling glides as a standard manufacturing procedure. If leveling glides are required, you must order the glides separately.

Model Number Examples

V28-4212 - 42"H x 12"D, Charleston, Single Face, Starter, Wood Shelves

V21-4212A - 42"H x 12"D, Bookmark (undetailed), Single Face, Adder, Wood Shelves

SB28-4212 - 42"H x 12"D, Charleston, Single Face, Starter, Steel Shelves

V28-4212P - 42"H x 12"D, Charleston, Single Face, Starter, Wood Picturebook Shelves

V28-4212MS - 42"H x 12"D, Charleston, Single Face, Starter, Wood Magazine Shelves

SB28-4212MSA - 42"H x 12"D, Bookmark (undetailed), Single Face, Adder, Steel Magazine Shelves

V28-4224-MOB - 42"H x 24"D, Charleston, Double Face, Starter, Wood Shelves, Mobile

V28-7212NS - 72"H x 12"D, Charleston, Single Face, Starter, Wood Newspaper Racks & Shelves

Finishes

Silver 809 (G1) *Porter & Kineticos Approved
Powder Coat Colors

OPTIONS: 20

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.

SHO30 Hummingbird
Finishes - Sprayon

OPTIONS: 13

Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing). Actual colors may differ slightly from these representations.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.
