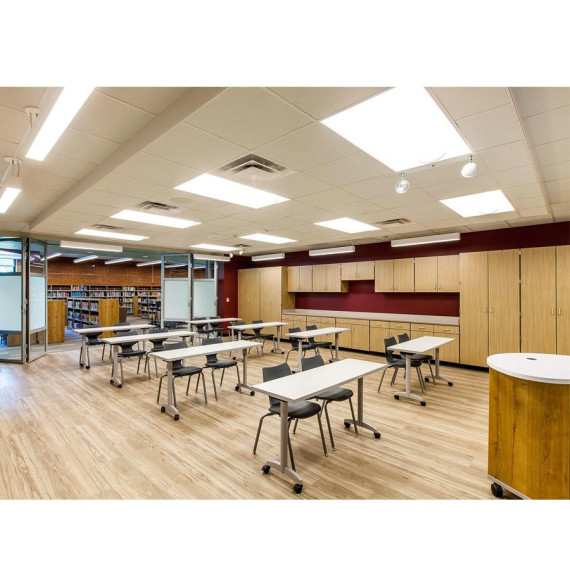

Derby tables with elements cabinets in the background
Log in or create an account to create a project board.
Derby

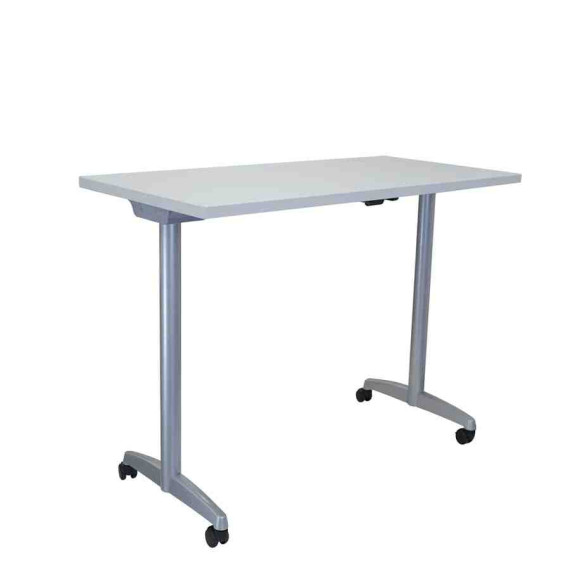

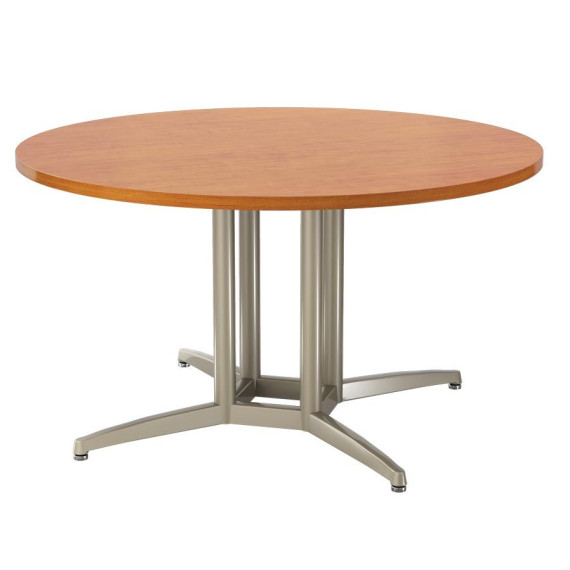

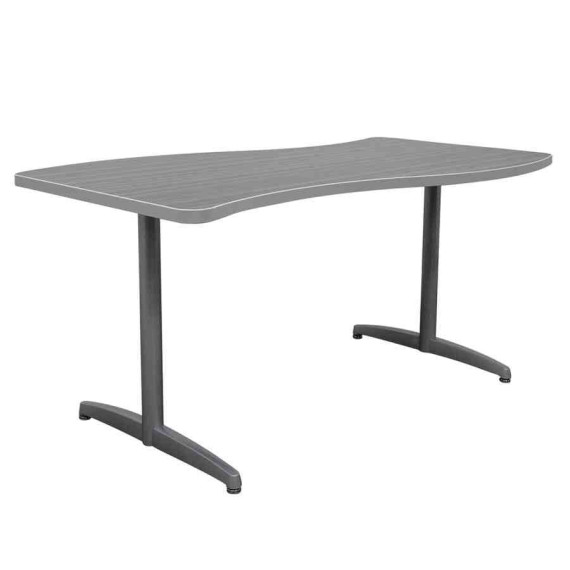

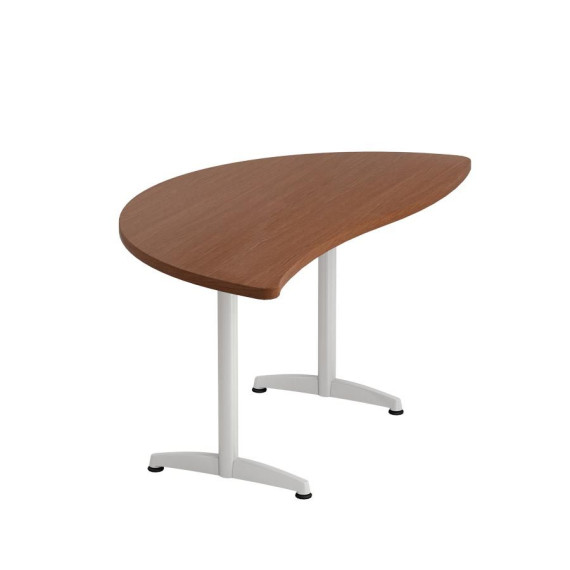

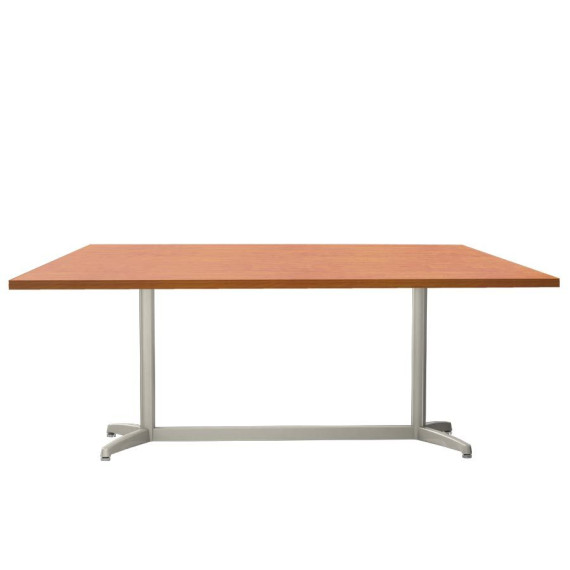

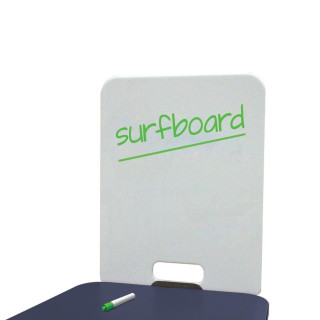

Derby x-base and t-base tables add classic styling in a modern look. Flip-top mechanisms available for some models, pairs well with Surfboard, casters and leveler extensions available in leu of standard leveling glides. Choose a laminate finish for the table top and powder coat color for frame. Multiple edge Surfboard options available to match the style of your space. Derby tables are available in multiple shapes, sizes and heights.
Cut Sheets
- Derby Cut Sheet (.pdf, 1.84 MB)
Forms
- Derby Installation & Assembly Guide (.pdf, 671.429 KB)
AutoCAD
- Derby X-Base AutoCAD (.zip, 10.807 MB)
- Derby T-Base 2 - AutoCAD (.zip, 5.283 MB)
- Derby T-Base 1 - AutoCAD (.zip, 12.782 MB)
Revit
- Derby Table - Sprocket (.zip, 671.456 KB)
- Derby Table - Flair (.zip, 960.751 KB)

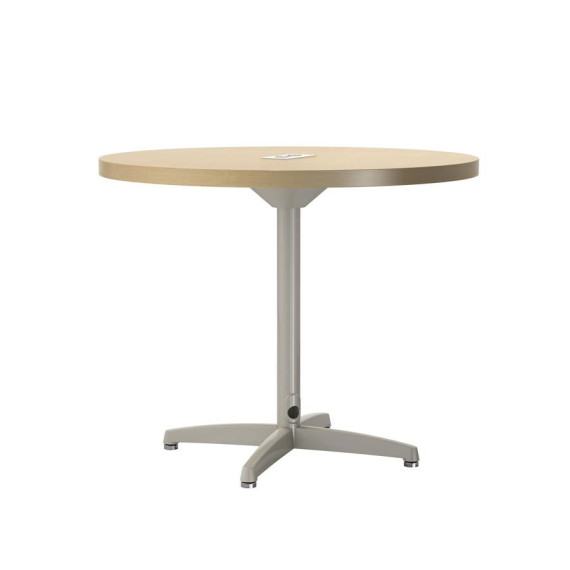

- Derby Café Table - Round (.zip, 795.526 KB)
- Revit Material Images (.zip, 10.215 MB)
List Price Sheets
- Derby Tables List Price Sheet (.pdf, 2.616 MB)
Instructions
- CET Instructions - Flip Top Tables (.pdf, 223.983 KB)
Hi-Res Images

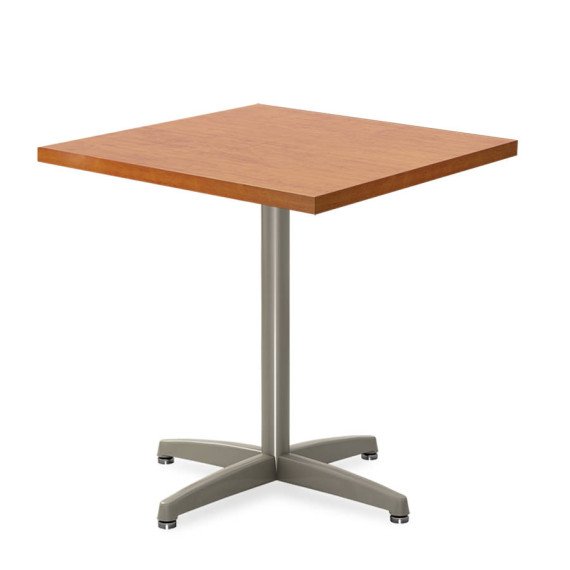

- Derby X-Base Square (.jpg, 50.778 KB)

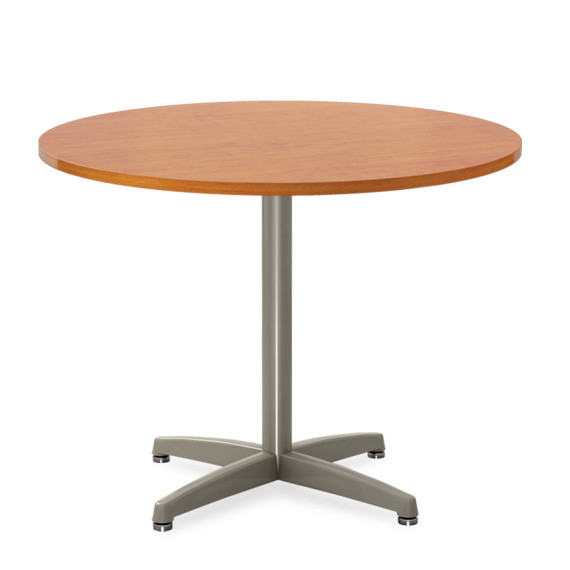

- Derby X-Base Round (.jpg, 73.956 KB)
- Cast aluminum base has 2-1/4" diameter column with bolted horizontal cast aluminum base and fabricated steel mounting plate .187" thick x 6"D x 8"W.
- Can be specified to be adjustable height via a spring clip mechanism, range is 9". (26-35”H is standard range)
- Tops are 1-1/4" thick, three-ply engineered wood construction with .050" high pressure laminate tops and a phenolic backer sheet.
- Edges available: 3mm PVC (C); 3mm hardwood (E); 5/8" wood (G); 1-1/4" hardwood bullnose (L); 5/8" wood bevel (J); 8mm Wood (F).

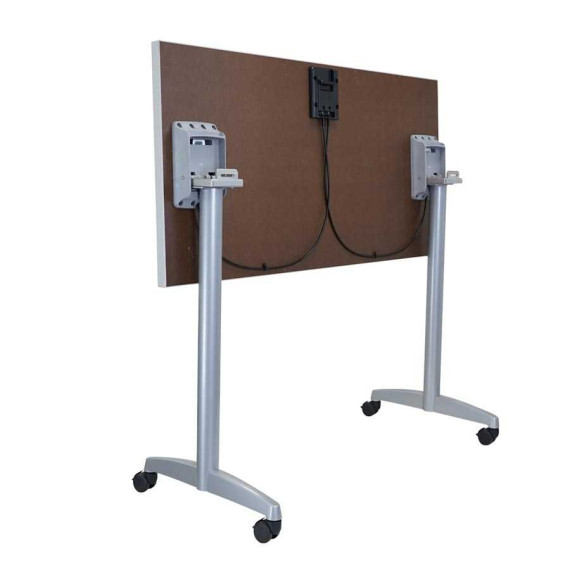

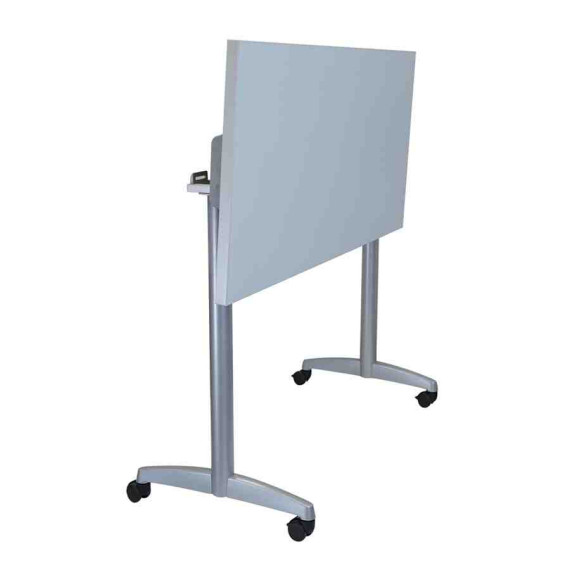

- Flip top mechanism: Two-part steel mechanism is joined via a pivot system. Upper component attaches to underside of work surface using 1" #12 wood screws. Lower component bolts to the leg frame via a threaded insert.
- Casters available
- Leveler extensions available
Overall Dimensions
Depths: 24", 30", 36", 48", 60"
Widths: 36", 48", 60", 72", 84", 96", 120", 144"
Diameters: 36", 42", 48", 54", 60"
"Sprocket" top table width: 60"
Height: 29", 36", 42"

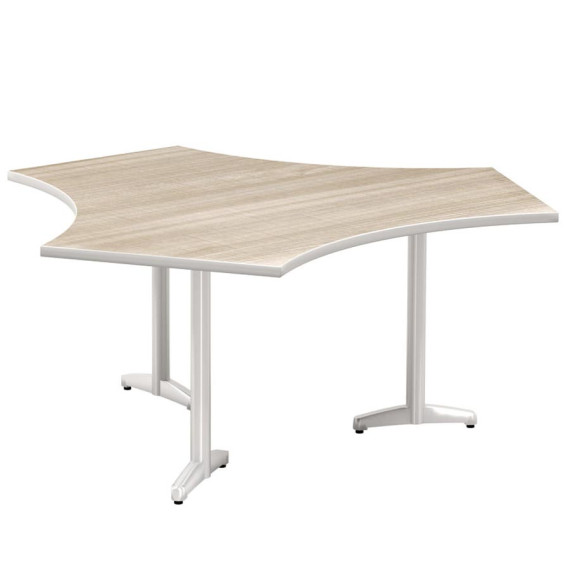

"Sprocket, Beanie and Flair" top tables have 2" radiused corners

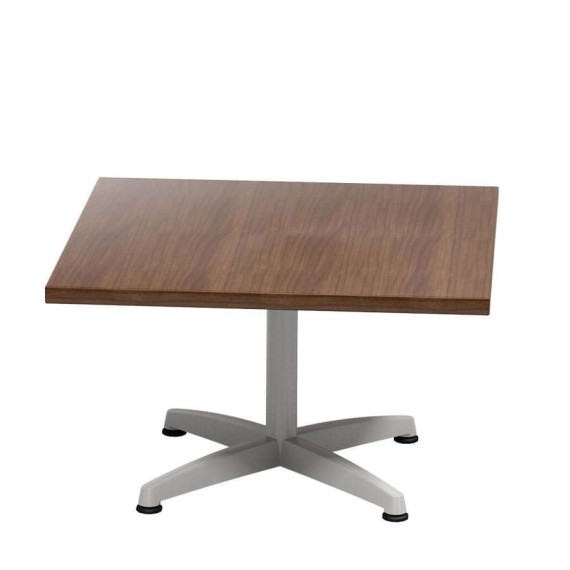

Occasional Tables Overall Dimensions
Depths: 24", 30"
Widths: 24", 30"
Diameters: 30", 36"
Heights: 18", 22"
Finishes
General Laminates
OPTIONS: 87
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
Standard PVC Selections
OPTIONS: 37
PVC Applies to front edges as well as work surface edges in 3mm PVC.
* Indicates available for work surfaces only.
Powder Coat Colors
OPTIONS: 20
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
