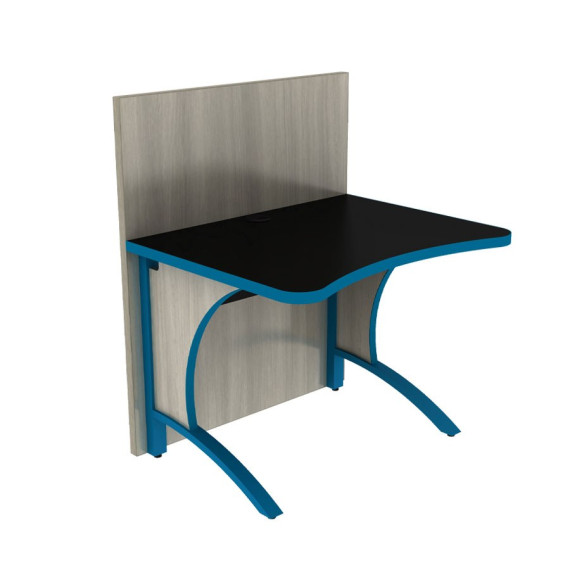

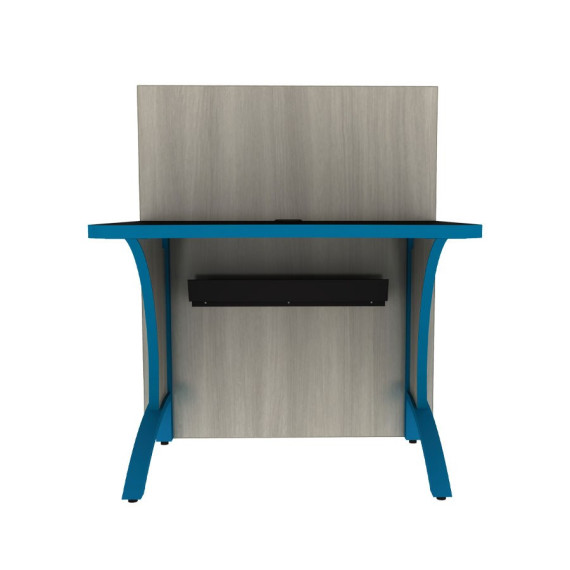

CESPC-C3138VIN-L-29-46 (front wire management detail)
Log in or create an account to create a project board.
Cirrus Esports Console

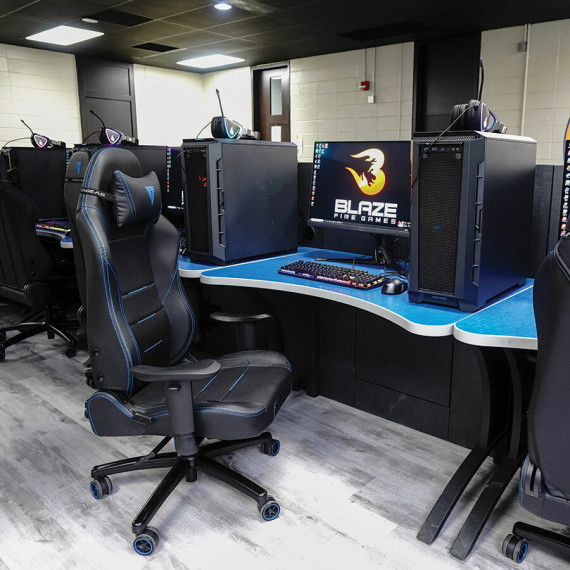

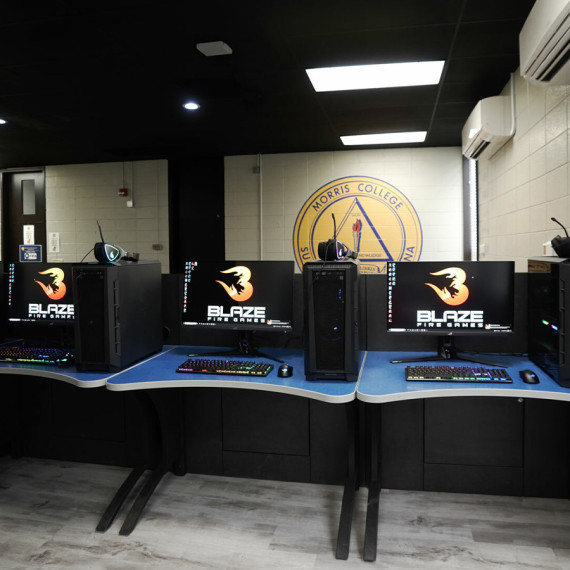

Cirrus Esports Consoles are designed to support your gaming facilities, working seamlessly within your infrastructure to provide the ultimate club or team experience. Paired with ergonomic adjustable height chairs, like Vertagear Gaming Chairs, ensuring a comfortable and healthy posture for gamers while they compete! 3 models of Cirrus Esports Consoles are available, our Cabinet Back model features top of the line wire management, designed to create runs for 3 v 3, 6 v 6 competitions seamlessly. The Panel back model, is a lite version of the the latter while still offering cable management. Our Curved model is unique to the gaming arena, as it creates more of a dome feeling, keeping gamers in their own space from the audience while still allowing for wire management. All models accept monitors on the back (spectator facing side) to allow for viewers to see gamers in action and view their personal stats.
Find your why: https://essentials.edmarket.or...
Videos
Cut Sheets
- Cirrus Esports Console Cut Sheet (.pdf, 9.103 MB)
Forms
- Cirrus Esports Console Finish Designator (.pdf, 177.568 KB)
- Table Top: Work surface is 1¼” thick, three-ply particleboard core with .050” high-pressure laminate top surface and a .030” phenolic backer. Corners on Concave/ Convex shape tops have a 3" radius. Curved unit tops have 1/8” radiused corners with an overall 62˚ radius.

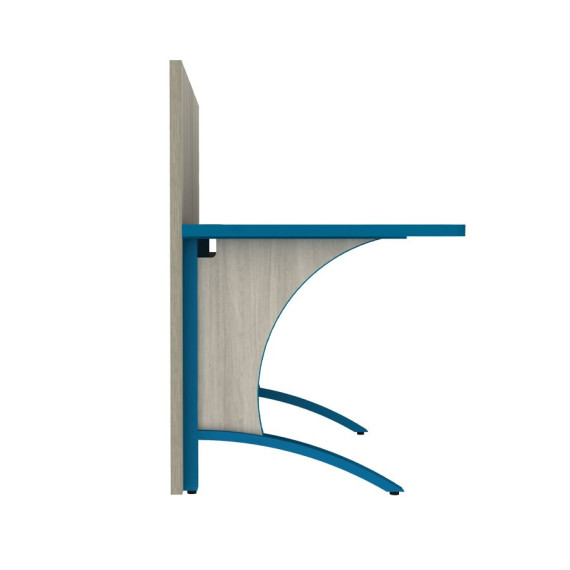

- Steel End Frames: Are weldments consisting of a 14 gauge 1-1/2” x 2” steel tubing vertical leg, a curved 1” x 2” steel tube leg, and a ¼” x 4” W steel mounting plate. Legs are fitted with adjustable glides. The weldment has a contoured 1-3/16” thick wood panel mounted within it for both structure and appearance.

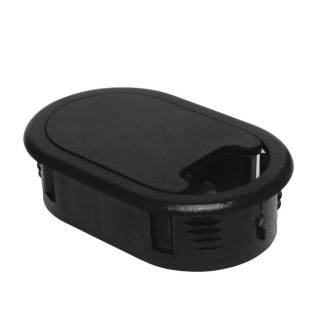

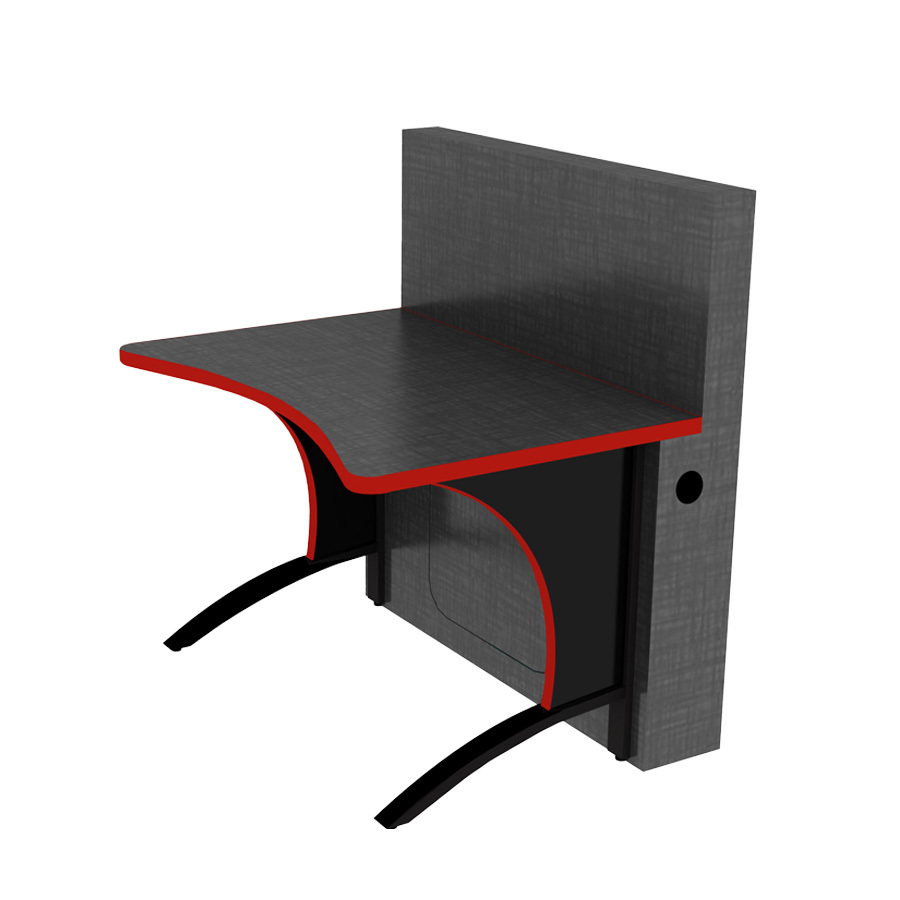

- Cabinet Console: Base Wire Box Cabinet is constructed with 11/16" thick panels with high-pressure laminate surfaces and 3mm PVC edges. Wire box door opening is 20”w x 17-1/4”H. A grommet is provided in the top to conceal and pass cabling into the cabinet. Bottoms are fitted with adjustable glides.

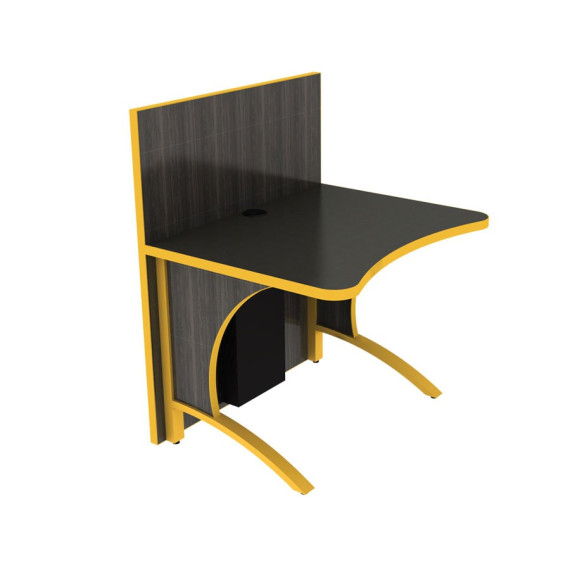

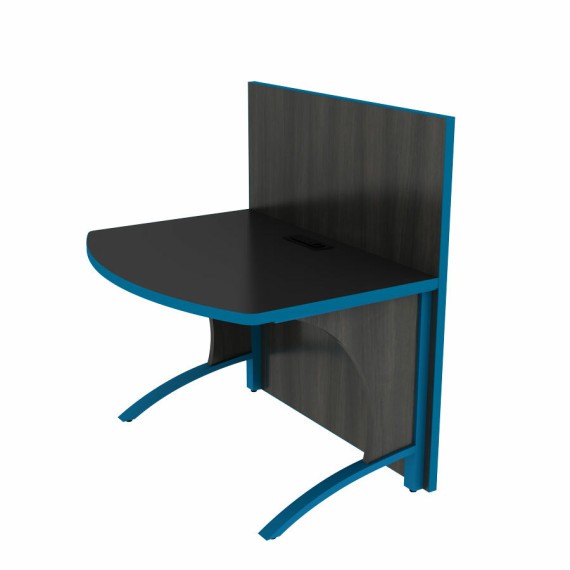

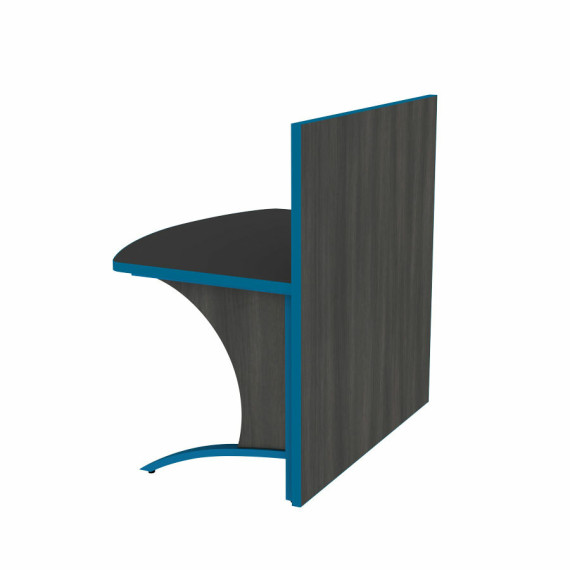

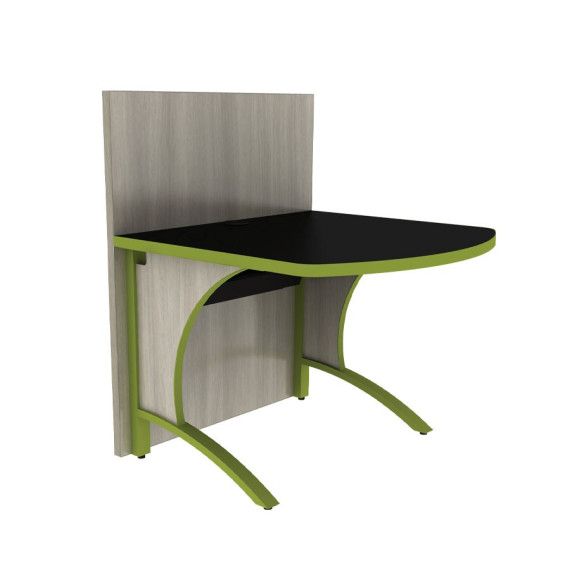

- Back Panel: Back panel is 1-1’4” thick three-ply particleboard core with .050” high-pressure laminate on both faces, with a 3mm PVC edge. 3”deep powder coated steel wire channel connects to the inside front of the panel to conceal wires.

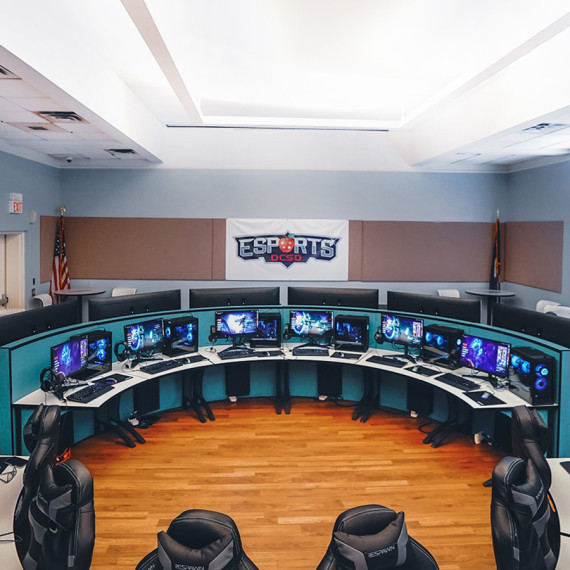

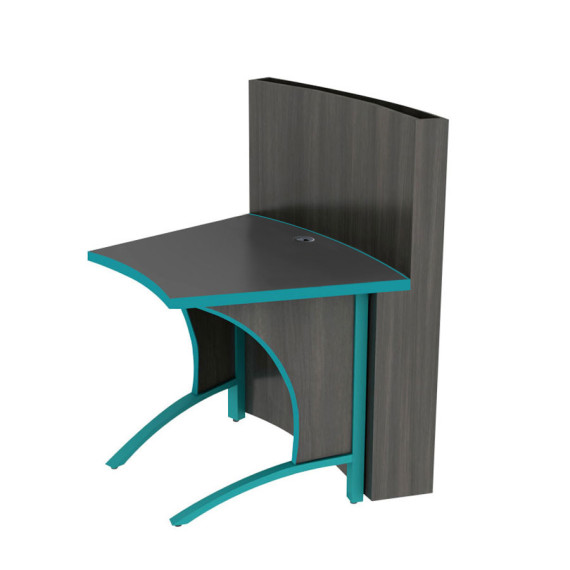

- Curved Back Console: Curved back is 4”thick built-up assembly that provides concealed wire passage from table to table. Curved assembly is covered with high-pressure laminate on all exposed faces. Bottoms are fitted with adjustable glides.

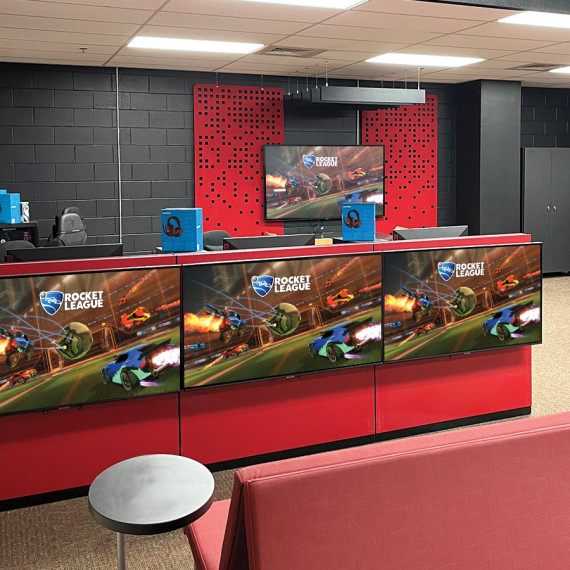

- Back Panel mounting surface suitable for attaching the mount for a flat screen monitor. (Monitor and mount not included.)

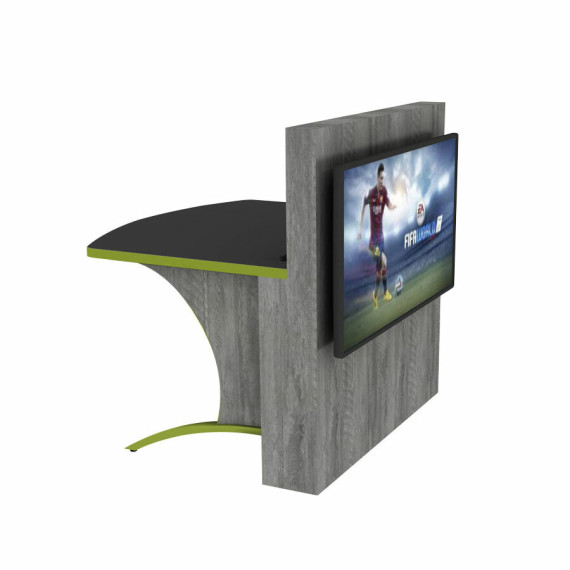

- Mounting a monitor to Cirrus Esports Consoles. You drill and bolt your mounting bracket for your Flat Screen Monitor to the outside face of your Cirrus Console back panel. Follow the mounting instructions for your monitor. Generally speaking, the monitor size should not exceed the width of your Cirrus esports console.
Overall Dimensions
Cabinet Console:
Depth: Convex: 40”; Concave: 34.75”
Width: 38"/44”
Worksurface height: 29”
Overall height: 46”
Back Panel:
Depth: Convex: 36.5”; Concave: 31.25”
Width: 30"/44”
Worksurface height: 29”
Overall height: 46”
Curved Console:
Depth: 34”
Width: 49.75”
Worksurface height: 29”
Overall height: 46”
Finishes
Laminate-Premium
OPTIONS: 20
Powder Coat Colors
OPTIONS: 20
Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
Melamines (TFL)
OPTIONS: 18
Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.
General Laminates
OPTIONS: 87
Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
Standard PVC Selections
OPTIONS: 37
PVC Applies to front edges as well as work surface edges in 3mm PVC.
* Indicates available for work surfaces only.
