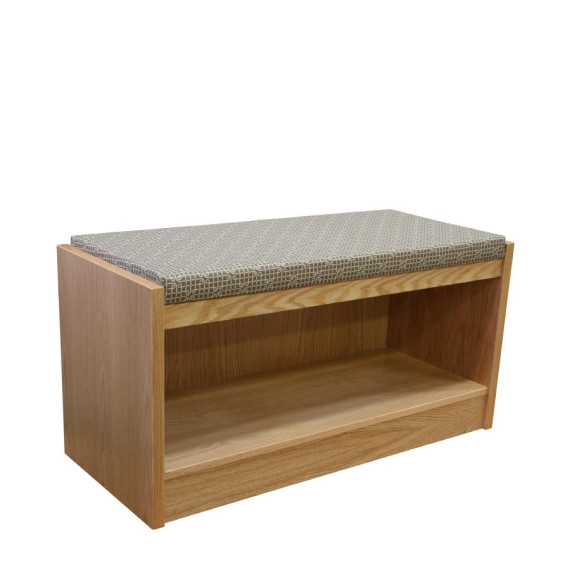

Bookstack Seat

Combined book storage and seating for the perfect reading nook!
Oak or Maple veneer in many standard finish options for 21-Series only
Sprayon Finishes available for 21-Series only
H11 denotes High Pressure Laminate (HPL) * Requires PVC selection
T11 denotes Melamine (TFL) * Requires PVC selection
Fabric for seat cushion

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

21-Series available in Veneer Only
End panels: are 1” nine ply hardwood plywood. All exposed edges are banded with 1/8” solid red oak with edges and corners radiused 1/8”

Cornice top: panel is 3/4” thick engineered wood. The cornice rail is 1” x 1-3/4” and is inset 1/8” from the front edge. The cornice is attached to the end panels with z-bars and bolts.The top is fitted with a 2” thick seat cushion.

Base: shelf is 3/4” thick engineered wood with select oak veneer face and 1/8” solid red oak front and rear band. The bottom shelf is attached with two screws.

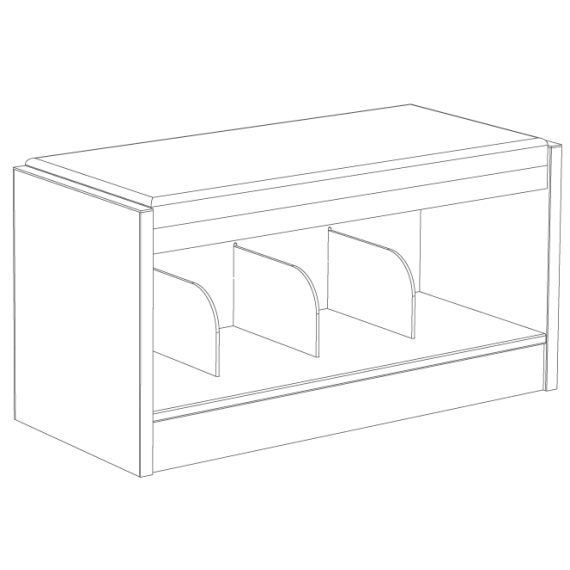

Picture Book Option: Bench back and base shelf receive dadoed grooves to receive picture book dividers that are ¼” thick-engineered wood. Three picture book dividers/unit.

Toe assembly: is a 4” frame with 1” nine ply plywood face and side rails. The toe assembly is bolted to the end and intermediate panels using 5/16”-18 machine bolts.

Back: A 3/4” thick back MDF core back with veneer faces is set into each end panel assembly and glued providing support for the top.

Example Model Number: 21-1816BS


H11-Series available in HPL Only
End panels: are 1” particle board core with high pressure laminate faces and PVC edge banding on exposed edges.

Cornice top: panel is 3/4” thick engineered particle board. The cornice rail is 1” x 1-3/4” and is inset 1/8” from the front edge. The cornice is attached to the end panels with z-bars and bolts.The top is fitted with a 2” thick seat cushion.

Base: shelf is 3/4” thick particle-board core with high pressure laminate face and PVC edge banding on front and back edges. The bottom shelf is attached with two screws.

Picture Book Option: Bench back and base shelf receive dadoed grooves to receive picture book dividers that are ¼” thick-engineered wood. Three picture book dividers/unit.

Toe assembly: Toe is particle board core, with high pressure laminate faces. The toe assembly is bolted to the end and intermediate panels using 5/16”-18 machine bolts.

Back: A 3/4” thick back MDF core back with melamine faces is set into each end panel assembly and glued providing support for the top.

Example Model Number: H11-1816BS


T11-Series available in TFL Only

End panels: are 1” particle board core with melamine faces and PVC edge banding on exposed edges.

Cornice top: panel is 3/4” thick engineered particle board. The cornice rail is 1” x 1-3/4” and is inset 1/8” from the front edge. The cornice is attached to the end panels with z-bars and bolts.The top is fitted with a 2” thick seat cushion.

Base: shelf is 3/4” thick particle-board core with melamine face and PVC edge banding on front and back edges. The bottom shelf is attached with two screws.

Picture Book Option: Bench back and base shelf receive dadoed grooves to receive picture book dividers that are ¼” thick-engineered wood. Three picture book divider/unit.

Toe assembly: Toe is particle board core, with melamine faces. The toe assembly is bolted to the end and intermediate panels using 5/16”-18 machine bolts.

Back: A 3/4” thick back MDF core back with melamine faces is set into each end panel assembly and glued providing support for the top.

Example Model Number: T11-1816BS


Applies to all Series
Seat Cushion: The seat cushion is made up of 2” high-density foam over 1/2” plywood and attached to the cornice top with screws. Fabric is COM

Mobile option: A steel chassis fits to the inside of the toe assembly and the caster assembly is attached to the end panel with 5/16-18 machine bolts. The steel chassis provides a formed flanges under the toe and end panels for extra support. The casters are 2” diameter, non locking. The mobile bookstack seat sits 1/2” off of the floor.

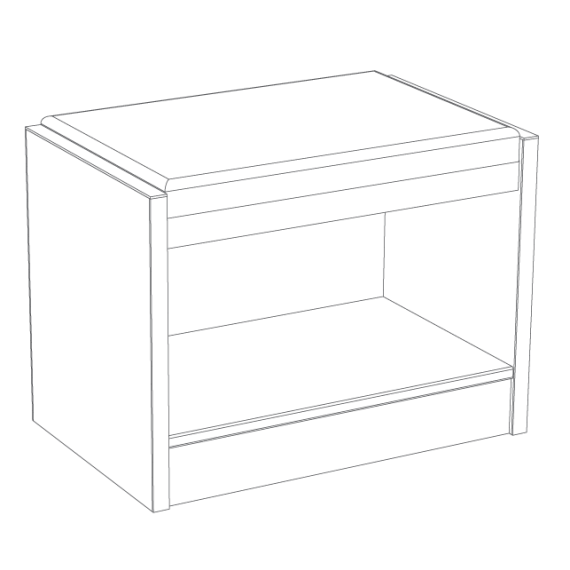

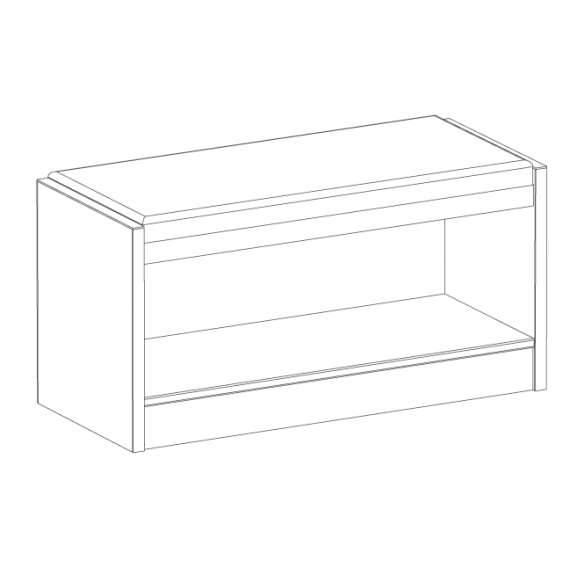

Overall Dimensions

Seat Height: 18"
Widths: 24", 37"
Depths: 12", 16"
* Mobile option not available for 24"W unit

Fabrics

Finishes

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

SHO30 Hummingbird
Finishes - Sprayon

OPTIONS: 13

Sprayon finishes applies to veneer. There is a one time charger per order/color (call for pricing). Actual colors may differ slightly from these representations.

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
