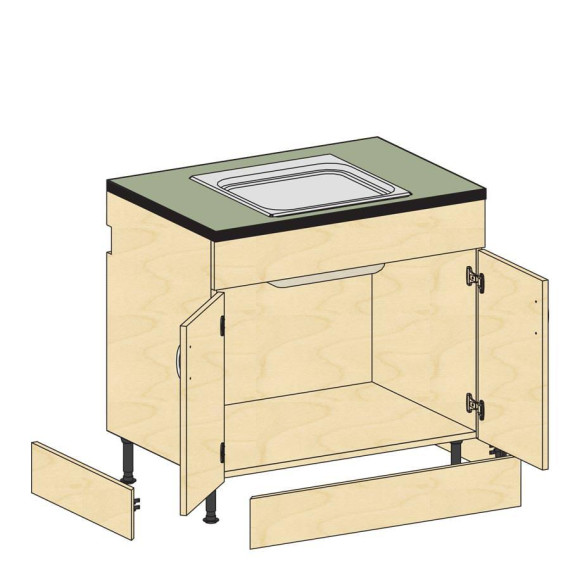

BSCT Sink cabinet with Toe

Add to My Project Board

Log in or create an account to create a project board.

Base Sink Cabinet - mediatechnologies

BSCV Sink Cabinet vanity

Add to My Project Board

Log in or create an account to create a project board.

Base Sink Cabinet

By Elements

The elements line contains just about "everything but the kitchen sink". The same is true of the Base Sink Cabinet selections. You get the cabinet - but no sink.

Sink cabinets are available with standard or continuous top, with or without backsplash, and yes, the sink is shown for representation only, sink is not included with the cabinet

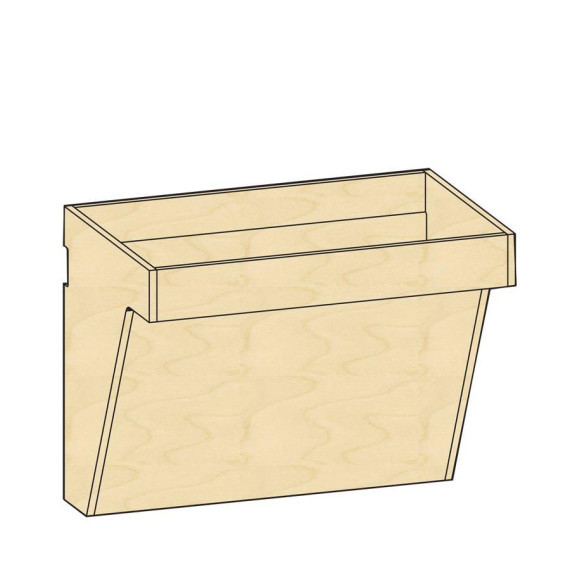

Model BSCV is ADA compliant and has a removable angled front panel which allows access to plumbing. No removable back.

See Full Description

Videos
AutoCAD
List Price Sheets
Instructions
Warranty Information

  • Cabinet construction available with 3/4" thick NU Green engineered wood side panels, sub-tops, vertical dividers and shelves. Base cabinet bottoms and all adjustable shelves over 36" in length are 1" thick NU Green engineered wood.
  • Dowel construction meets AWI Premium Standards.
  • 1/4" thick cabinet backs: capture in cabinet grooves.
  • Dowel pinned structural 3/4" stringers add rigidity.
  • Factory installed cabinet hangers: fully adjustable. Rated at 220 lbs. each. Recommended maximum load capacity for base cabinets with a standard top shall be 100 lbs. per linear foot.
  • Finished HPL top
  • Box finish is applied to all exterior cabinet faces; Available in TFL (melamine), HPL (laminate), Oak or Maple veneer.

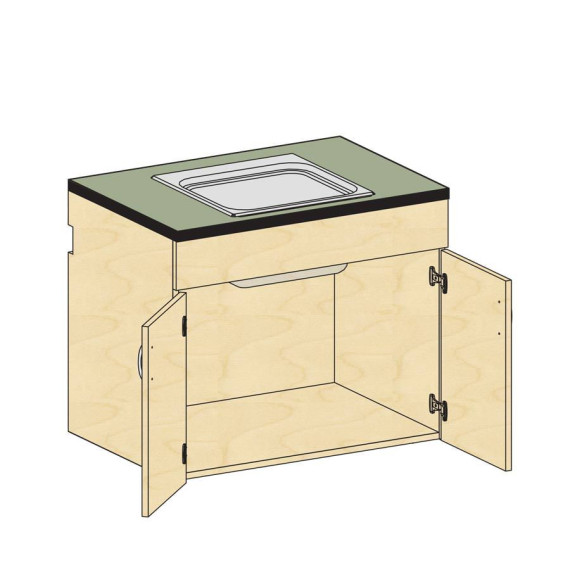

Base Sink Cabinet-BSC
Sink Cabinet
width 36", 42", 48"
depth 20"
height 34", 36"

Finishes

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

H1 5 Knuckle
Standard Door Hinges Selections

OPTIONS: 3

Hinge options options for Definitions, Elements and Rubix cabinets.
