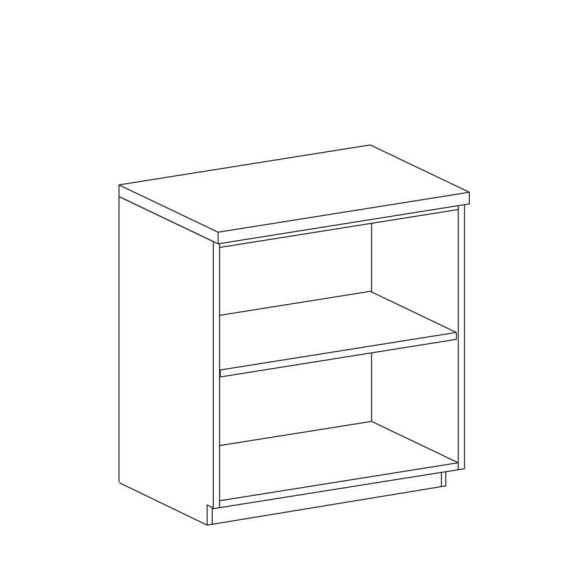

Base Open - mediatechnologies

SBOS

Add to My Project Board

Log in or create an account to create a project board.

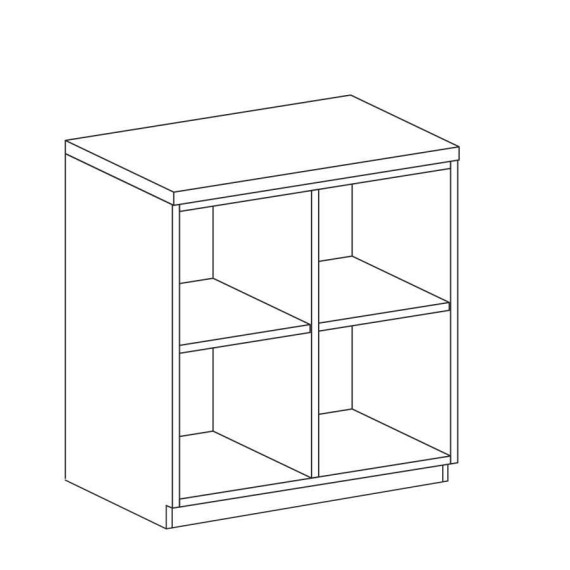

Base Open - mediatechnologies

SBOCB4

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

SBOCB4D2

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

SBOCB6

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

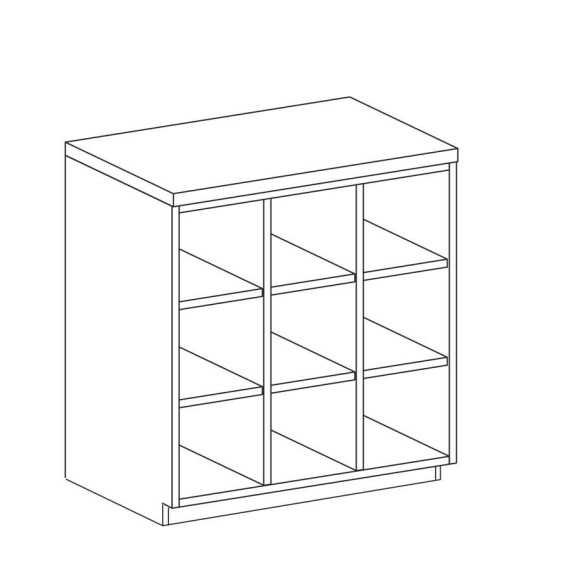

SBOCB9

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

SBOF

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

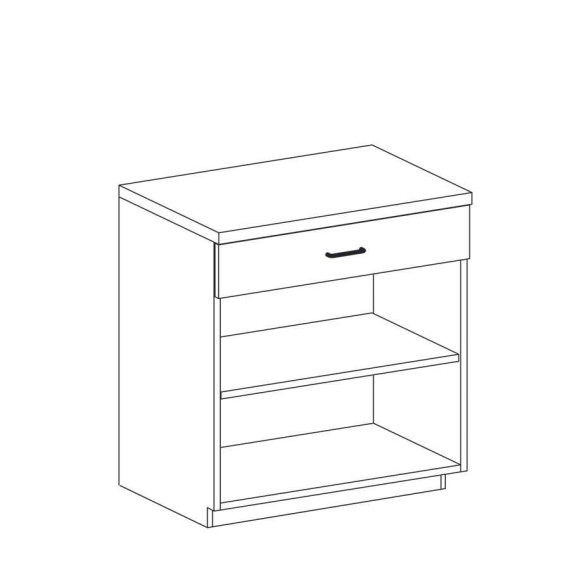

SBOSD

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

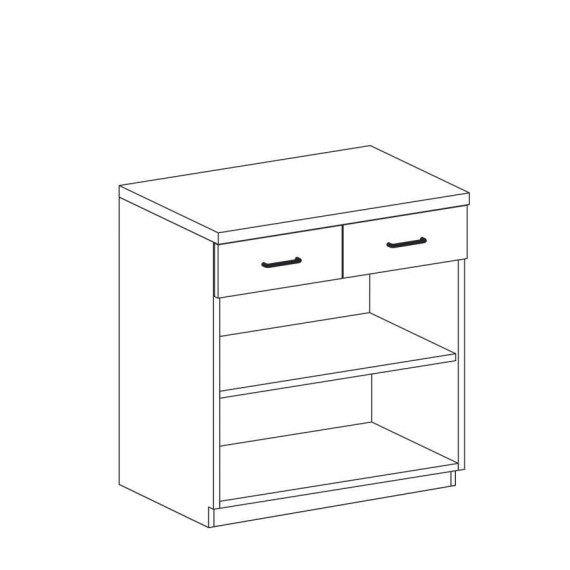

SBOSD2

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

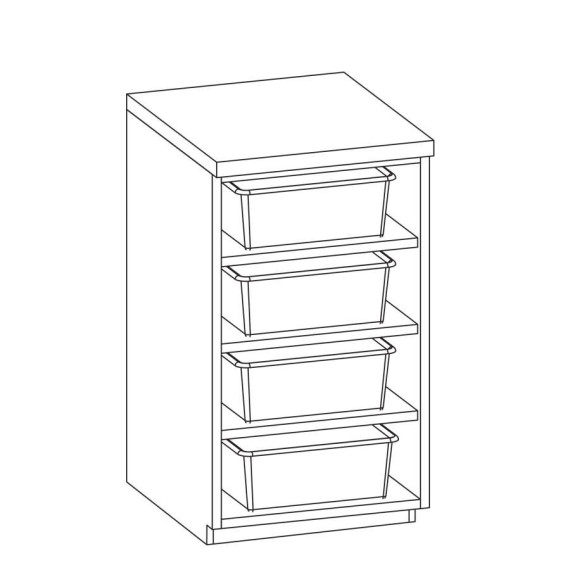

SBOT4B

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

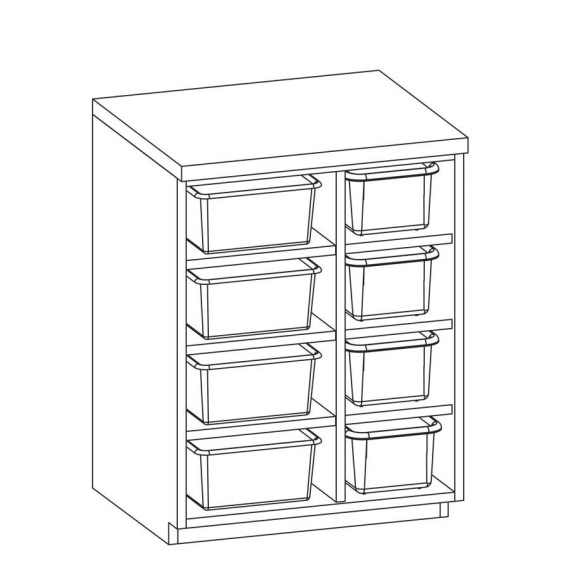

SBOT4B4C

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

SBOT6A

Add to My Project Board

Log in or create an account to create a project board.

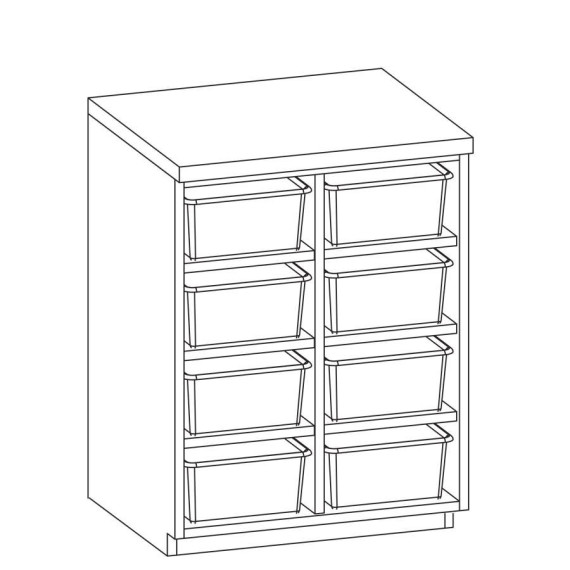

Base Open - mediatechnologies

SBOT8B

Add to My Project Board

Log in or create an account to create a project board.

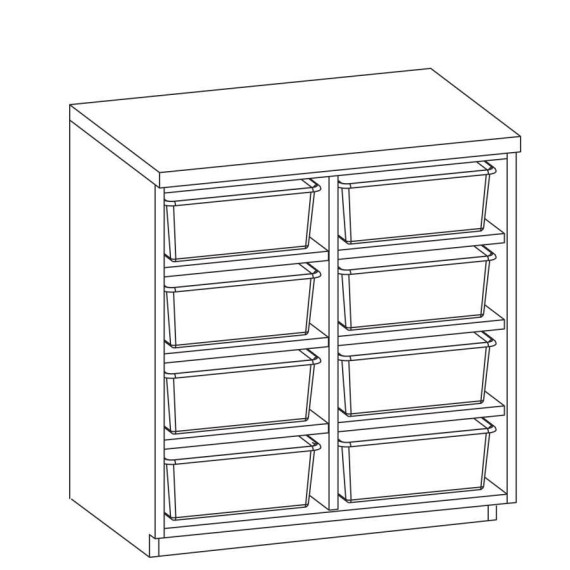

Base Open - mediatechnologies

SBOT8B2

Add to My Project Board

Log in or create an account to create a project board.

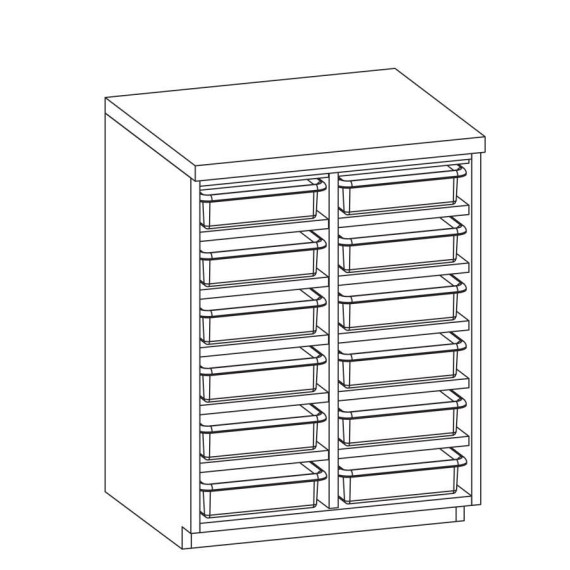

Base Open - mediatechnologies

SBOT12A

Add to My Project Board

Log in or create an account to create a project board.

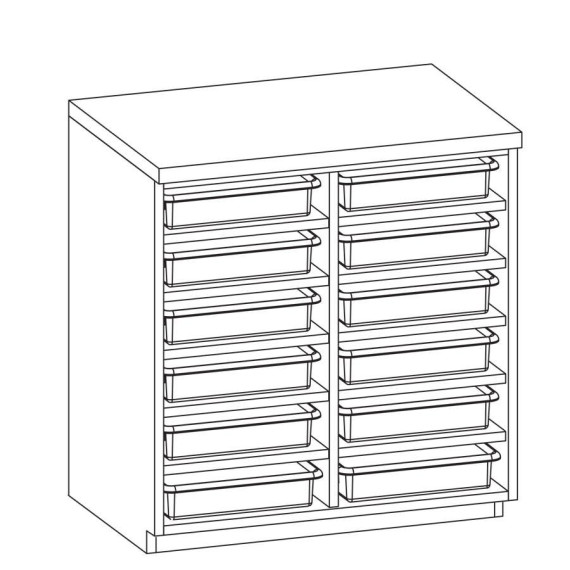

Base Open - mediatechnologies

SBOT12A2

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

SBOT12B

Add to My Project Board

Log in or create an account to create a project board.

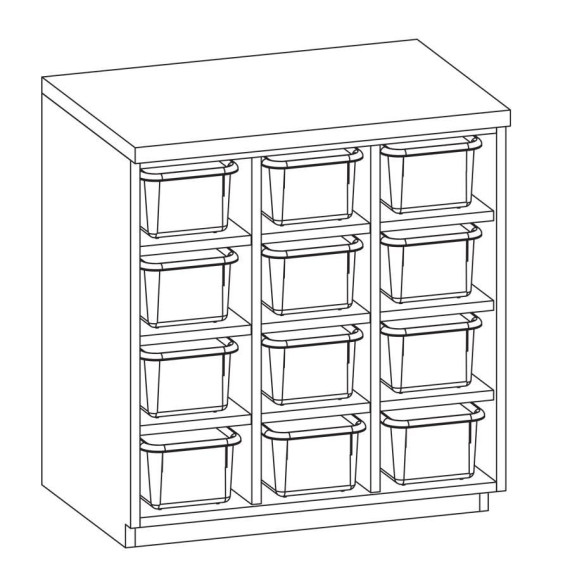

Base Open - mediatechnologies

SBOT12C

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

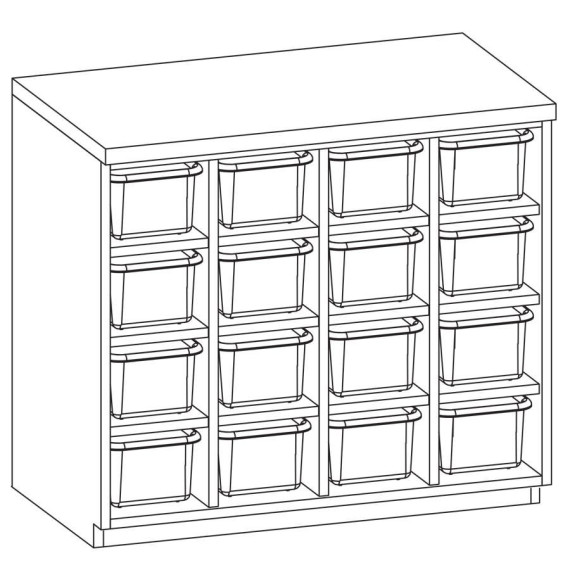

SBOT16C

Add to My Project Board

Log in or create an account to create a project board.

Base Open - mediatechnologies

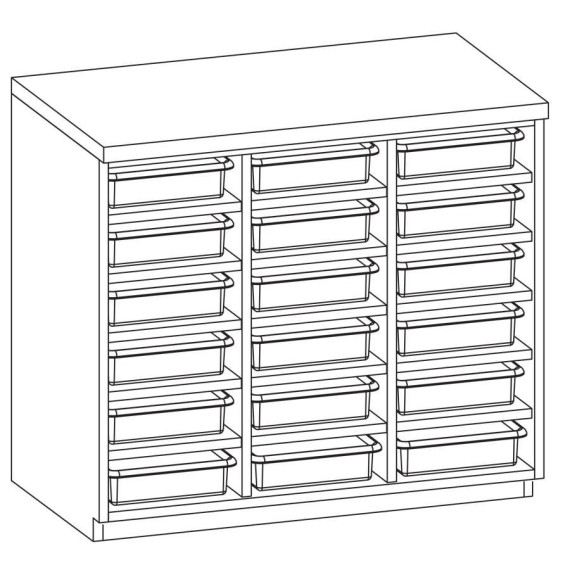

SBOT18A

Add to My Project Board

Log in or create an account to create a project board.

  • Cabinet construction available with 3/4" thick engineered wood side panels, sub-tops, vertical dividers and shelves. Base cabinet bottoms and all adjustable shelves over 36" in length are 1" thick engineered wood. Base cabinets do not include levelers.
  • Dowel construction meets AWI Premium Standards.
  • 1/4" thick cabinet backs.
  • Full 4-sided drawer boxes use:
    Veneer Finish Cabinets - Hardwood veneer core plywood.
    Laminate Finish Cabinets - 3/4" thick material with Classic Maple TFL finish and PVC edges.
  • Drawer slides are available in two options: A: 3/4 extension slide B: Full extension slide.
  • Shelves are adjustable on 32mm (1-1/4") increments.
  • Available with standard H1, H2, or H3 hinges.
  • Available with standard P1, P2, P3, P4, and P5 pulls.
  • Lock option: Cam locks are chrome finishes 5 disc dead bolt locks. The lock core is removable with a control key, permitting owner to easily change lock arrangements with out tools.
  • Tops are available in 2 options: Standard Top - Cabinet receives individual modular top constructed of 1-1/4" thick engineered wood with .050" high pressure laminate (HPL) and a phenolic backer sheet. Edges are 3mm PVC on front and .5mm (.20) PVC on sides and back. Continuous Top - Cabinet will be constructed with a sub-top only. Continuous tops are ordered as a separate line item. other tops are available (Epoxy, Solid surface, etc.)
  • Box finish is applied to all cabinet faces. Available in 4 options: TFL - Thermally fused laminate; HPL - High pressure laminate; Veneer Oak - Grade AA plain sliced maple veneers on 3/4" industrial engineered wood core; Veneer Maple - Grade AA plain sliced maple veneers on 3/4" industrial engineered wood core.
    * Note: Toes are left unfinished on base and tall cabinets.
  • Front finish is applied to cupboard doors and drawer fronts. Available in 5 options: TFL - Thermally fused laminate; HPL - High pressure laminate; Veneer Oak - Grade AA plain sliced maple veneers on 3/4" industrial engineered wood core; Veneer Maple - Grade AA plain sliced maple veneers on 3/4" industrial engineered wood core; Framed doors - Only available for doors.
    * Special veneers and exotic woods available upon request.
  • Front edge will be 3mm PVC for TFL and HPL finished fronts. Veneer fronts will receive 3mm wood in coordinating finish. Other edge options available, contact the factory for details.

Finishes

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
