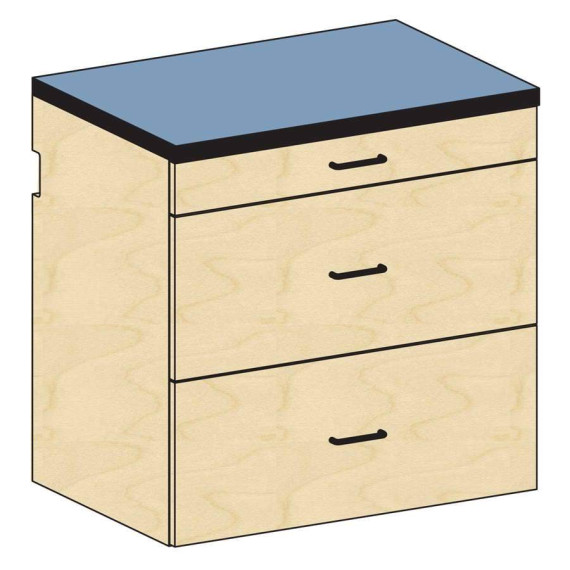

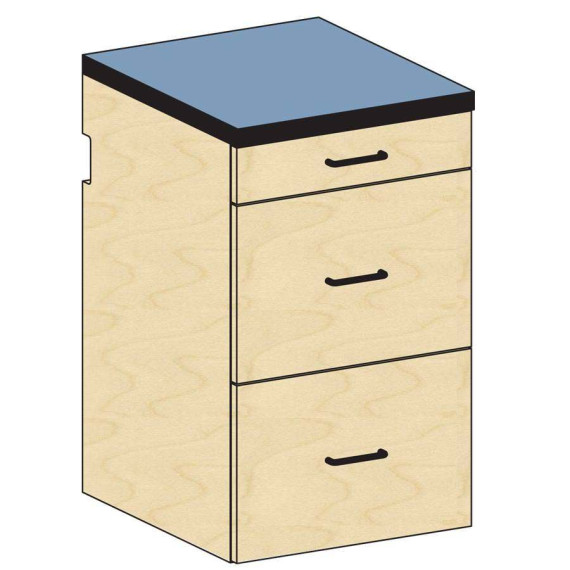

Base File Storage

By Elements
Videos
List Price Sheets

  • Cabinet construction available with 3/4" thick NU Green engineered wood side panels, sub-tops, vertical dividers and shelves. Base cabinet bottoms and all adjustable shelves over 36" in length are 1" thick NU Green engineered wood.
  • Dowel construction meets AWI Premium Standards.
  • 1/4" thick cabinet backs: capture in cabinet grooves.
  • Dowel pinned structural 3/4" stringers add rigidity.
  • Factory installed cabinet hangers: fully adjustable. Rated at 220 lbs. each. Recommended maximum load capacity for base cabinets with a standard top shall be 100 lbs. per linear foot.
  • Full 4-sided drawer boxes use 3/4" thick material with TFL finish and PVC edges.
  • Tops are available in 2 options: Standard top - cabinet receives individual modular top constructed of 1-1/4" thick engineered wood with .050" high pressure laminate (HPL) and a phenolic backer sheet. Edges are 3mm PVC on front and .5mm (.020) PVC on sides and back. OR CT: Continuous top - Cabinet will be constructed with a sub-top only. Continuous tops are ordered as separate line item.
  • Box finish is applied to all exterior cabinet faces; Available in TFL (melamine), HPL (laminate), Oak or Maple veneer.

Finishes

Natural Maple-NM 30
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen Finish.

Natural Oak - NO 30
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations. These finishes now have a 30 Sheen finish.

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless w/ Rio Texture (GI)
Melamines (TFL)

OPTIONS: 18

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

H1 5 Knuckle
Standard Door Hinges Selections

OPTIONS: 3

Hinge options options for Definitions, Elements and Rubix cabinets.
